Sielco EXC 3500GX

In stock

Original price was: $ 27,171.39.Current price is: $ 13,928.24.
Select options
Weight 30 kg
Dimensions 62 × 49 × 18 cm
Product can be split into multiple boxes

0
Ship Separately

0
specification

RF

RF Power
4000W

Connector
7/8 EIA 50 Ohm

Harmonics
>70 dBc

Spurious
>80 dBc

VSWR fold back
above 2.1

Frequency
87.5 – 108 MHz

Frequency
10/100KHz steps

Frequency selection
internal switches or menu system

Frequency control type
type dual speed Phase locked loop

Frequency Stability
+/- 200 Hz (fine adjustment available)

MPX input
BNC

MPX input response
+/- 0.3 dB 5 Hz to 100 kHz

MPX input level
-10db to +10dB (adjustable)

PSU Efficiency
87%

PA Board Efficiency

80%

Synchronous AM Noise
0.31% (at normal deviation)

Asynchronouse AM Noise
0.18% (at centre frequency of 97.7MHz)

STEREO

Subcarrier Generation
microprocessor generated (oversampled)

Pilot
19kHz +/- 1 Hz (adjustable)

Pilot generation
microprocessor generated (oversampled)

Output level
(BNC) 0dB

15 kHz filtering
>40dB at 19kHz

15kHz overshoot filter clipping
Clipping Selectable on or off

Spurious >80 kHz
>50dBr

Spurious>160 kHz
>80dBr

Stereo separation
>50dB (20Hz-15kHz)

LIMITER

Audio input levels
-10dB – +18dB for limiting

Audio input connectors
XLR balanced (RF shielded)

Input CMRR
>60dB

Audio distortion
<.1% at limiting 1 kHz (clarity mode)

Frequency response
20 Hz to 20kHz +/- 0.5dB (0 us Pre emphasis)

Limiter control range
>22dB (0 us pre emphasis)

Input impedance
10k Ohm

Pre emphasis
0

,

50 and 75 uS

Process modes
clarity and loud

Clipping
on or off

Other

Control system
Front Panel Controls & Alphanumeric Display

External control/monitor
15 way D-type

Size
483mm x 177mm x 650mm

Weight
30Kg

Voltage input
85-260 VAC (50-60Hz)

Total Power Consumption at rated power
6400W

Power connector
IEC

,

FUSED and switchable

Switched mode supplies approvals
UL/TUV/CE
features

• Professional performance

,

Extreme compactness

,

reliability and lightness easy maintenance. • High gain final power amplifier stage with very low power consumption• Fully microprocessor-controlled

,

menu-digital interface for diagnosis and monitoring of all parameters displayed on the LCD.• APC (automatic power control) and foldback protection

,

safe and reliable operation in every environmental condition. • Manufactured using the latest technologies for safe operation and easy maintenance. • Works perfectly with all Siel telemetry systems

Belar LP-1A

In stock

Original price was: $ 836.04.Current price is: $ 795.40.
Select options
Product can be split into multiple boxes

0
Ship Separately

0
specification

Model LP-1 Shielded Loop Antenna

Frequency Range
530 kHz to 1610 kHz in 3 bands

Diameter
33"

Mounting
1/2" NPT

Connector
BNC

Attenuation
30 dB

Permissible Wind Load
150 mph

,

100 mph with 3/4" ice

Belar AMMA-2

In stock

Original price was: $ 4,348.58.Current price is: $ 4,139.57.
Select options
Weight 4.5 kg
Product can be split into multiple boxes

0
Ship Separately

0
specification

Specifications:

RF Frequency Range
150 kHz to 30 MHz

RF Tuning Increments
1 kHz

RF Sensitivity
1 to 10 volts rms

RF Input Impedance
500 ohm or 50 ohm

,

internally connected

Accuracy
1.0%

Display Large
Large 3 digit LED for Negative Modulation

,

16-character alphanumeric LED display for menus and parameters

Frequency Response
±0.1 dB

,

30 Hz to 10.2 kHz

-3dB @ 11.9kHz

-100 dB @ 16 kHz

Audio Outputs

Audio Monitor
+10 dBm

,

600 ohm

,

balanced (XLR)

,

NRSC or Flat

Audio Test
2.5 V rms unbalanced (BNC)

Frequency Response
±0.1 dB

,

30 Hz to 10.2 kHz

Distortion
less than or equal to 0.1% @ 99% modulation

IMD (SMPTE

,

CCIF

,

DIM)
less than or equal to 0.1% @ 99% modulation

Signal to noise ratio
75 dB

Signal Delay
Test: 3 ms.

,

Meter: 90 ms.

Automatic Carrier Level Adjustment range
25-150%

Remote Meter Output
Jack for optional MP-17 analog remote meter panel

Remote Alarms
Relays for Loss of Modulation

Normal

,

Negative PPM

,

Positive PPM

Loss of Carrier

,

Remote

,

and General alarms.

Relays can be set NO or NC

Serial Interface
RS-232/RS-422

Unit Interface
Wizard Standard Interface

Power Requirements
20 watts

,

100-240 Vac 50/60 Hz

Dimensions
1 3/4"H x 14"D x 19"W (EIA rack mount)

Shipping Weight
10 lbs (4.5 kg)
features

MEASUREMENTS:

Positive Peak Modulation in Percent
Negative Peak Modulation in Percent
Positive Peaks-per-Minute Count
Negative Peaks-per-Minute Count
Positive Peak Average & Peak Min Modulation
Negative Peak Average & Peak Min Modulation
Positive Average/Peak Modulation Ratio
Negative Average/Peak Modulation Ratio
Normal Modulation Peaks-per-Minute Count
AM Noise rms detected in dB
Carrier Level
Carrier Reference
Carrier High in sliding 1 minute window
Carrier Low in sliding 1 minute window
Carrier Ratio High/Low in dB


SETTABLE PARAMETERS:

Positive & Negative Peak Modulation Indicator
Positive & Negative Peaks/Minute Indicator
Normal Modulation Indicator
Positive & Negative Peaks/Minute Duration
Audio Failure Alarm – Time & Modulation
Modulation Mode (Normal/Fixed/MDCL/IMOD)
MDCL Reference
Carrier Shift Alarm
Carrier Failure Alarm – Time & Level
Display Hold Time
Time Mode (Real/Past)
Infinite Hold
Audio Outputs (Test/Meter)
Modulation Calibrator
Tuning Frequency
Tuning Mode (Dir/Auto/Scan/Lock)
Tuning Frequency Increments

Belar FMMA-1

In stock

Original price was: $ 5,010.45.Current price is: $ 4,778.22.
Select options
Weight 5.4431 kg
features

MEASUREMENTS:

Total Peak Modulation in Percent
Peak Modulation expressed in kHz Deviation
Peaks-per-Minute Count
Loop-thru #1 Modulation
Loop-thru #2 Modulation
Peak Average Modulation
Average/Peak Modulation Ratio
Peak Minimum Modulation
AM Noise (with Option 02)
Synchronous AM Noise (with Option 02)
RF Level (with Option 02)
Pilot Modulation (requires FMS-2 or other source of filtered pilot)
Pilot Injection (requires FMS-2 or other source of filtered pilot)
SCA Injection (requires SCM-2 or other source of filtered SCA)


SETTABLE PARAMETERS:

Hold Time
Peak Modulation Indicator
Peaks-per-Minute Indicator
Display Hold
Display Blanking
Peaks-per-Minute Duration
Remote Enable
Audio Failure Alarm – Time & Modulation
Loop-thru #1 Gain (+20% Modulation)
Loop-thru #2 Gain (+20% Modulation)
Display Resolution (01% or 1%)
Time Mode (Real/Past)
Peak Weighting (8 time constants)
Calibrator (with Option 01)
specification

SPECIFICATIONS:

Accuracy:
0.1%

Display:
Large 4 digit LED for Total Modulation

,

16 segment alphanumeric LED display for menus and parameters

Input:
Composite or 650 Khz IF (with Option 01) for use with

Belar RFA-4

,

RFA-1A

,

or DC-4

,

or RF transmitter sample (with Option 01 and Option 02)

Option 01:
Precision FM Demodulator with Calibrator

Input:
650 kHz IF (From RFA-4

,

RFA-1A

,

DC-4

,

or Option 02)

Output:
Two 75 ohm buffered

,

composite

Signal/Noise:
> 95dB

Distortion (IM):
< 0.003%

Distortion (THD):
Unmeasureable (< 0.01%)

Option 02:
Down Converter and Synchronous AM Noise Detector

Frequency Range:
88 to 108 MHz Std. (Specify frequency)

Input:
1-10 volts rms

,

50 ohms

,

BNC connector

Outputs:
650 kHz IF

,

9-pin D connector to Wizard

Signal/Noise:
> 95 dB

AM Noise Range:
-17 to -80 dB

Synchronous AM Noise Range:
-17 to -80 dB
Ship Separately

0
Product can be split into multiple boxes

0

Belar FMHD-1

In stock

Original price was: $ 8,807.48.Current price is: $ 8,389.46.
Select options
Weight 6.8039 kg
features

Frequency Agile Antenna and High Level Inputs
RF Spectrum Analysis with Mask and Sideband Power Measurements
Metering of Analog Total

,

Pilot

,

L

,

R

,

L+R

,

and L−R
Metering of HD L

,

R

,

L+R

,

L−R Audio
Time Alignment Graphic Display Analysis ±16384 samples

,

±375 ms to ±256 samples

,

±5.8 ms Audio Polarity
Level Alignment Graphic Display Analysis ±20.0 dB
HD Control and Status Information
HD SIS and PAD Data
BER (Bit Error Rate) Measurements
specification

RF Inputs

Antenna Input
87.5 to 108 MHz Frequency Agile

75 Ω

,

F Connector

RF Inputs
87.5 to 108 MHz Frequency Agile

1 to 10 Vms

,

50Ω

,

BNC Connector

Composite Outputs

Analog (2)
+1.5 Vms@100%

,

75Ω Unbalanced

BNC Connector

Digital (2)
LVDS

,

100Ω

,

RJ-45

Audio Outputs

Analog (8 Channel Assignable)
+10 dBm

600Ω Balanced

,

XLR Connector

AES-3ID (6 Channel Assignable)
1.0 Vp-p

75 Ω

,

BNC Connector

Headphone (L/R Assignable)
1/4” Phone Jack

Computer Interface

RS-232
9 pin Male D Sub Connector

Ethernet 10/100 Base-T
RJ-45 Connection

Alarms

Relays(4 Assignable)
Form C

,

15 pin Female D Connector

Dimensions
2 EIA Rack Unit

Power Requirements
40 Watts

,

100-240V

,

50/60 Hz

Shipping Weight
15 lbs
Ship Separately

0
Product can be split into multiple boxes

0
The Solidyne 542APC combines a 5 Band universal audio processor including FM Analyzer + RDS & FM/HD/AM/TV/Streaming.

Solidyne 542APC

In stock

Original price was: $ 3,994.43.Current price is: $ 3,802.83.
Select options
Weight 5 kg
Product can be split into multiple boxes

0
Ship Separately

0
specification

Technical Specifications

Analog Input
600/10 K balanced XLR 50 dB CM Rejection 20-15 Khz. Input level selected by software in 1 dB steps. Sigma-Delta converters 24 bits / 192 Khz

Digital Input
Optional AES-3 digital balanced input Z=110 ohms. Automatic selection of 32

,

44

,

1

,

48

,

96 & 192 Khz with sample rate converter (128 dB Dynamic Range

,

-117 dB THD) to avoid jitter

Analog Output
600 balanced XLR

,

output level +4 dBm Sigma-Delta converters 24 bits / 192 Khz

Digital Output
Optional AES-3 digital balanced output

,

Z=110 ohms FS=48 or 96 Khz

,

selected by software

MPX Output
From 2 Vpp to 5 Vpp in 0.2 steps

Processing Technology
DSP (Digital Signal Processing). Total CPU power 2.700 MIPS

MPX Post-Processing
SuperModulation exclusive Solidyne technology

,

at 608 Khz oversampling. Fast clipper DC-10 Mhz wideband channel to avoid audible artifacts

Frequency Response
20-15.000 Hz +/-0.25 dB. Flat mode XLR out or digital AES-3 Out. Output without pre-emphasis

Harmonic Distortion (THD)
THD below 0.008 % (30-15 Khz

,

Flat Mode)

Noise
Dynamic Range= 95 dBA

Stereo Separation
75 dBA @ 1 KHz: > 65 dBA @ 30-15.000 Hz

Subsonic Filter
Chebyshev FC=20 Hz 25 dB rejection at 10 Hz

Asymmetry Canceling
Phase processing technology with Kahn-Bonello algorithms. Cancelling Factor=8:1

Linear Expander
Range=20 dB Attack & Release time software controlled

Gated Wide-Band AGC
Range=30 dB. Attack / Release time & Threshold controlled from LCD screen

Multiband Compressors
DSP controlled. Five Bands

,

Crossover= 24dB/oct Max compression = 30dB. Slope = 10:1

Compressors Attack/Release Time
Attack and Release controlled separately

IM Canceled Clipper
IM canceling factor : greater than 30 dB below 250 Hz

Fast Clipper
Four channels

,

absolutely alias free using DC-10 Mhz bandwidth channel

Density Equalizer
Four bands density equalizer with 15 dB range at the output of multiband compressors

Low pass filter
15 Khz digital low pass FIR filter

,

60 dB rejection at 19 Khz

Storage of Preset Settings
30 programs that can be changed on-air from PC computer using the 462dsp serial port

RS-232 PC control
RS232 serial port. It can be connected to USB bus with optional external adapter. Optional Ethernet bus connection

Super Modulation
MPX processing for stereo interleaving

,

allows for 130% L & R audio level at 100% modulation

RS-232 PC control
Yes. It includes free Windows 2000/XP software

AM FM compatible
The user can change the processor's AM/FM firmware chips. Only two socket mounted Flash EPROM IC's have to be replaced. Stereo coder is a separate module

Processing Bands and stages
Five processing bands / Nine processing stages

LCD Display
Blue color

,

LCD display with backlight. Graphic type Resolution 240 x 64

RDS Encoder
Optional built in RDS encoder

Power
90/127V and 190/230V; 50/60 Hz

,

selectable from rear panel

Dimensions
483 mm Wide 240 mm Deep

,

88 mm High
The TEM Opera plus 2400W FM 87,5÷108MHz transmitter uses 2×1400W amplifiers with 6^ generation LDMOS technology, practically unbreakable.

TEM Opera plus 1kW

In stock

Original price was: $ 6,125.17.Current price is: $ 4,801.44.
Select options
Weight 35 kg
Dimensions 60 × 74 × 40 cm
video

0
Product can be split into multiple boxes

0
Ship Separately

0
specification

General Specification

Operating voltage
230VAC ±15% min

Cooling
Forced air
</tr

Line power
< 1400VA
</tr

Operational temperature range
-5° to 50°C
</tr

Storage temperature range
-20° to 60°C
</tr

Output RF connector
7/16
</tr

Monitor RF connecto
BNC
</tr

Dimensions
485×133

,

2x625mm
</tr

Weight
15 kg
</tr
Radio Frequency

Frequency range
87.5 to 108MHz

Frequency setting
in 10KHz or 100 KHz steps

Setting mode
By keys on the front panel/Remote

Frequency stability
< ±500Hz/year

Frequency generation
PLL synthesizer

Modulation type
direct VCO frequency modul. F3

Nominal frequency deviation
±75KHz

Deviation linearity in all freq. range
±5KHz

RF output power
1000 W ± 1dB

Harmonics emission
<-70dBc

Spurious emission
<-95dBc

Modulation Capability

MONO (left and right)
30Hz to 15KHz

STEREO (L-R & AES-EBU)
30Hz to 53KHz
</tr

SCA + RDS
30Hz to 100KHz
</tr

Composite
Mono or Stereo + SCA + RDS
</tr
MPX Characteristics

Signal input
MPX

Composite Input impedance
10Kohm unbalanced
</tr

Input connector
BNC
</tr

Input level
Adjustable (Front/Remote)
</tr

Audio freq. response (30Hz to 60KHz)
< 0

,

5 dB
</tr

Modulation distortion
<0.2%
</tr

Signal to noise ratio
>75dB
</tr
Stereo Characteristics

Signal inputs
Left or Right – AES-EBU

Input impedance
600ohm (bal.) or 10k ohm

Input connectors
Canon XLR

Unbalance rejection
>40dB

Input leve
Adjustable (Front/Remote)

Pre-emphasis
75 or 50uS

Audio frequency response (30Hz to 15KHz)
<0.25dB

Audio frequency response (19KHz to 100KHz)
>50dB

Cross-talk between left and right channel
>50dB

Distortion at frequency deviation of 75KHz
<0.1%

Signal to noise referred at deviation of 75KHz
>75dB

Suppression of 38KHz
>50dB

Spurious suppression outside band
in according to ETS 300-384
Color

Black
features

Amplifier RF broadband technology with LD-Mos
Modulator with digital frequency synthesizer.
Stereo encoder

,

RDS

,

AES-ABU and Audio Automatic change-over
Protection against increased ROS antenna with automatic reduction of output power (fold-back)
Temperature protection with power reduction (fold-back)
LCD display for control of the main parameters
1 amplifier 1250W for maximum affidabilitàsu single radiator
Switching Power Supply for maximum reliability and efficiency (SMPS)
Air duct cooling
2 fans easily replaceable
Harmonic filter and directional coupler incorporated
Rack 19" 3 Units
Telemetry GSM & TCP / IP with Webserver – Headphone Jack
The TEM Opera plus 2400W FM 87,5÷108MHz transmitter uses 2×1400W amplifiers with 6^ generation LDMOS technology, practically unbreakable.

TEM Opera plus 2400W

In stock

Original price was: $ 8,110.78.Current price is: $ 7,721.78.
Select options
Weight 35 kg
Dimensions 74 × 62 × 40 cm
Product can be split into multiple boxes

0
video

0
Ship Separately

0
specification

General Specification

Operating voltage
230VAC ±15% min

Cooling
Forced Air

Line power
< 2800VA

Operational temperature range
-5° to 50°C

Storage temperature range
-20° to 60°C

Output RF connector
7/16”

Monitor RF connector
BNC

Dimensions
485×133

,

2x625mm

Weight
16 kg

Radio Frequency

Frequency range
87.5 to 108MHz

Frequency setting
in 10KHz or 100 KHz steps

Setting mode
By keys on the front panel/Remote

Frequency stability
< ±500Hz/year

Frequency generation
PLL synthesizer

Modulation type
direct VCO frequency modul. F3

Nominal frequency deviation
±75KHz

Deviation linearity in all freq. range
±5KHz

RF output power
2000 W ± 1 d B

Harmonics emission
<-70dBc

Spurious emission
<-95dBc

Modulation Capability

MONO (left and right)
30Hz to 15KHz

STEREO (L-R & AES-EBU)
30Hz to 53KHz

SCA + RDS
30Hz to 100KHz

Composite
Mono or Stereo + SCA + RDS

MPX Characteristics

Signal input
MPX

Composite Input impedance
10Kohm unbalanced

Input connector
BNC

Input level
Adjustable (Front/Remote)

Audio freq. response (30Hz to 60KHz)
< 0

,

5 dB

Modulation distortion
<0.2%

Signal to noise ratio
>75dB

Stereo Characteristics

Signal inputs
Left or Right – AES-EBU

Input impedance
600ohm (bal.) or 10k ohm

Input connectors
Canon XLR

Unbalance rejection
>40dB

Input leve
Adjustable (Front/Remote)

Pre-emphasis
75 or 50uS

Audio frequency response (30Hz to 15KHz)
<0.25dB

Audio frequency response (19KHz to 100KHz)
>50dB

Cross-talk between left and right channel
>50dB

Distortion at frequency deviation of 75KHz
<0.1%

Signal to noise referred at deviation of 75KHz
>75dB

Suppression of 38KHz
>50dB

Spurious suppression outside band
in according to ETS 300-384
features

ECO LINE – HIGH EFFICIENCY TRANSMITTER
Wideband circuits amplifiers with LD-Mos technology
Built-in exciter with digital frequency synthesiser
Stereo encoder

,

RDS

,

AES-ABU and Audio change-over built-in
Automatic fold-back ROS protection
Fold-back temperature protection
LCD display to check all operating parameters
2x1250W amplifier in only one heat-sink for highest reliability
Switching-mode Power Supply – Efficiency >95%
Sealed duct cooling air with blowers
Easy removable blowers
Harmonics filter & directional coupler built-in 3 unit 19” standard rack
GSM Telemetry & TCP/IP Webserver
Headphone jack on front panel
Color

Black
The TEM OPERA Plus 3500W is a high-performance 3.5kW FM broadcast transmitter designed for professional broadcasters.

TEM OPERA Plus 3500W

In stock

Original price was: $ 15,304.23.Current price is: $ 10,712.96.
Select options
Weight 80 kg
Dimensions 60 × 74 × 40 cm
Color

Black
features

ECO LINE – HIGH EFFICIENCY TRANSMITTER
Wideband circuits amplifiers with LD-Mos technology
Built-in exciter with digital frequency synthesiser
Stereo encoder

,

RDS

,

AES-ABU and Audio change-over built-in
Automatic fold-back ROS protection
Fold-back temperature protection
LCD display to check all operating parameters
3x1250W amplifier in only one heat-sink for highest reliability
3xSwitching-mode Power Supply – Efficiency >95%
Sealed duct cooling air with blowers
Easy removable blowers
Harmonics filter & directional coupler built-in 3 unit 19” standard rack
GSM Telemetry & TCP/IP Webserver
Headphone jack on front panel
specification

General Specification

Operating voltage
400VAC ±15% 3phases or

230VAC ±10% Monophase

Cooling
Forced air

Line power
< 4300VA

Operational temperature range
-5° to 50°C

Storage temperature range
-20° to 60°C

Output RF connector
7/8”

Monitor RF connector
BNC

Dimensions
485×310

,

8x625mm

Weight
55 kg

Radio Frequency

Frequency range
87.5 to 108MHz

Frequency setting
in 10KHz or 100 KHz steps

Setting mode
By keys on the front panel/Remote

Frequency stability
< ±500Hz/year

Frequency generation
PLL synthesizer

Modulation type
direct VCO frequency modul. F3

Nominal frequency deviation
±75KHz

Deviation linearity in all freq. range
±5KHz

RF output power
3000 W ± 1 d B

Harmonics emission
<-70dBc

Spurious emission
<-95dBc

Modulation Capability

MONO (left and right)
30Hz to 15KHz

STEREO (L-R & AES-EBU)
30Hz to 53KHz

SCA + RDS
30Hz to 100KHz

Composite
Mono or Stereo + SCA + RDS

MPX Characteristics

Signal input
MPX

Composite Input impedance
10Kohm unbalanced

Input connector
BNC

Input level
Adjustable (Front/Remote)

Audio freq. response (30Hz to 60KHz)
< 0

,

5 dB

Modulation distortion
<0.2%

Signal to noise ratio
>75dB

Stereo Characteristics

Signal inputs
Left or Right – AES-EBU

Input impedance
600ohm (bal.) or 10k ohm

Input connectors
Canon XLR

Unbalance rejection
>40dB

Input leve
Adjustable (Front/Remote)

Pre-emphasis
75 or 50uS

Audio frequency response (30Hz to 15KHz)
<0.25dB

Audio frequency response (19KHz to 100KHz)
>50dB

Cross-talk between left and right channel
>50dB

Distortion at frequency deviation of 75KHz
<0.1%

Signal to noise referred at deviation of 75KHz
>75dB

Suppression of 38KHz
>50dB

Spurious suppression outside band
in according to ETS 300-384
Ship Separately

0
Product can be split into multiple boxes

0
video

0
The TEM Opera plus 4000W transmitter uses 6 broadband 6th generation LDMOS amplifiers with 65:1 VSWR protection making it practically indestructible.

TEM Opera plus 4000W

In stock

Original price was: $ 17,522.06.Current price is: $ 12,265.44.
Select options
Weight 80 kg
Dimensions 62 × 74 × 60 cm
video

0
Product can be split into multiple boxes

0
Ship Separately

0
specification

General Specification

Operating voltage
400VAC ±15% 3phases or

230VAC ±10% Monophase

Cooling
Forced air

Line power
< 5600VA

Operational temperature range
-5° to 50°C

Storage temperature range
-20° to 60°C

Output RF connector
7/8”

Monitor RF connector
BNC

Dimensions
485×310

,

8x625mm

Weight
55 kg

Radio Frequency

Frequency range
87.5 to 108MHz

Frequency setting
in 10KHz or 100 KHz steps

Setting mode
By keys on the front panel/Remote

Frequency stability
< ±500Hz/year

Frequency generation
PLL synthesizer

Modulation type
direct VCO frequency modul. F3

Nominal frequency deviation
±75KHz

Deviation linearity in all freq. range
±5KHz

RF output power
4000 W ± 1 d B

Harmonics emission
<-70dBc

Spurious emission
<-95dBc

Modulation Capability

MONO (left and right)
30Hz to 15KHz

STEREO (L-R & AES-EBU)
30Hz to 53KHz

SCA + RDS
30Hz to 100KHz

Composite
Mono or Stereo + SCA + RDS

MPX Characteristics

Signal input
MPX

Composite Input impedance
10Kohm unbalanced

Input connector
BNC

Input level
Adjustable (Front/Remote)

Audio freq. response (30Hz to 60KHz)
< 0

,

5 dB

Modulation distortion
<0.2%

Signal to noise ratio
>75dB

Stereo Characteristics

Signal inputs
Left or Right – AES-EBU

Input impedance
600ohm (bal.) or 10k ohm

Input connectors
Canon XLR

Unbalance rejection
>40dB

Input leve
Adjustable (Front/Remote)

Pre-emphasis
75 or 50uS

Audio frequency response (30Hz to 15KHz)
<0.25dB

Audio frequency response (19KHz to 100KHz)
>50dB

Cross-talk between left and right channel
>50dB

Distortion at frequency deviation of 75KHz
<0.1%

Signal to noise referred at deviation of 75KHz
>75dB

Suppression of 38KHz
>50dB

Spurious suppression outside band
in according to ETS 300-384
Color

Black
features

ECO LINE – HIGH EFFICIENCY TRANSMITTER
Wideband circuits amplifiers with LD-Mos technology
Built-in exciter with digital frequency synthesiser
Stereo encoder

,

RDS

,

AES-ABU and Audio change-over built-in
Automatic fold-back ROS protection
Fold-back temperature protection
LCD display to check all operating parameters
6x8000W amplifier in only one heat-sink for highest reliability
3xSwitching-mode Power Supply – Efficiency >95%
Sealed duct cooling air with blowers
Easy removable blowers
Harmonics filter & directional coupler built-in 3 unit 19” standard rack
GSM Telemetry & TCP/IP Webserver
Headphone jack on front panel

TEM Opera plus 5000W

In stock

Original price was: $ 23,803.99.Current price is: $ 18,311.66.
Select options
Weight 80 kg
Dimensions 74 × 62 × 60 cm
Product can be split into multiple boxes

0
video

0
Ship Separately

0
specification

General Specification

Operating voltage
400VAC ±15% 3phases or

230VAC ±10% Monophase

Cooling
Forced air

Line power
< 7100VA

Operational temperature range
-5° to 50°C

Storage temperature range
-20° to 60°C

Output RF connector
7/8”

Monitor RF connector
BNC

Dimensions
485×310

,

8x625mm

Weight
55 kg

Radio Frequency

Frequency range
87.5 to 108MHz

Frequency setting
in 10KHz or 100 KHz steps

Setting mode
By keys on the front panel/Remote

Frequency stability
< ±500Hz/year

Frequency generation
PLL synthesizer

Modulation type
direct VCO frequency modul. F3

Nominal frequency deviation
±75KHz

Deviation linearity in all freq. range
±5KHz

RF output power
5000 W ± 1 d B

Harmonics emission
<-70dBc

Spurious emission
<-95dBc

Modulation Capability

MONO (left and right)
30Hz to 15KHz

STEREO (L-R & AES-EBU)
30Hz to 53KHz

SCA + RDS
30Hz to 100KHz

Composite
Mono or Stereo + SCA + RDS

MPX Characteristics

Signal input
MPX

Composite Input impedance
10Kohm unbalanced

Input connector
BNC

Input level
Adjustable (Front/Remote)

Audio freq. response (30Hz to 60KHz)
< 0

,

5 dB

Modulation distortion
<0.2%

Signal to noise ratio
>75dB

Stereo Characteristics

Signal inputs
Left or Right – AES-EBU

Input impedance
600ohm (bal.) or 10k ohm

Input connectors
Canon XLR

Unbalance rejection
>40dB

Input leve
Adjustable (Front/Remote)

Pre-emphasis
75 or 50uS

Audio frequency response (30Hz to 15KHz)
<0.25dB

Audio frequency response (19KHz to 100KHz)
>50dB

Cross-talk between left and right channel
>50dB

Distortion at frequency deviation of 75KHz
<0.1%

Signal to noise referred at deviation of 75KHz
>75dB

Suppression of 38KHz
>50dB

Spurious suppression outside band
in according to ETS 300-384
features

ECO LINE – HIGH EFFICIENCY TRANSMITTER
Wideband circuits amplifiers with LD-Mos technology
Built-in exciter with digital frequency synthesiser
Stereo encoder

,

RDS

,

AES-ABU and Audio change-over built-in
Automatic fold-back ROS protection
Fold-back temperature protection
LCD display to check all operating parameters
6x1250W amplifier in only one heat-sink for highest reliability
3xSwitching-mode Power Supply – Efficiency >95%
Sealed duct cooling air with blowers
Easy removable blowers
Harmonics filter & directional coupler built-in 3 unit 19” standard rack
GSM Telemetry & TCP/IP Webserver
Headphone jack on front panel
Color

Black

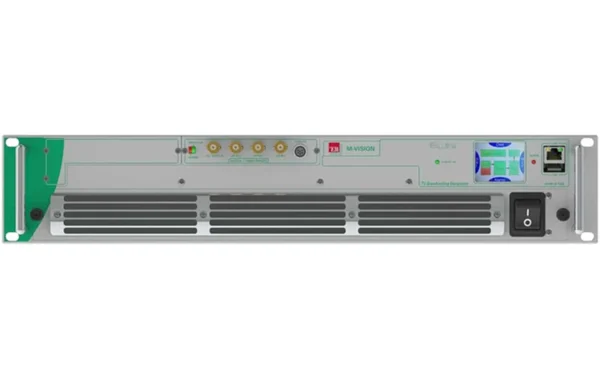

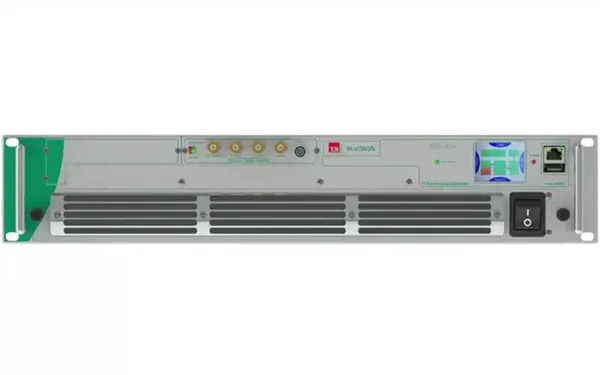

The TEM Dual-Cast 400W is a high-performance 400 Watt television transmitter, designed to deliver outstanding signal stability, energy efficiency, and reliability.

TEM Dual-Cast 400W

In stock

Call for price
Call for price
Weight 14 kg
specification

TRANSMITTERS

UHF digital output power:
up to 400 W rms @ MER 38 dB typ. (DVB

,

ISDB)

UHF analogue output power:
up to 600 W p.s.

VHF Digital output power:
up to 250 W rms @ MER 37 dB typ. (DVB

,

ISDB)

VHF analogue output power:
up to 665000 WW rpm.ss.

Frequency agility:
UHF Band IV and V or VHF Band III

Frequency resolution:
1 Hz

Pre-correction:
Adaptive

RF connector:
7/16 (f)

,

50 Ohm

MODULATOR

DVB-T/-H/-T2


Standard:
EN300744

,

EN302304

,

EN302755

,

TS101191

,

TS102773 (T2-MI)

,

TS102034

Inputs:
4x ASI BNC (f)

,

75 Ohm or 2x ASI BNC (f)

,

75 Ohm and 2x RJ45 TS oIP 10/100/1000


Switch seamless between ASI inputs.


Hierarchical and not hierarchical (DVB-T)

FFT:
1K (DVB-T2)

,

2K

,

4K

,

8K

,

8K ext. (DVB-T2)

,

16K & 16K ext. (DVB-T2)

,

32K & 32K ext. (DVB-T2)

Code rate:
All modalities available according to the standard


Block Short or Normal (DVB-T2)


DVB-T: Reed-Solomon (204

,

188)


DVB-T2: BCH

,

LDPC

Guard interval:
1/32

,

1/16

,

1/8

,

1/4

,

19/256 (DVB-T2)

,

19/128 (DVB-T2)

,

1/128 (DVB-T2)

Constellation:
QPSK

,

16QAM

,

64QAM

,

256QAM (DVB-T2). Rotated and non rotated (DVB-T2)

MISO processing:
Supported




ISDB-Tb


Standard:
ABNT NBR 15601

,

ABNT NBR 15603

Inputs:
4x ASI TS/BTS BNC (f)

,

75 Ohm or


2x ASI TS/BTS BNC (f)

,

75 Ohm and 2x RJ45 TS/BTS oIP 10/100/1000

FFT:
Mode 1 (2K)

,

Mode 2 (4K)

,

Mode 3 (8K)

Code rate:
1/2

,

2/3

,

3/4

,

5/6

,

7/8

Guard interval:
1/4

,

1/8

,

1/16

,

1/32

Hierarchical modulation:
Up to 3 layers

Constellation:
QPSK

,

16QAM

,

64QAM

Time interleaver:
Fully supported

Partial reception:
Supported




DAB/DAB+/T-DMB


Standard:
EN 300401

,

ETS 300 799

Inputs:
4x ETI (NI[G703]

,

NA5376[G704] or NA5592[G704]) BNC (f)

,

75 Ohm

Transmission modes:
Mode I

,

II

,

III

,

IV (Automatically detected from the ETI stream

,

or user selectable)

Operation:
MFN or SFN operations




ATSC


Standard:
A/53

,

A/110

Inputs:
4x ASI / SMPTE-310M BNC (f)

,

75 Ohm or


2x ASI / SMPTE-310M BNC (f)

,

75 Ohm and 2x RJ45 TS oIP 10/100/1000

Modulation:
8-VSB

Input bit rate:
19.39 Mbit/s

Bandwidth:
6 MHz

Max processing delay:
Up to 1 second (programmable)




Analogue


Standard:
B

,

G

,

D

,

K

,

M

,

N

,

I

Inputs:
Video BNC (f)

,

75 Ohm

,

audio Tini-QG “Mini XLR”

,

6 Pin (m)

,

600 Ohm

Color system:
PAL

,

NTSC

SATELLITE RECEIVER (Option)

Standard:
ETSI EN 300 421 (QPSK) (DVB-S)


ETSI EN 302 307 (QPSK

,

8PSK

,

16APSK) (DVB-S2)


ETSI EN 50083-9 (ASI)


ETSI EN 50221 (Common Interface)

DVB-S2:
VCM

,

CCM

,

Multi Stream and Single Stream

,

Normal & Short FEC frames

Symbol rate:
1 – 45 Msym/s (DVB-S)


2 – 45 Msym/s (DVB-S2)

Constellation:
QPSK

,

8PSK

,

16APSK

FEC:
Automatic

,

all modalities available according to the standard


Block Short or Normal


DVB-S: Reed-Solomon (204

,

188)


DVB-S2: BCH

,

LDPC

Roll–Off:
0.2

,

0.25

,

0.35

Input connector:
F (f)

,

75 Ohm

Frequency:
L–band 930÷2250 MHz

LNB control voltage:
Off

,

+13/18 Vdc

,

22 kHz

,

0.25 A (overload protection)

RF input level:
40 ÷ 100 db/μV (with attenuator)

Output connector:
BNC (f)

,

75 Ohm

Modality:
188 bytes

Max input bit rate:
80 Mbps (CAM limit: 72 Mbps)

CAM interface:
PCMCIA DVB-CI Common Interface

CA mode (Conditional Access):
Multicrypt

,

Simulcrypt

CAS support:
Mediaguard

,

Viaccess

,

Irdeto

,

Conax

,

BISS with Professional multiprogram CAM (descrambling of up to 24 Elementary Streams) Betacrypt

,

Cryptoworks

,

Nagravision with standard consumer CAM (descrambling of up to 4 services)

GPS / GLONASS (Option)

Input connector:
N (f)

,

50 Ohm

Input/Monitor output 10 MHz:
BNC (f)

,

75 Ohm

Input/Monitor output 1 PPS:
BNC (f)

,

75 Ohm

Phase noise:
-140 dBc/Hz @ 10 kHz


-150 dBc/Hz @ 100 kHz

Stability:
1e-12 / 24 H with disciplined OCXO

Hold-over stability:
5 μs after 5 hours (optional 1 μs after 24 hours)

MECHANICAL

Chassis:
2U rack 19”

Width:
482 mm

Height:
87.1 mm

Depth:
460.5 mm without fans

Weight:
14 Kg

CONTROLS

TFT touchscreen


Web GUI


SNMP


GPIO


ENVIRONMENTAL

Operating temperature range:
-5°C ÷ 40°C

Max. relative humidity:
90% non condensing

Max. operating altitude:
2500 m. a.s.l. (>2500 m. optional)

ELECTRICAL

Power supply:
Single Phase 100÷240 V~ 50/60 Hz

,

IEC320 C20 Plug

Efficiency:
Up to 40% efficiency in digital (UHF models)
Ship Separately

0
Color

Black
features

Compact 2U 19 Rack chassis
Output Power up to 400W rms in digital or up to 600W p.s. in analogue
High efficiency broadband amplifier technology
DVB-T/H/T2

,

ISDB-T/Tb

,

DAB/DAB+/T-DMB

,

ATSC

,

PAL

,

NTSC modulations fully supported
Embedded Re-Multiplexer/Layer Combiner/TS to BTS (188 to 204 byte) converter for ISDBTb
Adaptive pre-correction circuits
Powerful echo canceller when OneDriver is used as an on-channel repeater
Optional high-performance additional echo cancellation circuit
On-board high stability GPS / GLONASS receiver with battery
Flexible input interfaces:- 4 x ASI inputs (TS

,

BTS

,

T2MI

,

SMPTE-310M) + Analog input- 2 x ASI inputs and 2 x Gigabit Ethernet- 1 x DVB-S/S2 Satellite Receiver input- 1 x RF input
SNMP

,

Web Interface and Touch Screen display
Product can be split into multiple boxes

0
Robots Meta Tag

0
Main Store for Canonical Url

0
video

0
Main Category for SEO

0

TEM Opera Plus 10W

In stock

Original price was: $ 2,566.19.Current price is: $ 1,770.78.
Select options
Weight 13 kg
Dimensions 56 × 65 × 12 cm
Product can be split into multiple boxes

0
video

0
Ship Separately

0
specification

General Specification

Operating voltage
100V ÷ 240V

Cooling
Forced air

Line power
 90-250V AC

Operational temperature range
-5° to 50°C

Storage temperature range
-20° to 60°C Output

RF connector
“N”

Monitor RF connector
BNC

Dimensions
485×44

,

4x625mm

Weight
6/8 kg

Radio Frequency

Frequency range
87.5 to 108MHz

Frequency setting
in 10KHz or 100 KHz steps

Setting mode
By keys on the front panel/Remote

Frequency stability
< ±500Hz/year

Frequency generation
PLL synthesizer

Modulation type
direct VCO frequency modul. F3

Nominal frequency deviation
±75KHz

Deviation linearity in all freq. range
±5KHz

RF output power
20 W ± 1dB

Harmonics emission
<-70dBc

Spurious emission
<-95dBc

Modulation Capability

MONO (left and right)
30Hz to 15KHz

STEREO (L-R & AES-EBU)
30Hz to 53KHz

SCA + RDS
30Hz to 100KHz

Composite
Mono or Stereo + SCA + RDS

MPX Characteristics

Signal input
MPX

Composite Input impedance
10Kohm unbalanced

Input connector
BNC

Input level
Adjustable (Front/Remote)

Audio freq. response (30Hz to 60KHz)
< 0

,

5 dB

Modulation distortion
<0.2%

Signal to noise ratio
>75dB

Stereo Characteristics

Signal inputs
Left or Right – AES-EBU

Input impedance
600ohm (bal.) or 10k ohm

Input connectors
Canon XLR

Unbalance rejection
>40dB

Input leve
Adjustable (Front/Remote)

Pre-emphasis
75 or 50uS

Audio frequency response (30Hz to 15KHz)
<0.25dB

Audio frequency response (19KHz to 100KHz)
>50dB

Cross-talk between left and right channel
>50dB

Distortion at frequency deviation of 75KHz
<0.1%

Signal to noise referred at deviation of 75KHz
>75dB

Suppression of 38KHz
>50dB

Spurious suppression outside band
in according to ETS 300-384
features

Transmitter ECO-LINE HIGH EFFICIENCY
Amplifiers RF broadband technology with LD-MOS
Modulator with digital frequency synthesizer.
Stereo encoder

,

RDS

,

AES-ABU Audio and change-over
Protection against increased ROS antenna with automatic reduction of output power (fold-back)
Temperature protection with power reduction (fold-back)
LCD display for control of the main parameters
Amplifiers 50-100W for maximum affidabilitàsu single radiator
Switching Power Supply for maximum reliability and efficiency (SMPS)
Air duct cooling
Fans can be easily replaced
Harmonic filter and directional coupler incorporated
Rack 19" 1 Unit
Telemetry GSM & TCP / IP with Webserver – Headphone Jack
Color

Black

TEM Opera plus 500W

In stock

Original price was: $ 4,290.52.Current price is: $ 3,361.59.
Select options
Weight 30 kg
Dimensions 62 × 74 × 30 cm

Altronic 6705 Series

In stock

Original price was: $ 4,987.23.Current price is: $ 4,754.99.
Select options
