Description

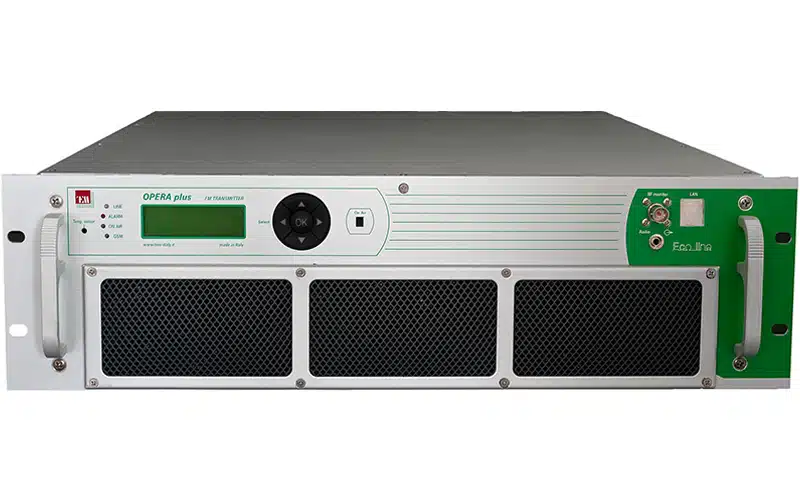

The TEM Opera plus 2400W FM 87,5÷108MHz transmitter uses 2×1400W amplifiers with 6^ generation LDMOS technology, practically unbreakable.
The technical solutions adopted by our engineers are focused to assure energy saving (among the lowest) and high reliability. Settings, protections, telemetry are totally microprocessor controlled.
The installation and the maintenance of the equipment are respectively very fast and easy. These fully protected transmitters are indicated for use in unmanned stations.
FEATURES
- ECO LINE – HIGH EFFICIENCY TRANSMITTER
- Wideband circuits amplifiers with LDMOS technology
- Built-in exciter with digital frequency synthesiser
- Digital Stereo encoder, RDS encoder, AES-EBU input board (options)
- Audio change-over built-in
- Automatic fold-back ROS protection
- Fold-back temperature protection
- LCD to check all operating parameters
- 2×1400W amplifier in only one heat-sink for highest reliability
- Switching-mode Power Supply – Efficiency >95%
- Sealed duct cooling air with blowers
- Easy removable blowers
- Harmonics filter & directional coupler built-in
- GSM Telemetry & TCP/IP Webserver with SNMP/SMTP (option)
- Headphone jack on front panel
TECHNICAL SPECIFICATIONS
- Operating Voltage: 240V AC ÷ 10%
- Cooling system: forced air
- AC Consumption: < 2720W
- Operational Temperature Range: -5° to +50 °C
- Storage Temperature Range: -20° to +60 °C
- RF Output connector: DIN 7/16
- RF Monitor connector: BNC
- Dimension: 485×133,2×625 mm
- Connector monitor: BNC
- Weight: 16 kg
