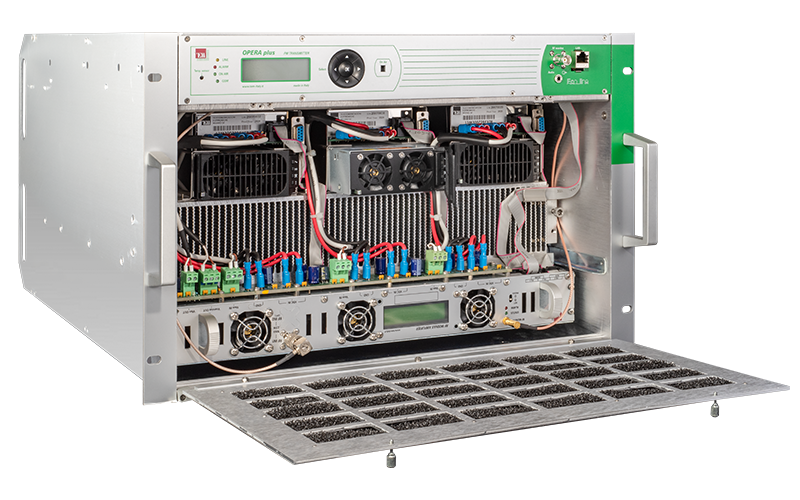

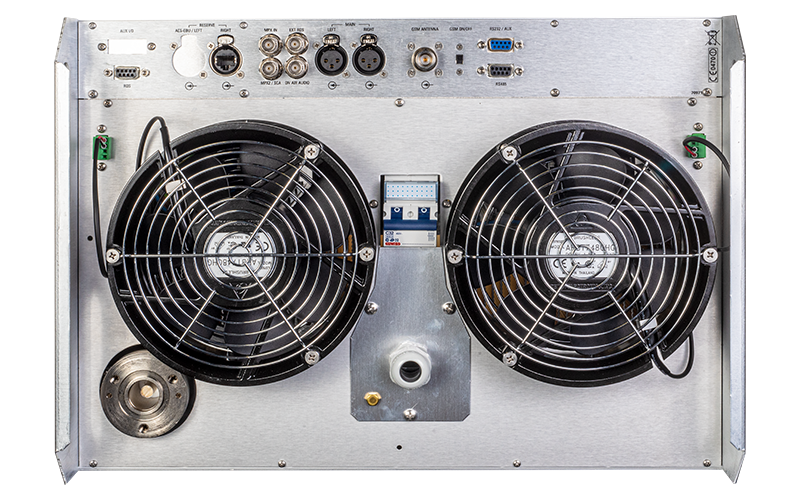

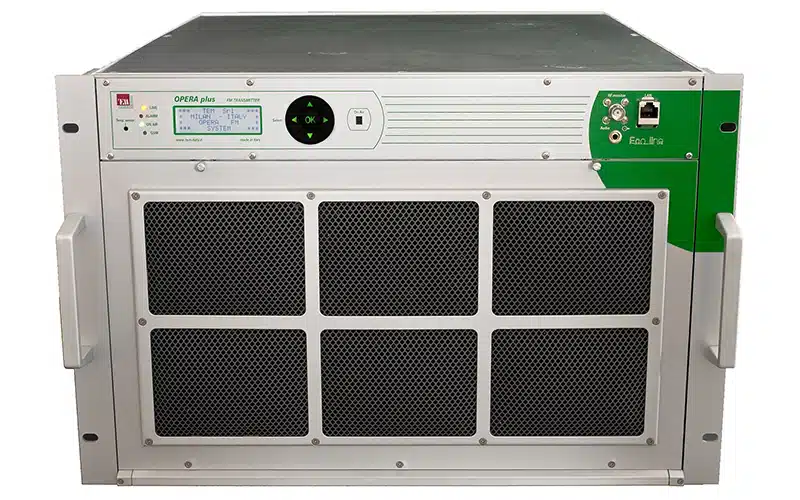

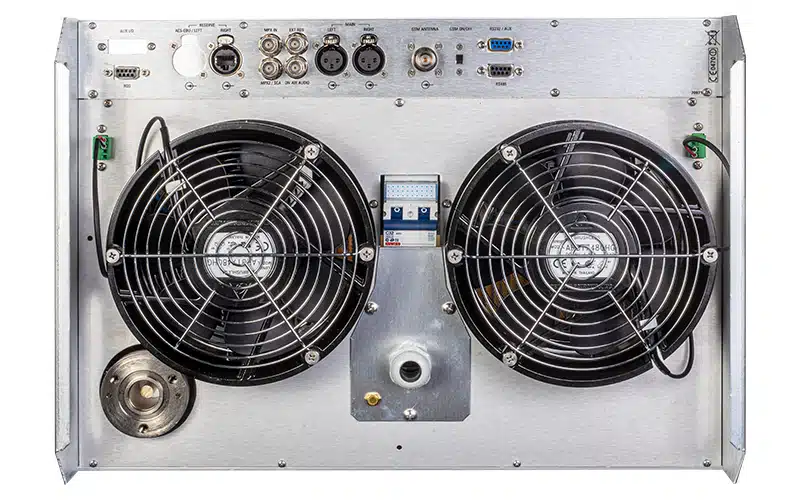

TEM Opera plus 5000W

$ 17,261.68 $ 21,613.13

The TEM Opera Plus 5000W FM Transmitter is a high-efficiency, DSP-based broadcast transmitter delivering superior performance, reliability, and signal clarity for professional FM broadcasters.

OPERA Plus 5000W
$ 17,261.68 $ 21,613.13
Stereo Encoder option
$ 250.14 $ 357.34
IP input option (used with Stereo Encoder)
$ 576.35 $ 691.62
RDS Encoder option
$ 169.45 $ 242.07
AES-EBU input option
$ 258.20 $ 368.86
TCP/IP Web Server/SNMP/SMTP/GSM
$ 645.51 $ 922.16
SKU: 102070 Categories: , , Tags: , , , , , , Brand:TEM

Description

TEM Opera Plus 5000W FM Transmitter

The TEM Opera Plus 5000W FM Transmitter represents the new generation of high-efficiency FM broadcast transmitters. Designed for professional broadcasters who demand exceptional signal quality and reliability, the Opera Plus combines advanced RF architecture with innovative thermal design and intelligent control to deliver consistent, high-fidelity transmission under all operating conditions.

Built by TEM (Telecom Equipment Manufacturer) in Italy, the Opera Plus 5000W transmitter offers outstanding audio performance, reduced power consumption, and robust long-term operation. With its modular solid-state design, redundant systems, and digital signal processing (DSP) features, this transmitter ensures perfect on-air reliability for both large commercial networks and smaller regional stations looking for premium-grade broadcasting equipment.

The unit’s modern interface allows remote monitoring and control via IP, SNMP, or local touchscreen panel, while its compact rackmount construction provides easy integration into any transmission setup. Engineered for low maintenance and high uptime, the Opera Plus stands out as a top-tier choice for 5kW FM transmission.

Key Features

  • 5,000W FM transmitter with modular solid-state amplification

  • High efficiency with reduced operating temperature

  • Digital signal processing for crystal-clear broadcast audio

  • Built-in redundancy and intelligent protection systems

  • Web/SNMP remote monitoring and touchscreen local control

  • Compact 3U rackmount chassis for flexible installation

  • Complies with international broadcast standards

Technical Specifications

  • Output Power: 5kW FM

  • Frequency Range: 87.5–108 MHz

  • Modulation: Direct FM

  • Harmonic Suppression: > -80 dB

  • RF Efficiency: Up to 75%

  • Audio Input: Analog & AES/EBU Digital

  • Control Interfaces: Ethernet, SNMP, Web GUI

  • Power Supply: Single-phase or three-phase AC

  • Cooling: Intelligent forced-air system

  • Dimensions: Standard 3U 19” rackmount

  • Weight: approx. 25 kg

Use Cases

  • Main FM broadcast transmitter for large networks

  • Backup or relay transmitter for regional coverage

  • Energy-efficient upgrade for existing FM sites

  • Suitable for commercial, public, or community stations

Alternative Products

  • DB Mozart Next 6000 – 6kW FM Transmitter

  • SUONO ESVA5K – 5kW High Performance FM Transmitter

  • OMB 5kW FM Transmitter

  • RVR TEX5000 – 5kW FM Transmitter

  • ECRESO FM 1000 AiO Series Transmitter

Additional information

Weight80 kg
Dimensions74 × 62 × 60 cm
Color

Black

Product can be split into multiple boxes

0

Ship Separately

0

features

ECO LINE – HIGH EFFICIENCY TRANSMITTER Wideband circuits amplifiers with LD-Mos technology Built-in exciter with digital frequency synthesiser Stereo encoder, RDS, AES-ABU and Audio change-over built-in Automatic fold-back ROS protection Fold-back temperature protection LCD display to check all operating parameters 6x1250W amplifier in only one heat-sink for highest reliability 3xSwitching-mode Power Supply – Efficiency >95% Sealed duct cooling air with blowers Easy removable blowers Harmonics filter & directional coupler built-in 3 unit 19” standard rack GSM Telemetry & TCP/IP Webserver Headphone jack on front panel

specification

General Specification Operating voltage 400VAC ±15% 3phases or 230VAC ±10% Monophase Cooling Forced air Line power < 7100VA Operational temperature range -5° to 50°C Storage temperature range -20° to 60°C Output RF connector 7/8” Monitor RF connector BNC Dimensions 485×310, 8x625mm Weight 55 kg Radio Frequency Frequency range 87.5 to 108MHz Frequency setting in 10KHz or 100 KHz steps Setting mode By keys on the front panel/Remote Frequency stability < ±500Hz/year Frequency generation PLL synthesizer Modulation type direct VCO frequency modul. F3 Nominal frequency deviation ±75KHz Deviation linearity in all freq. range ±5KHz RF output power 5000 W ± 1 d B Harmonics emission <-70dBc Spurious emission <-95dBc Modulation Capability MONO (left and right) 30Hz to 15KHz STEREO (L-R & AES-EBU) 30Hz to 53KHz SCA + RDS 30Hz to 100KHz Composite Mono or Stereo + SCA + RDS MPX Characteristics Signal input MPX Composite Input impedance 10Kohm unbalanced Input connector BNC Input level Adjustable (Front/Remote) Audio freq. response (30Hz to 60KHz) < 0, 5 dB Modulation distortion 75dB Stereo Characteristics Signal inputs Left or Right – AES-EBU Input impedance 600ohm (bal.) or 10k ohm Input connectors Canon XLR Unbalance rejection >40dB Input leve Adjustable (Front/Remote) Pre-emphasis 75 or 50uS Audio frequency response (30Hz to 15KHz) 50dB Cross-talk between left and right channel >50dB Distortion at frequency deviation of 75KHz 75dB Suppression of 38KHz >50dB Spurious suppression outside band in according to ETS 300-384
