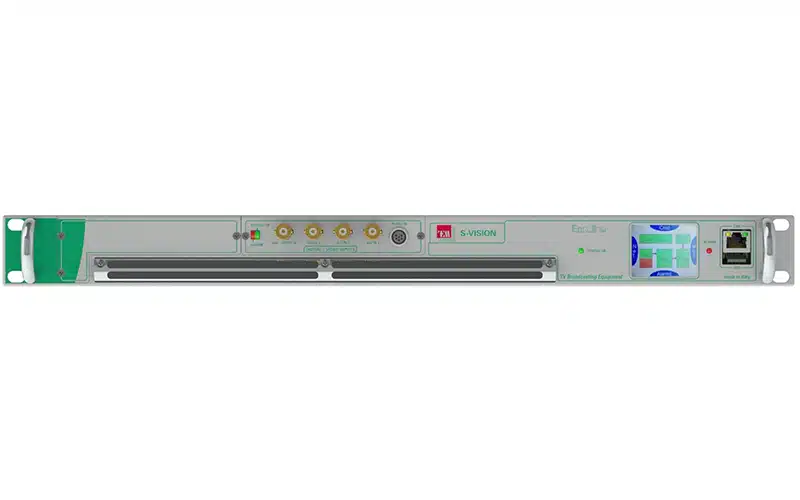

TEM Dual-Cast 30 Watt

TRANSMITTERS UHF digital output power: 30 W, 50 W, 80 W and 130 W rms @ MER 40 dB typ. UHF analogue output power: 50 W, 100 W, 220 W p.s. VHF digital output power: up to 100 W rms @ MER 38 dB typ. VHF analogue output power: 220 W p.s. Frequency agility: UHF Band IV and V or VHF Band III Frequency resolution: 1 Hz Pre-correction: Adaptive RF connector: N(f), 50 Ohm MODULATOR DVB-T/-H/-T2   Standard: EN300744, EN302304, EN302755, TS101191, TS102773 (T2-MI), TS102034 Inputs: 4x ASI BNC (f), 75 Ohm or 2x ASI BNC (f), 75 Ohm and 2x RJ45 TS oIP 10/100/1000   Switch seamless between ASI inputs.   Hierarchical and not hierarchical (DVB-T) FFT: 1K (DVB-T2), 2K, 4K, 8K, 8K ext. (DVB-T2), 16K & 16K ext. (DVB-T2),   32K & 32K ext. (DVB-T2) Code rate: All modalities available according to the standard   Block Short or Normal (DVB-T2)   DVB-T: Reed-Solomon (204, 188)   DVB-T2: BCH, LDPC Guard interval: 1/32, 1/16, 1/8, 1/4, 19/256 (DVB-T2), 19/128 (DVB-T2), 1/128 (DVB-T2) Constellation: QPSK, 16QAM, 64QAM, 256QAM (DVB-T2). Rotated and non rotated (DVB-T2) MISO processing: Supported     ISDB-Tb   Standard: ABNT NBR 15601, ABNT NBR 15603 Inputs: 4x ASI TS/BTS BNC (f), 75 Ohm or   2x ASI TS/BTS BNC (f), 75 Ohm and 2x RJ45 TS/BTS oIP 10/100/1000 FFT: Mode 1 (2K), Mode 2 (4K), Mode 3 (8K) Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 Guard interval: 1/4, 1/8, 1/16, 1/32 Hierarchical modulation: Up to 3 layers Constellation: QPSK, 16QAM, 64QAM Time interleaver: Fully supported Partial reception: Supported     DAB/DAB+/T-DMB   Standard: EN 300401, ETS 300 799 Inputs: 4x ETI (NI[G703], NA5376[G704] or NA5592[G704]) BNC (f), 75 Ohm Transmission modes: Mode I, II, III, IV (Automatically detected from the ETI stream, or user selectable) Operation: MFN or SFN operations     ATSC   Standard: A/53, A/110 Inputs: 4x ASI / SMPTE-310M BNC (f), 75 Ohm or   2x ASI / SMPTE-310M BNC (f), 75 Ohm and 2x RJ45 TS oIP 10/100/1000 Modulation: 8-VSB Input bit rate: 19.39 Mbit/s Bandwidth: 6 MHz Max processing delay: Up to 1 second (programmable)     Analogue   Standard: B, G, D, K, M, N, I Inputs: Video BNC (f), 75 Ohm, audio Tini-QG “Mini XLR”, 6 Pin (m), 600 Ohm Color system: PAL, NTSC SATELLITE RECEIVER (Option) Standard: ETSI EN 300 421 (QPSK) (DVB-S)   ETSI EN 302 307 (QPSK, 8PSK, 16APSK) (DVB-S2)   ETSI EN 50083-9 (ASI)   ETSI EN 50221 (Common Interface) DVB-S2: VCM, CCM, Multi Stream and Single Stream, Normal & Short FEC frames Symbol rate: 1 – 45 Msym/s (DVB-S)   2 – 45 Msym/s (DVB-S2) Constellation: QPSK, 8PSK, 16APSK FEC: Automatic, all modalities available according to the standard   Block Short or Normal   DVB-S: Reed-Solomon (204, 188)   DVB-S2: BCH, LDPC Roll–Off: 0.2, 0.25, 0.35 Input connector: F (f), 75 Ohm Frequency: L–band 930÷2250 MHz LNB control voltage: Off, +13/18 Vdc, 22 kHz, 0.25 A (overload protection) RF input level: 40 ÷ 100 db/μV (with attenuator) Output connector: BNC (f), 75 Ohm Modality: 188 bytes Max input bit rate: 80 Mbps (CAM limit: 72 Mbps) CAM interface: PCMCIA DVB-CI Common Interface CA mode (Conditional Access): Multicrypt, Simulcrypt CAS support: Mediaguard, Viaccess, Irdeto, Conax, BISS with Professional multiprogram   CAM (descrambling of up to 24 Elementary Streams) Betacrypt,   Cryptoworks, Nagravision with standard consumer CAM   (descrambling of up to 4 services) REPEATER/GAP FILLER RF Input   Signal type: One DTV channel (DVB-T/H/T2, ISDB-T/Tb, ATSC) Frequency range: 170 ÷ 862 MHz (agile tuning) Sensitivity: -75 ÷ -15 dBm Selectivity: > 60 dB ± 4.2 MHz NF (Pi=-50 dBm): < 6 dB Conversion type: Direct Base Band Conversion (Zero IF) Return losses: > 15 dB Connector: N (f), 50 Ohm     Echo Canceller   Cancellation level: 40 dB, typical Cancellation window: 20 μs Selective cancellation window: 1.6 μs (time shift from 2 to 820 μs) Doppler cancellation: yes Maximum echo/signal ratio: +15 dB (over the main signal), typical Total delay: < 10 μs     Echo Canceller + additional high performance cancellation option   Cancellation level: 65 dB, typical (over the main signal) Maximum echo/signal ratio: > +35 dB (over the main signal), typical Maximum echo level at input: -10 dBm Max. delay compensation: 200 μs (extendable) GPS / GLONASS (Option) Input connector: N (f), 50 Ohm Input/Monitor output 10 MHz: BNC (f), 75 Ohm Input/Monitor output 1 PPS: BNC (f), 75 Ohm Phase noise: -140 dBc/Hz @ 10 kHz   -150 dBc/Hz @ 100 kHz Stability: 1e-12 / 24 H with disciplined OCXO Hold-over stability: 5 μs after 5 hours (optional 1 μs after 24 hours) MECHANICAL Chassis: 1U rack 19” Width: 482 mm Height: 43.6 mm Depth: 460.5 mm without fans Weight: 7.5 Kg CONTROLS TFT touchscreen   Web GUI   SNMP   GPIO   ENVIRONMENTAL Operating temperature range: -5°C ÷ 40°C Max. relative humidity: 90% non condensing Max. operating altitude: 2500 m. a.s.l. (>2500 m. optional) ELECTRICAL Power supply: Single Phase 100÷240 V~ 50/60 Hz, IEC320 C14 Plug Maximum consumption: 196 W @ 30 W rms (Onedriver 30U)   215 W @ 50 W rms (Onedriver 50U)   290 W @ 80 W rms (Onedriver 80HU)   470 W @ 130 W rms (Onedriver 130HU)   380 W @ 100 W rms (Onedriver 100V)
