The Aqua Cobalt C-5000 is a 5kW solid-state FM transmitter delivering exceptional performance, efficiency, and reliability for professional radio broadcasting.
$ 26,556.54
Product Description
The Aqua Cobalt C-5000 FM Transmitter is a 5kW high-efficiency solid-state transmitter engineered for professional FM radio broadcasters who demand exceptional performance, energy efficiency, and reliability. Developed by Aqua Broadcast, the C-5000 combines advanced RF design with intelligent control features for consistent on-air operation under the most demanding conditions.
Built using the latest LDMOS transistor technology, the Cobalt C-5000 achieves high energy efficiency while delivering superior audio fidelity and signal purity. Its modular amplifier design and integrated protection circuitry ensure maximum uptime and minimal maintenance, even in continuous 24/7 operation.

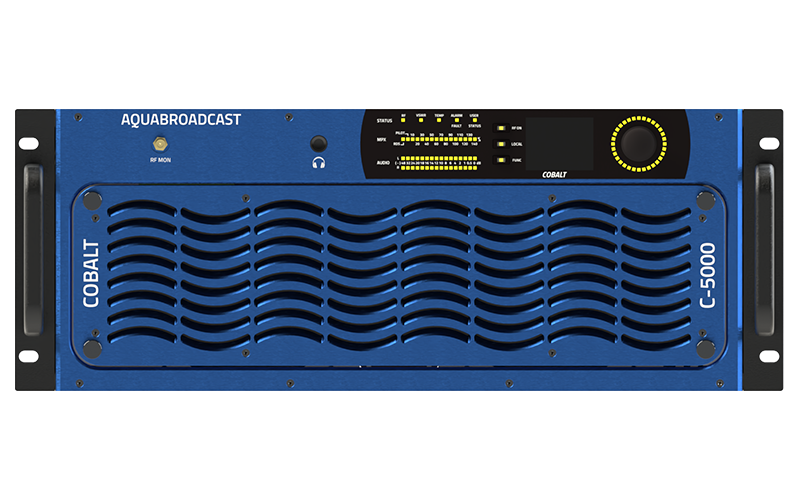

The intuitive touchscreen controller provides full monitoring of all parameters, including forward/reflected power, temperature, and system alarms, with remote management capabilities via TCP/IP, SNMP, and web interface.
With its compact 19″ rack design, low power consumption, and high redundancy, the Aqua Cobalt C-5000 FM Transmitter is an ideal solution for national networks, regional broadcasters, and critical transmission sites.
Key Features:
• High-efficiency 5kW solid-state FM transmitter
• LDMOS technology for superior linearity and reliability
• Full remote monitoring via TCP/IP, SNMP, and web interface
• Modular hot-swappable amplifier design
• Built-in audio processor and stereo encoder
• Low harmonic distortion and high SNR performance
• Comprehensive protection for VSWR, temperature, and current
• Compact 19″ rackmount construction for easy integration
• Designed for continuous 24/7 broadcast operation
Technical Specifications:
• Output Power: 5 kW adjustable
• Frequency Range: 87.5 – 108 MHz
• Modulation: Direct FM
• Harmonic Suppression: > 70 dB
• Audio Inputs: Analog & AES/EBU Digital
• Audio Response: ±0.1 dB, 30 Hz – 15 kHz
• Remote Control: TCP/IP, SNMP, Web Interface
• Power Supply: 230/400 V AC, 50/60 Hz
• Efficiency: > 75%
• Dimensions: 19” rackmount (5U)
• Weight: ≈ 50 kg
Applications:
• National and regional FM broadcasting networks
• Main or backup transmission sites
• Community and commercial radio stations
• Broadcasters requiring high-efficiency FM transmission
Alternative Products:
• OMB EM 5000 HE DIG PLUS – 5kW FM Transmitter
• DB Mozart Next 6000 – 6kW Stereo FM Transmitter
• Nautel VX5 – 5kW Solid-State FM Transmitter
All alternative products are available from Broadcasters Warehouse.
