Solidyne was founded in 1968 by Mr. Oscar Bonello, its current president, Argentine researcher and professor at the University of Buenos Aires.

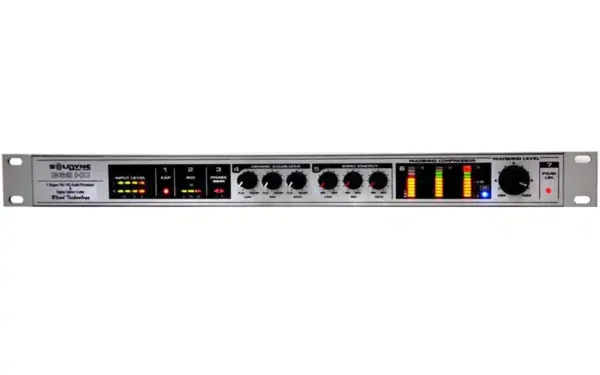

Solidyne AudiMax 362HD
In stock
| Weight | 5 kg |
|---|---|
| Product can be split into multiple boxes |
0 |
| Ship Separately |
0 |
| specification |
Technical Specifications Analog Input level self-adjusted -6 dBu to + 15 dBu Z= 600 / 10 Kohms ,balanced Analog Output Balanced ,+ 4 dBu Z= 600 / 10 Kohms ,with de-emphasis (flat response) MPX Output factory set level to standard 4 Vpp Differential output ,BNC connector ,floating ground 50 ohms Allows 45 dB canceling buzz & noise due to ground loops Frequency Response 5 dB measured below compression & limiter threshold Harmonic Distortion 02 % @ 30-15.000Hz Noise Stereo Separation Subsonic Filter 15 Hz Asymmetry using Khann-Bonello system Expander 0 ,1 msec attack time ,200 AGC (wideband) 30 dB range ,3 sec attack/release Multiband Compressors 18 B/octave ,Linear Phase crossover. Compressors: 30 dB range ,5:1 slope ,VCA controlled Automatic attack time. Release time user controlled by 3 x ENERGY controls IM Cancelled Dynamic EQ Mid and High Frecuency Front panel user controlled Processing Power 20 W Dimensions 4 mm). |
Solidyne 542APC
In stock
| Weight | 5 kg |
|---|---|
| Product can be split into multiple boxes |
0 |
| Ship Separately |
0 |
| specification |
Technical Specifications Analog Input Digital Input 44 ,1 ,48 ,96 & 192 Khz with sample rate converter (128 dB Dynamic Range ,-117 dB THD) to avoid jitter Analog Output output level +4 dBm Sigma-Delta converters 24 bits / 192 Khz Digital Output Z=110 ohms FS=48 or 96 Khz ,selected by software MPX Output Processing Technology MPX Post-Processing at 608 Khz oversampling. Fast clipper DC-10 Mhz wideband channel to avoid audible artifacts Frequency Response Harmonic Distortion (THD) Flat Mode) Noise Stereo Separation Subsonic Filter Asymmetry Canceling Linear Expander Gated Wide-Band AGC Multiband Compressors Crossover= 24dB/oct Max compression = 30dB. Slope = 10:1 Compressors Attack/Release Time IM Canceled Clipper Fast Clipper absolutely alias free using DC-10 Mhz bandwidth channel Density Equalizer Low pass filter 60 dB rejection at 19 Khz Storage of Preset Settings RS-232 PC control Super Modulation allows for 130% L & R audio level at 100% modulation RS-232 PC control AM FM compatible Processing Bands and stages LCD Display LCD display with backlight. Graphic type Resolution 240 x 64 RDS Encoder Power selectable from rear panel Dimensions 88 mm High |
Solidyne 2600
In stock
| Weight | 2 kg |
|---|---|
| Product can be split into multiple boxes |
0 |
| Ship Separately |
0 |
| specification |
Specifications Audio Inputs One balanced stereo line (or mono Mic in 2610 & 2612); and one unbalanced AUX. Option USB 2602 ,2 stereo Digital inputs & 2 stereo Digital outputs by USB Inputs Level/Impedance Balanced LINE = -20 dBu/+22 dBu; 600~ 10Kohms Unbalanced AUX = -20 dBu/+15dBu; 600~ 10Kohms Inserts for both MIC inputs in microphone modules. Stereo insert for LINE A in LINE modules. Phantom 48v Outputs AUX Unbalanced + 4 dBm Balanced Outs; Max Level +26dBu (10K) ,+20dBm (600ohms) Unbalanced Outs; Max Level = +20dBm/600 ohms Optional Digital AES/EBU output for PGM & AUD. Digital Levels Monitor & Hybrid Outputs +4dBu / 10K 1 Hybrid On-Air Receive + 4 dBu/10K 1 Hybrid send (MIX-Minus) +4 dBu / 10K CUE Monitor with Muting Relays (line level). Microphone Processor 160mm wide ,with 3 MIC with processing facilities. 4 band EQ ,80 Hz and 10 kHz shelving ,160 Hz & 5 kHz bell shaped; +/- 14 dB action. Expander Gate to eliminate backgound noise. Audio Compressor ,20 dB action. Iluminated switchs for EQ and Compressor-Expander Monitor & Hybrid Outputs +4dBu / 10K 1 Hybrid On-Air Receive + 4 dBu/10K 1 Hybrid send (MIX-Minus) +4 dBu / 10K Headroom Digital Control Bus to start external devices when open each channel fader. Out at minijack 1/8" // Ring = A channel (left side) Tip= B channel (Rigth side) Open collector OFF = Open Manages 0-24 V DC @ 100 mA Frequency response Noise EIN=-132 dBu/150 ohms LINE input ,S/N > 95 dBA at PGM output Dynamic Range Crosstalk L-R & R-L > 80 dBA @ 1khz Distortion From MIC to PGM out < 0.01 % THD @30-15.000 Hz Phase < 2º L&R @50-10.000 Hz Stereo tracking Phone Hybrid 2 for phone lines and one for cellular phone at 4 wires. Line attention with free hands operation ,and Line Transfer. Talkback Microphone with Audio Limiter. Noise Cancelled PZM type / Outputs to Phone Line Hybrid and Studio Speaker with AutoSwitch (AutoSwitch allows one-touch Studio communication) VU-meters DUAL type (RMS & Peak) for PGM & AUD. One Timer/Clock and one Timer /Clock Option a standard clock is activated ON-AIR Signal 3 amp Start external devices to start external devices when open each channel fader. Out at minijack 1/8" // Ring = A channel (left side) Tip= B channel (Rigth side) Open collector OFF= Open. Manages 0-24 VDC @ 100 mA. This allows to control Virtual Rack processors and start audio devices. Power with switch ,50/60 hz ,80 VA Dimensions & Weight BOX : 90 x 65 x 25 cm ,2 Kg 2600XD: 845mm wide ,635mm depth ,125 mm height – Weight 15 Kg BOX: 90 x 70 x 20 cm ,2 Kg |

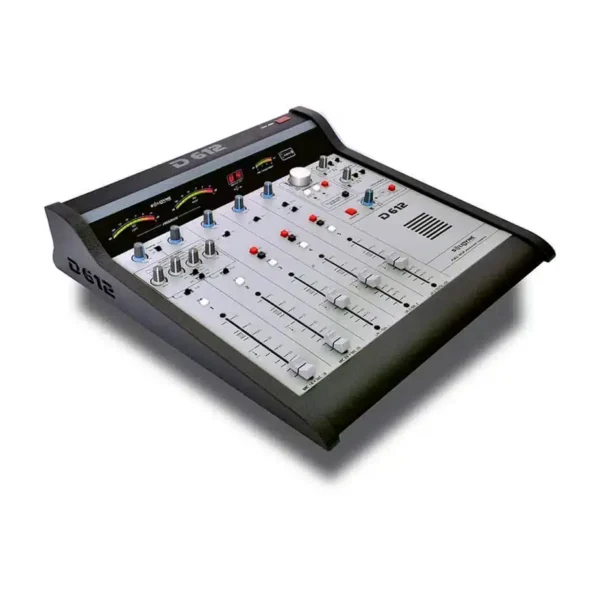

Solidyne D612
In stock
| Weight | 4.7 kg |
|---|---|
| Product can be split into multiple boxes |
0 |
| Ship Separately |
0 |
| specification |
D612 Digital & Analog Console Audio Inputs 2 balanced stereo Line inputs (DIN 5) 3 unbalanced stereo Line inputs (RCA) 1 Digital stereo Line input (USB) Inputs Level & Impedance Balanced LINE = -20 dBu / +26 dBu; 600~ 10Kohms Unbalanced LINE = -15 dBu / +12 dBu; 600~ 10Kohms Phantom Power switchable ON / OFF Analog Outputs 35mm ,TRS plug) & REC (RCA connector) Both at + 4 dBm = 0 VU PGM balanced: Max Level +26dBu (10K) ,+20dBm (600 ohms) REC unbalanced ,Max level 20 dBu External Hybrid: unbalanced Mic-Minus out at + 4 dBu Digital USB Input / Output It uses the K15 Overload recommendation for broadcating; Then ,0 VU is at -15 dB Full Scale level ON-AIR Signal 12 V CC @ 0 ,12 amp (two Solidyne On-Air lights) Monitor & Hybrid Outputs 0 dBu for active speakers ,muted 1 Stereo Control ,0 dBu for active speakers ,muted 1 Stereo Studio Headphones ,with Distribution AMP up to 5 headphones ,+ 10 dBu 1 Stereo Control Headphones ,+ 10 dBu 1 External Hybrid send (MIX-Minus) +4 dBu / 10K CUE Monitor with speaker included Headroom Frequency Response 20-20.000 Hz +/- 0 ,5 dB (MIC to PGM) MIC Equalizer 160 Hz bell shaped ,4 kHz bell shaped ,8 kHz top flat curve Action + 15 dB / -15 dB MIC Compressor Threshold = 0 VU Compression ratio: < 2 dB variation for 15 dB change MIC level Noise EIN=-120 dBu / 150 ohms LINE input ,S/N > 75 dBA Dynamic Range Crosstalk Distortion Phase < 3º L&R @50-10.000 Hz Stereo Tracking Telephone Hybrid Specs One phone line plus one cellular (Bluetooth linked) Frequency Response: 200 – 5.000 Hz Noise: > 60 dBA S/N Rejection: > 35 dB rejection NULL adjust in front panel preset Preference atenuator: 12 dB local announcer interrupt priority Telephone input lightning discharge safety External gas discharge protection is recommended Talkback Microphone with Audio Limiter. Noise Cancelled PZM type. Outputs to Phone Line Hybrid or Studio Speakers & Headphones. VU-meters & Compression Level Microphone compressor level meter 0 – 15 dB AoIP Optional TCP / IP Digital Streaming Output Used for sending D612 output to transmitter plant with MP3 Internet streaming or using a 5 ,8 GHz 802. Link Also can be used for AoIP connection with another console located inside or outside studios It can work in linear PCM at 44.1 & 48 kHz or MP3 VBR On-Air information using GPIO for remote processors AoIP Delay and user modes 44.1 and 48 kHz) MP3 Layer 2 (16 ,22.05 and 24 kHz) 16bit PCM uncompressed (8 ,16 ,32 ,44.1 & 48 kHz) Full duplex (transmitting and receiving) Delay using PCM at 48 kHz Fs (recommended) Less than 5 mS Delay using MP3 streaming. Average 100 mS Power 20VA [28V@0 ,57A] Dimensions & Weight Net Weight: 4.7 Kg |
| features |
8 channels ,with 5 faders with connectors (used to change it without soldering) 4 balanced MIC 2 LIN balanced (DIN 5) ,3 LIN unbalanced (RCA) ,1 digital input USB ,2 Hybrid telephone (RJ11 & Bluetooth) ,1 Monitor Air (Jack 6.35 mm) 4 outputs stereo; selectable PGM or REC with muting logic; Speakers Studio ,Studio Headphones (with Distributor Amplifier) , Headphones Control ,CUE mono (with amplifier and internal speaker). flush mounting on any table without cutting it 55 A |
