Suono Telecom ESVA2K – 2000 Watt FM Transmitter

Overview

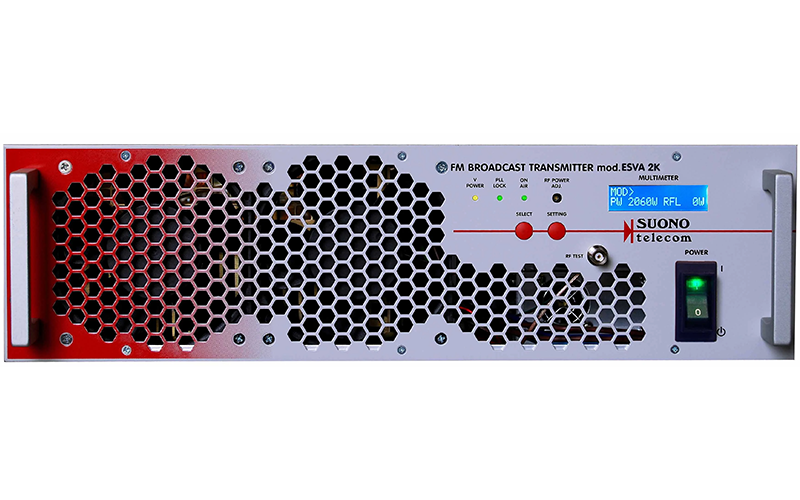

Suono Telecom ESVA2K is a compact 2000 W FM broadcast transmitter designed for reliable 24/7 operation in professional regional, commercial and networked FM stations. Suono Telecom ESVA2K uses wideband solid-state MOS-FET technology and a high-efficiency switch-mode power supply to deliver strong RF output with reduced heat and lower operating costs. Its 3U 19″ rack-mount chassis and intuitive front-panel controls make Suono Telecom ESVA2K straightforward to install and maintain in space-limited transmitter rooms and head-end facilities.

RF platform and performance

Suono Telecom ESVA2K covers the standard 87.5 ÷ 108 MHz FM band, with other ranges available on request to match local allocations. A solid-state MOS-FET wideband RF stage provides adjustable power from 0 to 2000 W at 50 Ω, so Suono Telecom ESVA2K can operate either as a main on-air source or as a powerful driver for larger amplifier systems. Low-pass filtering, synthesized VCO tuning and spurious emissions typically below −80 dB help ensure high spectral purity and compliance with demanding FM regulations.

Audio, control and applications

Suono Telecom ESVA2K delivers clean on-air sound thanks to a high-performance FM generator with 30 Hz ÷ 60 kHz baseband response, low distortion and an FM signal-to-noise ratio better than 80 dB. Mono/MPX operation via MPX and SCA inputs on BNC connectors, selectable pre-emphasis (50 or 75 µs) and a microcontroller-based control section with status LEDs and metering for forward and reflected power simplify setup and monitoring.

These features make Suono Telecom ESVA2K well suited as a main 2 kW FM transmitter or as a robust driver in multi-kilowatt systems, with forced-air cooling, a wide 110 ÷ 264 VAC mains input range and proven ESVA-series engineering supporting demanding on-air environments.

Key technical features

• Frequency range: typically 87.5 ÷ 108 MHz, with alternative bands for Suono Telecom ESVA2K available on request.
• RF output power: 0 ÷ 2000 W adjustable at 50 Ω with automatic fold-back protection.
• RF design: solid-state MOS-FET wideband architecture with low-pass RF output filter and synthesized VCO tuning.
• Audio performance: 30 Hz ÷ 60 kHz baseband and FM S/N ratio better than 80 dB.
