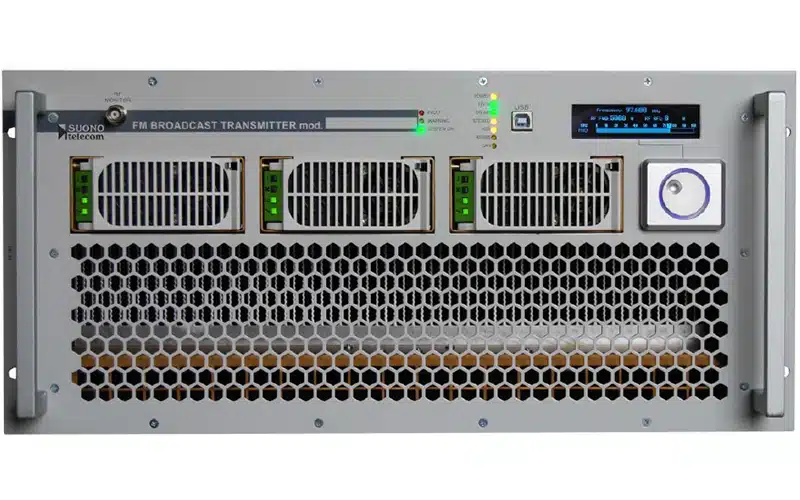

The SUONO ESVA3K is a 3000W FM Transmitter (Mono/MPX), which is made with the most modern technology available to deliver maximum performance at minimum cost.
The SUONO ESVA3K is a 3000W FM Transmitter (Mono/MPX), which is made with the most modern technology available to deliver maximum performance at minimum cost. An internal RDS Encoder option is also available.
Technical Facts:
FREQUENCY RANGE: 87.5÷108MHz (76÷88MHz on request)
MODULATION: FM
EMISSION CLASS: F3E
VCO TUNING: 25MHz
FREQUENCY STABILITY: ± 2.5 ppm
SYNTHESIZER STEP:10KHz
POWER OUTPUT: 0 ÷ 3075 Watts
SPURIOUS EMISSION: < – 80 dB or better
HARMONIC EMISSION: <-70 dB
STEREO SEPARATION: >55dB @ 1KHz
DISTORTION:< 0.1 % (Typ. 0.06%) @ 1KHz
BASE BAND: 30 Hz ÷ 60 kHz within 0.15 dB
UNWEIGHTED S/N RATIO:>80 dB (30Hz ÷ 15KHz, 50 μS RMS)
ASYNCHRONOUS AM S/N Ratio: > 70 dB, Ref. 100% AM 400Hz
SYNCHRONOUS AM S/N Ratio: > 65 dB with FM @ 75KHz @400Hz
