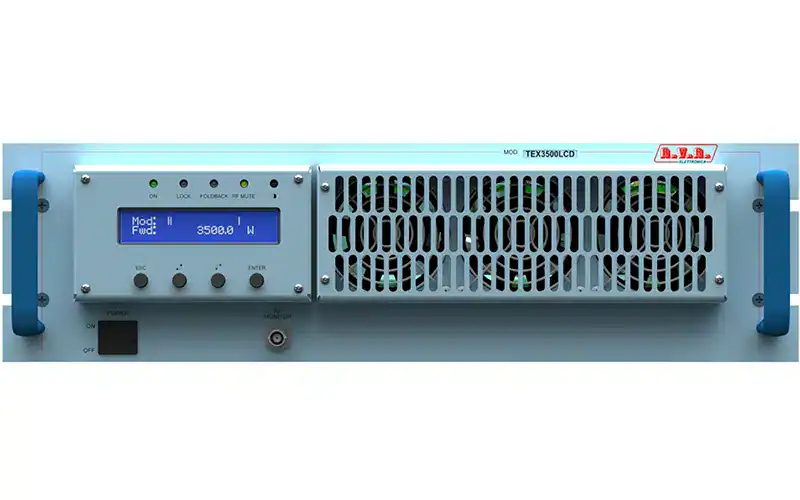

The RVR TEX3500LCD

Offers high quality at a very attractive price.

On the RVR TEX3500LCD front panel, by means of a user-friendly graphic interface, all the diagnostic and control parameters are displayed (frequency, output power, etc…)

Adjustable power output from 0 to 3,500 W with any VSWR conditions, thanks to FOLD-BACK control of both forward and reflected power. Power supply multi-voltage from 80 to 260 V directly without selector. Meets or exceeds all FCC and CCIR requirements. Low cost with high performance.

Composed of only 4 modules, easy replaceable, allowing the realignment of equipment with an almost total absence of adjustments.

SMD technology circuits for maximum reliability and minimum encumbrance with optimum signal routing. Available with 2 x SCA/RDS input connectors. Main parameters are also available on the terminal board for remote control. The TEX3500LCD comes with a built-in stereo encoder.

• PRIMARY APPLICATION: high quality at a very attractive price. Ideal for use as exciters in a compact and modular system.
• HARDWARE FEATURES: compact, non-deformable, and light thanks to the stainless steel chassis, in 2 rack units only.
• USER-FRIENDLY FEATURES: universal 80-260 V multi-voltage power supply enables operation without preselect voltage. Four push-buttons for user/device interaction and software that offers a simple, intuitive interface.
• RELIABILITY/CONTINUITY: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.
• AUDIO PERFORMANCE: low distortion and intermodulation values and a high noise/signal ratio.
• OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which ensures high efficiency across the bandwidth.
