RVR TEX1002TFT

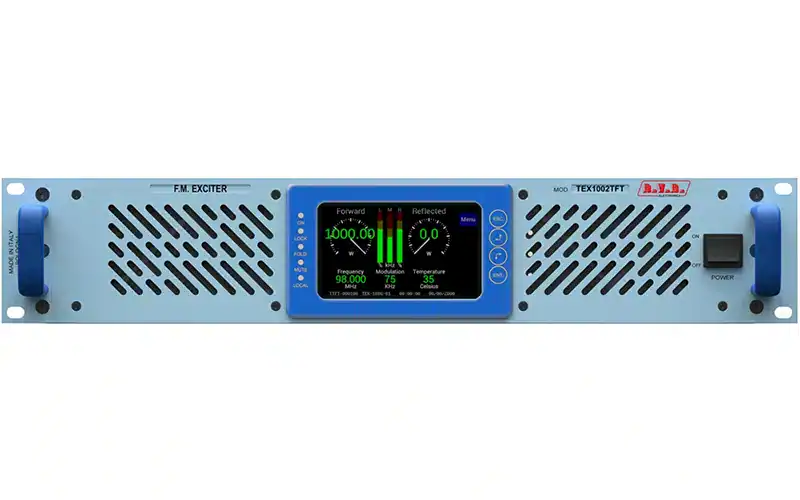

RVR TEX1002TFT – 1,000W Compact Stereo Transmitter

Features:

• Premium Quality Transmitter: Offers high-quality transmission at an incredibly competitive price. Compact, robust, and lightweight due to its stainless steel chassis.
• Seamless Operation: Ensures consistent operation under varying conditions through an Automatic Level Control (ALC) and Foldback protection with adjustable output power from 10 to 100%.
• Versatile Audio Inputs: Equipped with standard L&R, Mono, MPX, and SCA/RDS analog audio inputs. Offers the possibility of TOSLINK and optional AES/EBU with an integrated RDS encoder.
• Optimal Transmission: Low distortion, high signal-to-noise ratio, and energy-efficient performance (yielding over 70% across the entire band) ensure exceptional service.
• Limited Maintenance: Facilitated by extreme accessibility, thanks to advanced modular engineering and a water-washable air filter.

Control and Compliance:

• Integrated Control System: Features ARM microprocessor-based control, allowing interactive parameter management via TFT Touch display.
• Telemetry System: Integrated WEB/SNMP system (optional) for comprehensive compliance with EC, FCC, and CCIR regulations.

Technical Specifications

General Specifications:

• Frequency Range: 87.5 to 108 MHz
• Output Power: 1000W (Adjustable from 10 to 100%)
• Modulation Type: F300E
• Operational Modes: Mono, Stereo, MPX
• Temperature Range: -5 to +50°C
• Humidity: 95% (Without condensation)
• Altitude: Up to 3000m (with appropriate air evacuation system)

Power Requirements:

• AC Supply Voltage: 230VAC ±15%
• Power Consumption: Active – 1447W, Apparent – 1450VA
• Overall Efficiency: Typically 70% (up to 72% in specific conditions)
• Mechanical Dimensions: EIA rack – 483mm width, 88mm height (2HE)

Audio Inputs:

• Left/Mono and Right Inputs: Balanced XLR connectors, adjustable input levels
• MPX and SCA/RDS Inputs: Unbalanced connectors with adjustable levels
• Optional AES/EBU and TOSLINK Inputs: For 7.5 KHz FM, both optional inputs provide adjustable levels

Outputs:

• RF Output: 7/8” connector with 50 Ohm impedance
• RF Monitor: BNC connector with 50 Ohm impedance
• Pilot Output: BNC connector with an output level of Vpp 1 (Sinusoidal)

The RVR TEX1002TFT is a robust transmitter designed for reliability, ease of operation, and compliance with broadcasting regulations, making it an ideal choice for versatile broadcasting needs.
