Overview

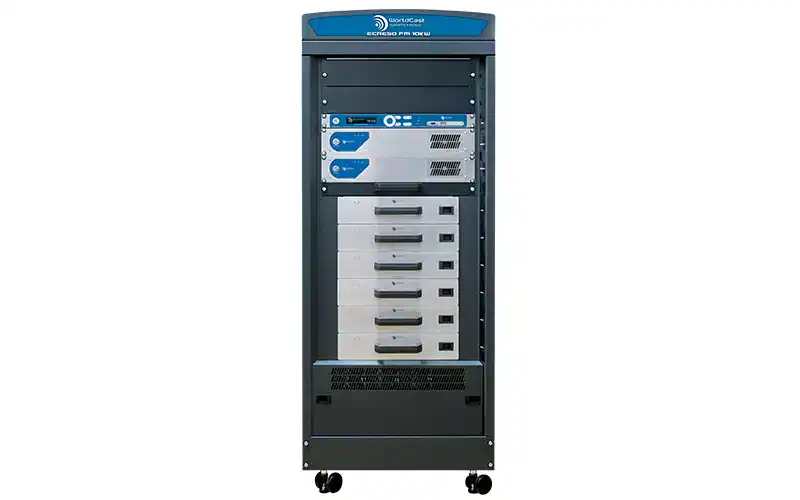

The ECRESO FM 10kW is a fully digital high-power FM transmitter designed for analog FM, representing the pinnacle of WorldCast Systems’ Ecreso product line. This transmitter is crafted to meet the needs of the most demanding network operators and stations, offering a blend of reliable performance, exceptional efficiency (up to 76%), and cutting-edge innovations. The built-in 1+1 redundancy ensures continuous operation with minimal power loss, making it a revolutionary choice for broadcasters.
Key Benefits
Market-Leading Expertise
- 60 Years of RF Expertise: WorldCast Systems brings decades of experience in radio frequency technology to the Ecreso FM 10kW.
- Comprehensive Support: Includes support for installation, configuration, maintenance, repairs, and on-site field operations.
- Turnkey Solutions: Available as standalone units or complete systems.
- Project Assistance: Encompasses site visits, factory acceptance tests, team training, and installation support.
- Extended Warranty: Up to 10 years for peace of mind.
Lowest Operational Expenditure (OPEX)
- High Efficiency: Achieves up to 76% efficiency using advanced planar design and 6th generation MOSFET technology.
- SmartFM: An AI-powered feature that can cut energy costs by up to 40%.
- Integrated Functions: Includes Dynamic RDS Encoder, Digital Stereo Encoder, Audio Backup, MPX Power Limiter, GPIO, and more.
- High Reliability: Incorporates HALT, PSA, FMECA, and burn-in testing for superior reliability.
- Maintenance: Reduced maintenance requirements with hot-swappable power supplies and fans.
- Custom Airflow Configurations: Tailored to specific operational needs.
- Full SNMP Management: Facilitates comprehensive monitoring and control.
Highest Quality to Listeners
- 1+1 Redundancy: Built-in redundancy to maintain broadcast continuity.
- Digital Modulation: Direct-to-channel digital modulator ensures the highest signal quality.
- 5-Band Sound Processor: Delivers superior audio processing.
- Digital MPX/Composite Over AES: Enhances audio signal transmission.
- Audio Backup: Includes silent detection on all program inputs and intelligent auto-switching capabilities.
Innovations and Redundancy
Built-In 1+1 Redundancy
- As Solid As 1+1 Design: Eliminates single points of failure and includes redundant components to ensure continuous operation.
- Cost Efficiency: Offers the same level of redundancy as a traditional 1+1 system but at significantly lower costs, reducing expenses by over €30,000.
- Rigorous Testing: Utilizes FMEA, PSA, and HALT to ensure reliability under harsh conditions.
Unrivaled RF Output Recovery
- PSU Redundancy: Can operate at full power even with the loss of up to three out of eight power supply units.
- MOSFET Redundancy: Each 2.3kW power amplifier includes two MOSFETs, ensuring continued operation even if one MOSFET or one complete amplifier fails.
- Fan Redundancy: Equipped with up to four oversized fans running at half speed, ensuring adequate cooling even if one fan fails.
- Control Unit Redundancy: The transmitter continues to operate with its last known parameters even if the control unit fails.
Conclusion
The ECRESO FM 10kW transmitter stands out as a state-of-the-art solution for FM broadcasting, offering unparalleled reliability, efficiency, and audio quality. Its advanced features and built-in redundancies make it a cost-effective choice for broadcasters seeking the highest standards in transmission quality and operational efficiency.
