The DEVA Radio Explorer II offers precise FM signal analysis, GPS-linked coverage mapping, and reliable mobile monitoring for broadcast engineers.
Original price was: $ 3,061.11.$ 2,957.14Current price is: $ 2,957.14.
Product Description

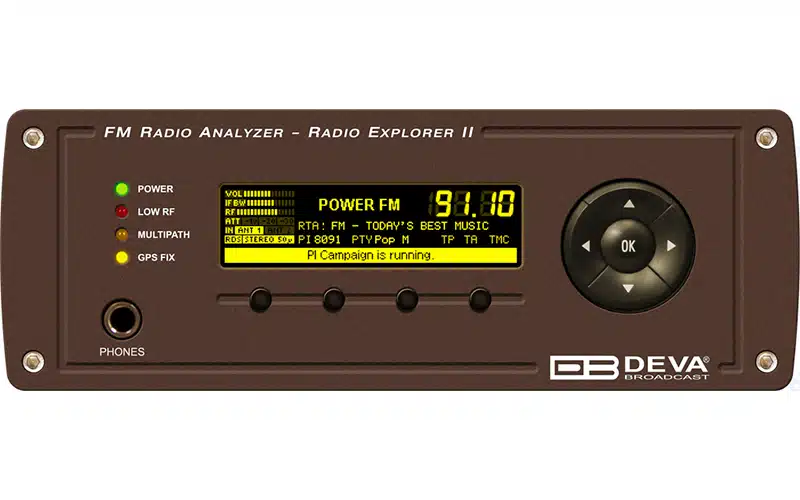

The DEVA Radio Explorer II is a portable FM radio analyzer designed for precise measurement, logging, and visualization of FM broadcast signals in the field. It provides professional engineers with a powerful tool for assessing coverage, detecting interference, and optimizing transmission quality during drive tests and site evaluations.

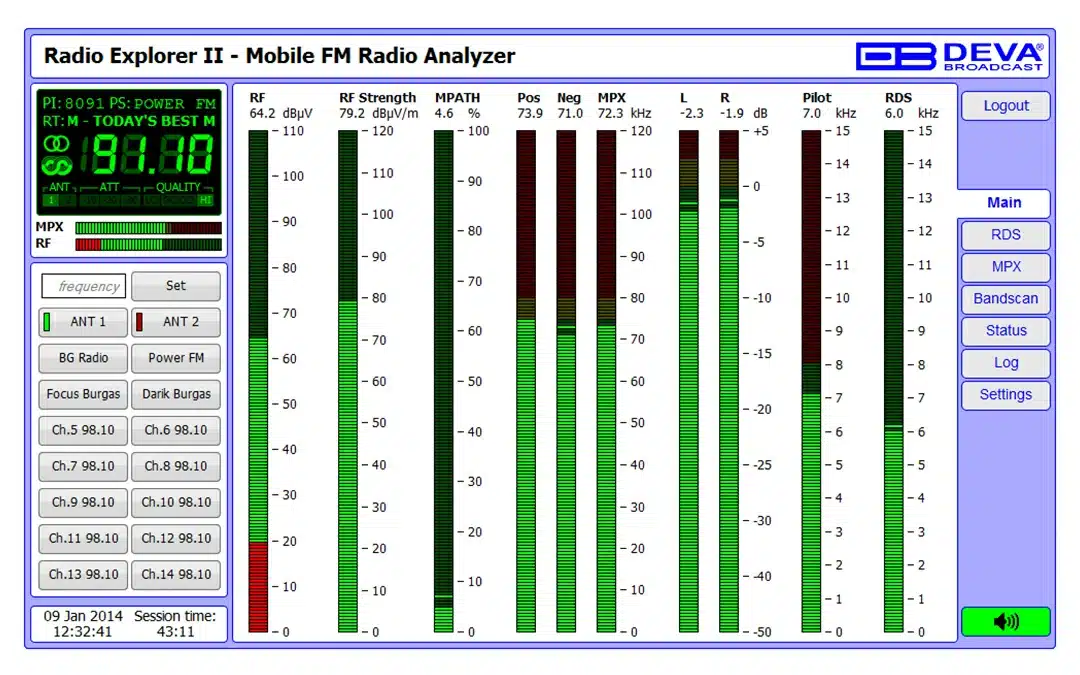

Developed by DEVA Broadcast, the Radio Explorer II integrates GPS functionality for synchronized signal mapping, allowing engineers to view FM signal strength, modulation, pilot tone, and RDS data along specific routes. Its intuitive software interface enables real-time monitoring, data logging, and post-analysis with detailed graphical displays.
Compact, lightweight, and USB-powered, the Radio Explorer II is built for reliability and convenience. It supports multiple RF measurements and can operate as a standalone unit or connected to a PC for enhanced data analysis. This combination of portability and professional performance makes it ideal for broadcasters who require accurate on-the-go signal verification.
Key Features:
• Mobile FM signal analysis and data logging
• Integrated GPS receiver for coverage mapping
• Real-time display of frequency, RF level, deviation, pilot tone, and RDS data
• Compact USB-powered design for field operation
• Compatible with Windows operating systems
• Software for real-time graphing and post-analysis
• Ideal for drive tests and transmitter optimization
Technical Specifications:
• Frequency Range: 87.5 – 108 MHz FM band
• RF Input: SMA connector, 50 Ω impedance
• Measurements: RF level, deviation, pilot tone, RDS group data
• Connectivity: USB 2.0, GPS receiver input
• Power: 5V DC via USB
• Dimensions: 120 × 70 × 25 mm
• Weight: approx. 200 g
Applications:
• FM coverage verification and network optimization
• Signal strength and interference analysis
• RDS validation and transmission monitoring
• Mobile field testing and broadcast survey operations
