DEVA DB9410-TX MPX Encoder provides professional FM MPX over IP transport using MicroMPX with low latency, FEC and analog or AES192 inputs.
The DEVA DB9410-TX MPX Encoder is a professional 1U MPX over IP encoder designed for broadcasters needing reliable, bandwidth-efficient FM STL and network distribution. Built around the MicroMPX algorithm from Thimeo, it transports full FM MPX at bitrates down to 320 kbps while preserving stereo and RDS integrity over public or private IP links. The DEVA DB9410-TX MPX Encoder combines high-grade ADC conversion, ultra-low-latency DSP processing and strong error protection for dependable long-term service. It integrates naturally with FM transmitters and fits within the wider DEVA Broadcast product line for modern IP-based FM contribution.

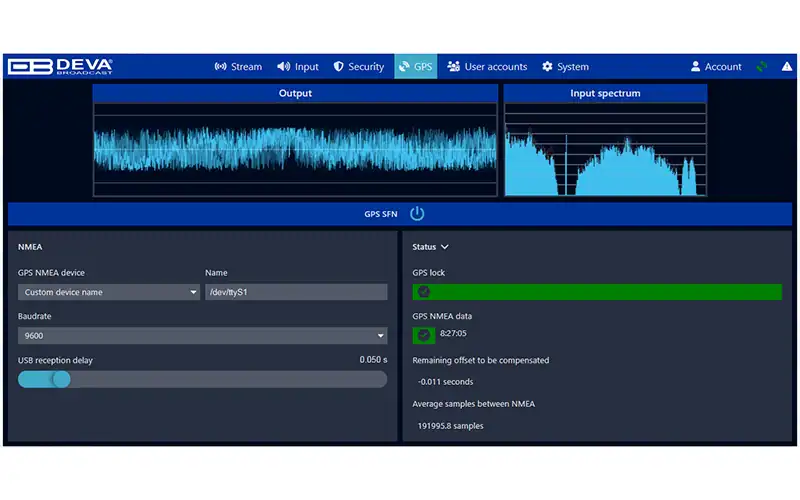

The DB9410-TX provides analog MPX input on BNC and AES192 digital MPX input on EMI-suppressed RJ-45, plus Gigabit Ethernet for transport and management. A DB15 GPS port supports NMEA 0183 and 1 PPS synchronization, while the front panel includes status LEDs, a 3.5 mm headphone jack and USB Type A for backup audio functions.

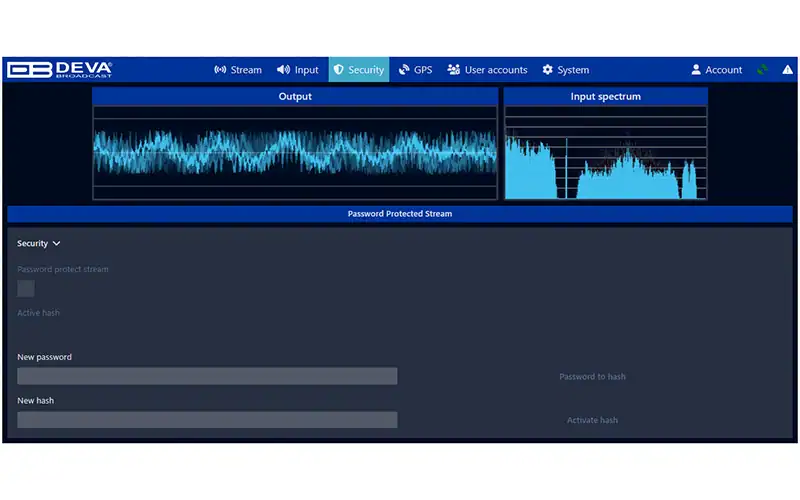

In daily use, the DEVA DB9410-TX MPX Encoder delivers stable low-bitrate MPX transport with fast setup and clear remote supervision from a browser or SNMP manager. Engineers can configure stream parameters, FEC, access settings and backup functions without visiting the site, which is useful for both single-transmitter and multi-site networks. Its proven 24/7 hardware platform and optional redundant power options make it suitable for critical studio-to-transmitter and regional distribution applications.
