Broadcast Concepts LPF1500RF50

Elevate FM Broadcasting Precision with Broadcast Concepts LPF1500RF50 – 1500W FM Low Pass Filter (-50dB) & Directional Coupler

Experience unparalleled precision in FM broadcasting with the LPF1500RF50, a 1500W FM Low Pass Filter featuring a -50dB Directional Coupler from Broadcast Concepts. This advanced filter, designed for optimal performance, introduces a new standard in signal clarity and control.

Key Features:

• Power Handling: 1500W for robust FM transmission.
• Directional Coupler: Provides a -50dB RF sample at forward and reflected ports.
• RF Detector: Broadband equalizer network ensures +/- 0.1dB response flatness at test ports.
• Ideal for Log Detectors: Perfectly suited for use with log detectors.
• Testing: Rigorously sweep tested with our HP8753ES network analyzer.

Cutting-Edge Technology:

• Frequency Range: 86-110MHz with a maximum power handling of 1500 watts.
• Filter Typology: 9th order Chebyshev for superior performance.

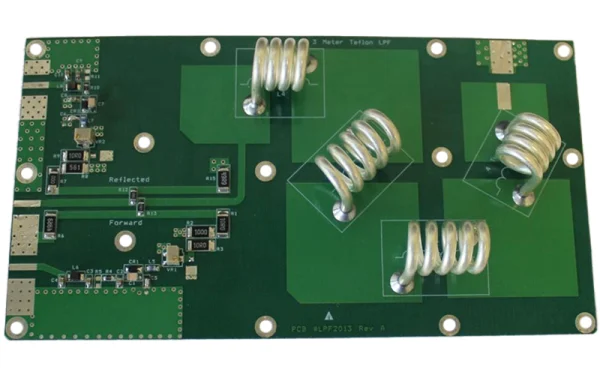

• Material: Ultra-low loss Teflon PCB with a tightly controlled dielectric constant.
• Inductors: Large #8 AWG for enhanced efficiency.
• Insertion Loss: 0.12 dB maximum; 0.1dB typical.
• Return Loss: -28dB; -33dB typical.
• Harmonic Rejection: Remarkable -47dB rejection at 176MHz, eliminating interference from the 1st harmonic of 88MHz.

Directional Coupler Specifications:

• Directivity: Minimum 20dB for precise signal control.
• Sample: -50dB at forward and reflected ports.
• Frequency Response: +/- 0.1dB for accurate signal representation.
• Return Loss: -28dB typical at forward and reflected ports.

Quality Standards:

• Each filter undergoes meticulous sweep testing with the HP8753ES network analyzer.
• Crafted with precision for longevity and durability.

Elevate your FM broadcasting experience with the LPF1500RF50 Low Pass Filter by Broadcast Concepts. Embrace cutting-edge technology, superior design, and exceptional performance. Download detailed specifications and witness the evolution of FM transmission precision. Broadcast Concepts – Redefining FM Broadcasting Excellence.
