Broadcast Concepts FM70MOT

Revolutionize FM Broadcasting with Broadcast Concepts FM70MOT – 80W FM Amplifier Module

Embark on a new era of FM broadcasting excellence with the FM70MOT amplifier module from Broadcast Concepts. Purposefully designed for FM radio transmitters, this module integrates cutting-edge technology, providing a powerful and reliable solution for your broadcasting needs.

Key Specifications:

• Model: FM70MOT
• Transistor: MRF173 MOSFET
• Frequency Range: 86 – 110MHz
• Voltage: 28 Volts
• Impedance: 50 ohms
• Power Output (Pout): 70W minimum; 80W typical
• Gain: 18dB at 80W
• Class: AB
• Power Supply: 28Vdc at 4.0 amps typical

Efficient Design and Features:

• Seamless integration with broadband matching and MRF173 MOSFET transistor.
• Versatile operation down to 10 volts without bias adjustment, shipped with a bias point set at 215mA at 28V.
• No bias adjustments or RF circuit tuning required.
• Adjust RF output power by lowering the supply voltage.

Technical Details and Resources:

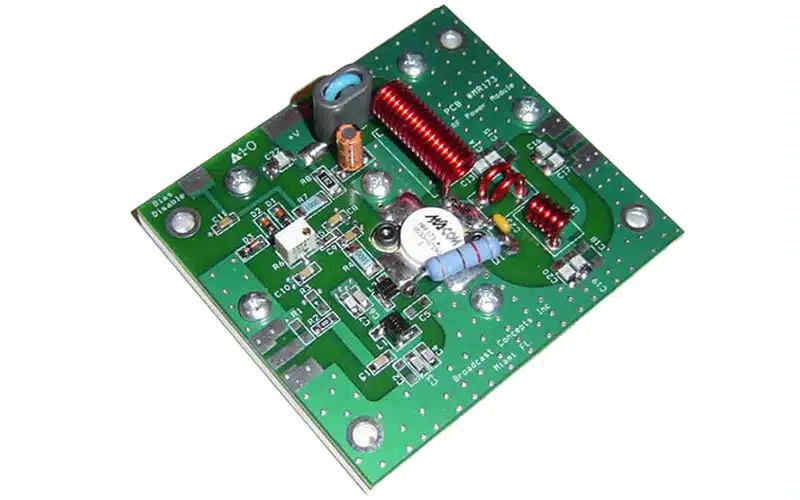

• Explore a detailed image of the amplifier here (150kb jpg format).
• Download the amplifier data sheet in PDF format (690kb).
• Mechanical information available in DXF or PDF format.
• Rigorously designed and tested using HP 8753 vector network analyzers.
• Manufactured with automatic surface mount assembly for precision.

Optimized Performance:

• This pallet is optimized for 28-volt operation; lower voltages may result in reduced efficiency output power.
• Ideal as a driver stage for enhanced versatility in your broadcasting setup.

Additional Products:

• Enhance your broadcasting setup with our high-quality 500-watt low-pass filter tailored for FM broadcast applications.

Elevate your FM broadcasting experience with the FM70MOT amplifier module from Broadcast Concepts. Download essential resources, explore detailed specifications, and witness the pinnacle of FM transmission technology. Broadcast Concepts – Where Innovation Meets Excellence in FM Amplification.
