Sonifex AVN-DIO10-12G

In stock

Original price was: $ 2,867.22.Current price is: $ 2,725.00.
Weight 0.55 kg
Dimensions 18 × 17 × 6 cm

Sonifex AVN-DIO10-12G

In stock

Original price was: $ 2,867.22.Current price is: $ 2,725.00.

Sonifex AVN-PA8

In stock

Original price was: $ 3,692.12.Current price is: $ 3,510.07.
Weight 4.16 kg
Dimensions 56 × 29 × 18 cm

Sonifex RB-VHCMD16

In stock

Original price was: $ 3,163.04.Current price is: $ 3,003.75.
Weight 2.3 kg
Dimensions 28 × 59 × 11 cm

Sonifex AVN-CU2

In stock

Original price was: $ 3,925.36.Current price is: $ 3,737.63.
Weight 2 kg
Dimensions 30 × 25 × 20 cm

Sonifex AVN-TB10AR

In stock

Original price was: $ 3,629.54.Current price is: $ 3,447.49.
Weight 2 kg
Dimensions 33 × 25 × 16 cm
Product can be split into multiple boxes

0

Ship Separately

0

specification

Technical Specification For Talkback

Audio & Power Specification

Talkback Input/Outputs
15 way male D-type plug (TB-6D & TB-6R) for 6 balanced talkback outputs and 1 balanced talkback input

Talkback Input Gain Range
9dB to -28dB adjusted by rear panel preset pot

External Inputs & Mute
9 way female D-type socket

,

for stereo balanced external input 1

,

stereo unbalanced external input 2 (or external talkback input/output)

,

talkback control output and mute input

External Input 2
Dual phono socket

,

stereo unbalanced in parallel with the 9 way female D-type socket

External Inputs Impedance
> 30kΩ unbalanced

> 40kΩ balanced

External Talkback Input Impedance
> 30kΩ unbalanced

External Talkback Output Impedance
< 80Ω unbalanced

External Microphone Input
3 pin female XLR socket

Mic Input Impedance
1.5kΩ balanced

Microphone Input Gain Range
74dB to 53dB adjusted by rear panel preset pot

Headphone Output
6.35mm (1/4”) jack

,

unbalanced stereo capable of driving 150mW into 32-600Ω headphones

Headphone Output Gain Range
9dB to <-60dB (off) adjusted by front panel pot

Station Master Remotes
25 way female D-type socket (TB-SD & TB-SR)

Loudspeaker Power
1W

Mains Input Power
85V – 264V AC

,

47-63Hz

,

max 10W

Fuse Holder
1A anti-surge fuse

Physical Specification

Dimensions (H x W x D)
6 cm x 22.4 cm 22.5 cm

Weight
2.0kg

features

Provide talkback for up to 7 locations (TB-6D & TB-6R) or 5 locations (TB-SD & TB-SR).
Brightly lit push-to-talk buttons.
Momentary or latched buttons.
Built-in electret microphone

,

with input for external microphone.
Monitoring of 2 external inputs

,

e.g. for off-air receiver.
Auto-muting

,

or mixing

,

of external inputs

,

when talkback is active.
Integrates with Sonifex S2 mixer and is compatible with other talkback systems.

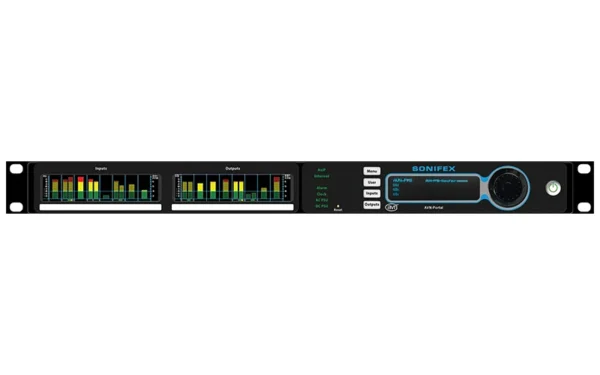

Sonifex AVN-PM8

In stock

Original price was: $ 3,896.92.Current price is: $ 3,709.18.

Sonifex RB-PD2

In stock

Original price was: $ 4,033.45.Current price is: $ 3,840.03.
Weight 2.3 kg
Dimensions 59 × 278 × 11 cm
Product can be split into multiple boxes

0

Ship Separately

0

specification

Technical Specification For RB-PD2

A/D Specification

Maximum Input Level:
+28dBu

Input Impedance:
> 10kΩ bridging

Analogue & Digital Input Levels:
Selectable +12dBu

,

+18dBu

,

+24dBu for FSD

Analogue Pre-set Input Gain Range:
Adjustable 3dB loss to 3dB gain (L & R adjust)

Signal to Noise:
Better than -101dBFS (RMS A-weighted at 24bit)

Dynamic Range:
> 110dB

Distortion & Noise:
> 96dB THD + N at 1kHz

D/A Specification

Maximum Output Level:
+24dBu

Output Impedance:
< 50Ω

Dynamic Range:
> 100dB

Analogue Output Gain Range:
Selectable -6dBu to +24dBu output level

,

ref FSD

Sampling Frequency:
Selectable 32kHz

,

44.1kHz or 48kHz

Sample Width:
Selectable 16bit or 24bit

Channels:
Stereo

Minimum Delay:
2 seconds

Maximum Delay:
Dependent on sample and bit rates selected:

32kHz:
16 bit – 55 seconds

24 bit – 27.5 seconds

44.1kHz:
16 bit – 40 seconds

24 bit – 20 seconds

48kHz:
16 bit – 37 seconds

24 bit – 18.5 seconds

Rear Panel Connections

Analogue Inputs:
2 x XLR 3 pin female (balanced) (L & R)

Analogue Outputs:
2 x XLR 3 pin male (balanced) (L & R)

Digital Inputs:
1 x AES/EBU XLR 3 pin female

Digital Outputs:
1 x AES/EBU XLR 3 pin male

Remote I/O Port:
15-way ‘D’-type plug

,

8 GPI inputs

,

6 GPI outputs

Serial Comms Port:
9-way ‘D’-type plug

Mains Input:
Filtered IEC

,

continuously rated 85 – 264VAC

,

47 – 63Hz

,

fused

,

60W peak

,

30W average

Fuse Rating:
Anti-surge fuse 2A 20 x 5mm

Front Panel Controls

Display:
Vacuum fluorescent display

Direct Control Push-Buttons:
Build Delay

,

Exit Delay

,

Cough

,

Audio Bypass & Dump/Drop

System Navigation:
Rotary selector with integral push-switch

Removable Audio Storage Device:
Compact Flash™ memory card port (supporting up to 2GB)CF™ card used must be PIO type 4 or higher

Equipment Type

RB-PD2:
Stereo profanity delay

Physical Specification

Dimensions (Raw):
48cm (W) x 15.8cm (D*) x 4.3cm (H) (1U)

19” (W) x 6.2” (D*) x 1.7” (H) (1U)

Dimensions (Boxed):
59cm (W) x 27.5cm (D) x 11cm (H)

23.2” (W) x 10.8” (D) x 4.3” (H)

Weight :
Nett: 1.7kg Gross: 2.3kg

Nett: 3.7lbs Gross: 5lbs

Sonifex AVN-TB20AR

In stock

Original price was: $ 4,078.96.Current price is: $ 3,879.85.

Sonifex AVN-TB20AD

In stock

Original price was: $ 4,078.96.Current price is: $ 3,879.85.

Sonifex AVN-MPTR

In stock

Original price was: $ 4,135.85.Current price is: $ 3,936.74.

Sonifex S0v2

In stock

Original price was: $ 4,152.92.Current price is: $ 3,953.81.
Weight 10.12 kg
Dimensions 68 × 44 × 25 cm
features

User friendly broadcast mixer.
Clear

,

simple layout with no jargon.
Designed for school & community radio.
Nine multi-function channel mixer.
Built in telephone interface.
Built in headphone volume limiter.
Large

,

simple LED volume display.
Remote output for fader starts.
Speaker muting when ‘Mics’ are on.
External mic-light switching output.
‘Programme’ and ‘record’ outputs.
‘Aux’ input for iPod or MP3 players.
Four microphone/line channels.
Four stereo line channels.
Switchable telephone/AUX channel.
Stereo USB audio to and from a PC.
Guest headphone ‘talkback’.
Reliable

,

low cost mixing solution.
Rack or flush mountable.
Integrated AC power supply.

specification

Technical Specification For S0

Mic Inputs Audio Specification

Input Impedance:
> 1k5Ω electronically balanced

Input Gain Range:
Preset pot +24dB to +67dB ref -50dBu

,

TRIM pot ± 15dB

Frequency Response:
40Hz to 20kHz –1dB

,

+0dB

Mic input E.I.N.:
-130dB with 150Ω source

Phantom Power:
+48V to each mic input (SCi selectable)

Common Mode Rejection Ratio:
> 60dB typically

Pan Range:
Off/-3dB Centre/Off

Stereo Line Inputs Audio Specification

Input Impedance:
> 20kΩ electronically unbalanced

Input Gain Range:
+10dB ref 0dBu at PGM output

,

TRIM pot ± 15dB

Frequency Response:
20Hz to 20kHz –0.5dB

,

+0dB

Noise (20Hz-20kHz):
-92dBu ref 0dB (fader down

,

no routing)

Total Harmonic Distortion:
0.015% at 1kHz

,

0.015% at 10kHz ref +8dBu

Balance Range:
± 6dB

Outputs Audio Specification

Output Impedance:
PGM output: < 50Ω electronically balanced

REC output: < 75Ω unbalanced Monitor output: < 75Ω unbalanced

Headphone output load: > 16Ω

,

recommended 250Ω

Maximum Output:
PGM output: +26dBu balancedREC output: Level:+16dBu unbalanced

Input & Output Connections

Audio Inputs:
4 x Microphone XLR-3 pin sockets

12 x Pair stereo line RCA phono sockets

1 x Pair stereo aux RCA phono sockets

1 x Stereo aux 3.5mm jack socket

Audio Outputs:

PGM:
2 x XLR-3 pin plug (balanced)

REC:
1 x Stereo pair RCA phono sockets

Monitor Inputs:
1 x Stereo pair RCA phono sockets

Monitor Outputs:
5 x 6.35mm (1/4”) stereo jack sockets

(2 x presenter

,

2 x guest

,

1 x loudspeaker)

Remote Outputs:
9 x 6.35mm (1/4”) stereo jack sockets (one per channel)

1 x 6.35mm (1/4”) stereo jack socket for light control

Telephone:
2 x RJ11 6/4 (1 x line

,

1 x handset)

USB Audio:
1 x Type-B receptacle

USB Serial:
1 x Type-B receptacle

Mains Input:
Filtered IEC

,

continuously rated 85-264VAC

,

47-63Hz

,

45w nominal

,

50w peak

Fuse Rating:
Anti-surge fuse 2A 20 x 5mm

Equipment Type

S0:
S0 radio broadcast mixer

Physical Specification

Dimensions (Raw):
48.3cm (W) x 35.6cm (D) x 12.5cm (H)

19" (W) x 14" (D) x 4.9" (H)

Dimensions (Boxed):
67cm (W) x 44cm (D) x 25cm (H)

26.4" (W) x 17.3" (D) x 9.84" (H)

Cut-Out Dimensions:
44cm (W) x 34.7cm (D)

17.32" (W) x 13.66" (D)

Weight:
Nett: 8.5kg Gross: 10.12kg

Nett: 18.7lb Gross: 22.26lb

Ship Separately

0

Product can be split into multiple boxes

0

Sonifex RB-DSD8

In stock

Original price was: $ 4,414.61.Current price is: $ 4,198.43.

Sonifex S1

In stock

Original price was: $ 5,017.64.Current price is: $ 4,773.01.

Sonifex AVN-PXH12

In stock

Original price was: $ 4,522.70.Current price is: $ 4,306.52.
