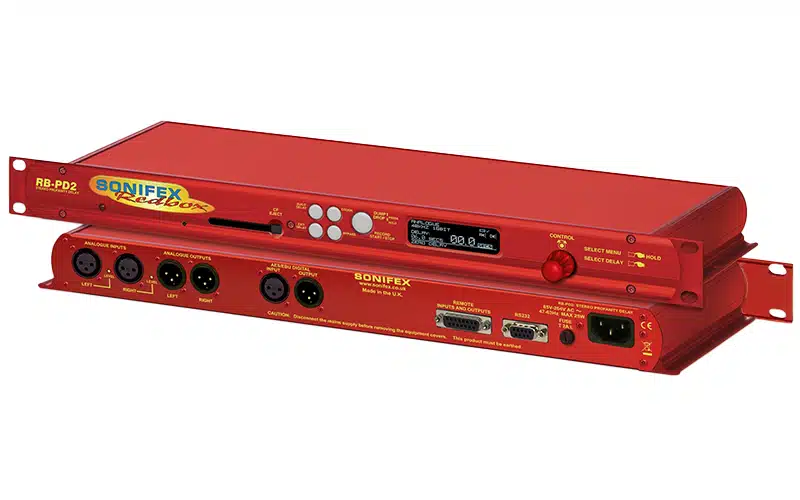

Sonifex RB-PD2 Dual Channel Profanity Delay Unit Front Panel

Sonifex RB-PD2

$ 3,798.15 $ 4,086.32

The Sonifex RB-PD2 is a dual-channel profanity delay unit offering up to 20 seconds of audio delay, with analogue and digital I/O—ideal for live radio and TV protection.

SKU: 101515 Categories: , , , Brand:Sonifex

Description

Sonifex RB-PD2 – Dual Channel Profanity Delay

The Sonifex RB-PD2 is a highly versatile dual-channel profanity delay system designed to protect live broadcast content by seamlessly muting or substituting offensive or unwanted material. Engineered for professional radio and television applications, it provides up to 20 seconds of delay per channel with a host of intuitive control features.

Built with precision audio handling and advanced fail-safe mechanisms, the RB-PD2 offers flexible integration via balanced analogue and AES/EBU digital I/O, making it the ideal solution for safeguarding your live content in real time.

✅ Key Features

  • ✅ Dual independent channels of profanity delay

  • ✅ Up to 20 seconds of delay per channel

  • ✅ Analogue and AES/EBU digital inputs and outputs

  • ✅ Flexible delay build modes: time stretch, loop, and more

  • ✅ Simple dump, bleep, and censor controls

  • ✅ Remote control interface via GPIO or serial

  • ✅ Fail-safe bypass relay for uninterrupted broadcast

  • ✅ 1U rack-mount design for space-efficient installations

💬 Protect your live broadcast with confidence using the Sonifex RB-PD2.
Get in touch today for expert advice or a tailored quote.

Additional information

Weight2.3 kg
Dimensions59 × 278 × 11 cm
Product can be split into multiple boxes

0

Ship Separately

0

specification

Technical Specification For RB-PD2 A/D Specification Maximum Input Level: +28dBu Input Impedance: > 10kΩ bridging Analogue & Digital Input Levels: Selectable +12dBu, +18dBu, +24dBu for FSD Analogue Pre-set Input Gain Range: Adjustable 3dB loss to 3dB gain (L & R adjust) Signal to Noise: Better than -101dBFS (RMS A-weighted at 24bit) Dynamic Range: > 110dB Distortion & Noise: > 96dB THD + N at 1kHz D/A Specification Maximum Output Level: +24dBu Output Impedance: < 50Ω Dynamic Range: > 100dB Analogue Output Gain Range: Selectable -6dBu to +24dBu output level, ref FSD Sampling Frequency: Selectable 32kHz, 44.1kHz or 48kHz Sample Width: Selectable 16bit or 24bit Channels: Stereo Minimum Delay: 2 seconds Maximum Delay: Dependent on sample and bit rates selected: 32kHz: 16 bit – 55 seconds 24 bit – 27.5 seconds 44.1kHz: 16 bit – 40 seconds 24 bit – 20 seconds 48kHz: 16 bit – 37 seconds 24 bit – 18.5 seconds Rear Panel Connections Analogue Inputs: 2 x XLR 3 pin female (balanced) (L & R) Analogue Outputs: 2 x XLR 3 pin male (balanced) (L & R) Digital Inputs: 1 x AES/EBU XLR 3 pin female Digital Outputs: 1 x AES/EBU XLR 3 pin male Remote I/O Port: 15-way ‘D’-type plug, 8 GPI inputs, 6 GPI outputs Serial Comms Port: 9-way ‘D’-type plug Mains Input: Filtered IEC, continuously rated 85 – 264VAC, 47 – 63Hz, fused, 60W peak, 30W average Fuse Rating: Anti-surge fuse 2A 20 x 5mm Front Panel Controls Display: Vacuum fluorescent display Direct Control Push-Buttons: Build Delay, Exit Delay, Cough, Audio Bypass & Dump/Drop System Navigation: Rotary selector with integral push-switch Removable Audio Storage Device: Compact Flash™ memory card port (supporting up to 2GB)CF™ card used must be PIO type 4 or higher Equipment Type RB-PD2: Stereo profanity delay Physical Specification Dimensions (Raw): 48cm (W) x 15.8cm (D*) x 4.3cm (H) (1U) 19” (W) x 6.2” (D*) x 1.7” (H) (1U) Dimensions (Boxed): 59cm (W) x 27.5cm (D) x 11cm (H) 23.2” (W) x 10.8” (D) x 4.3” (H) Weight : Nett: 1.7kg Gross: 2.3kg Nett: 3.7lbs Gross: 5lbs
