Sale!

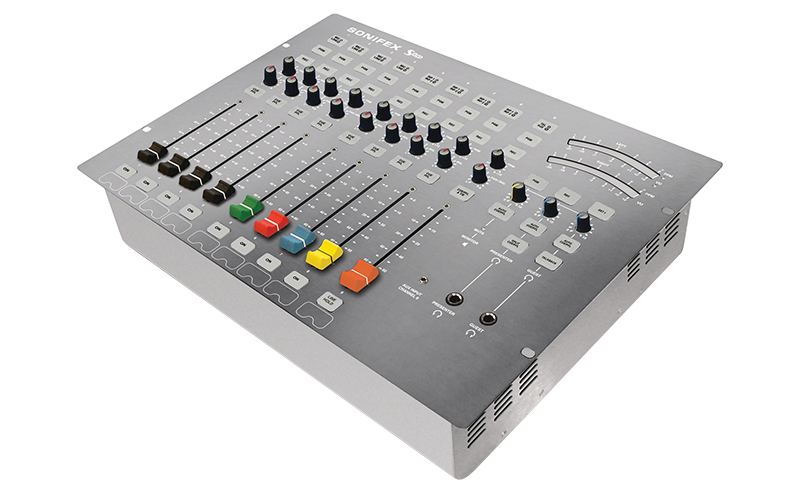

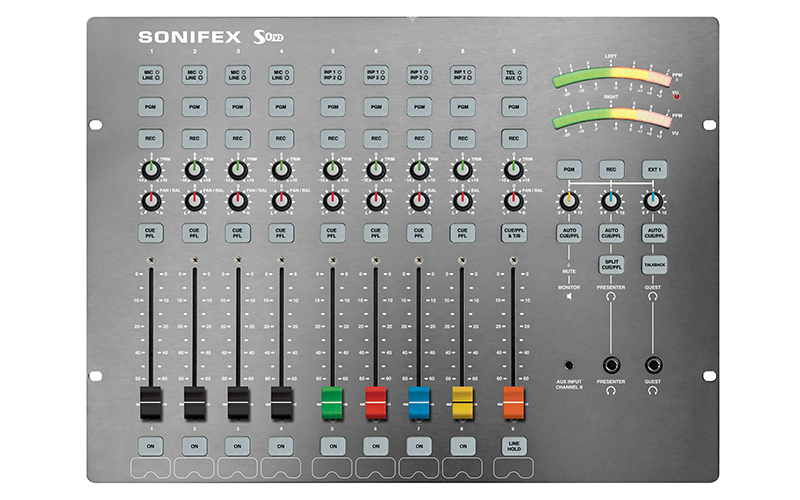

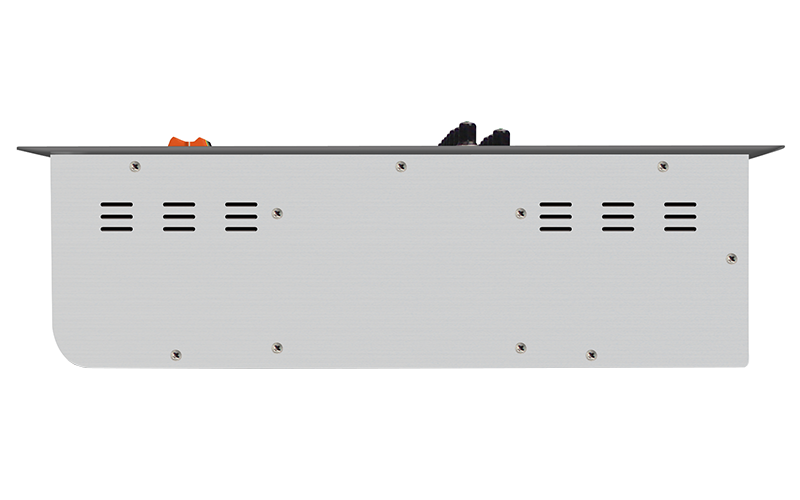

Sonifex S0v2

$ 4,005.63 $ 4,207.36

The Sonifex S0v2 is a high quality yet simple to operate radio broadcast mixer ideally suited to community radio stations, for educational purposes and for internet radio.

Description

Sonifex S0v2 Radio Broadcast Mixer – A Compact, Reliable Solution for On-Air Use

The Sonifex S0v2 is an ideal radio broadcast mixer that caters to both novice and professional users, offering an intuitive design with advanced features. Perfectly suited for community radio stations, schools, and internet broadcasters, this compact mixer provides a reliable, user-friendly solution for creating high-quality radio content.

Key Features of the Sonifex S0v2 Mixer:

  • Versatile Input Channels: The S0v2 boasts 9 input channels, including 4 microphone channels with XLR connectors, 4 stereo line channels, and an integrated telephone hybrid unit for easy call handling. It also features an auxiliary input, which can be switched between front and rear panel connections, allowing easy integration with MP3 players or other devices.
  • USB Audio for Playback and Recording: One standout feature of the S0v2 is its USB capability, which allows users to send and receive audio to and from a PC. This makes it easy to record audio on a PC or play back content directly through the mixer.
  • High-Quality Audio Processing: The S0v2 uses high-quality components and the same advanced circuitry as Sonifex’s more premium models like the S2 and S1 mixers. This ensures that the audio experience is clear, reliable, and free of distortion, even in demanding broadcasting environments.
  • Easy to Use, No Jargon: Designed with a clean, straightforward layout, the S0v2 mixer is simple to operate. With intuitive controls, clear labeling, and no confusing jargon, both beginners and experienced broadcasters can quickly master the mixer.
  • Built-in Telephone Hybrid and Skype Interface: The mixer comes with a built-in telephone hybrid unit, making it easy to handle calls during broadcasts. Additionally, a 3.5mm jack and USB input provide seamless integration with Skype for online interviews and communication.
  • Headphone and Speaker Monitoring: The S0v2 features a built-in headphone volume limiter for hearing protection. Additionally, studio speakers automatically mute when a microphone fader is open, and a mic-live sign will illuminate, signaling when the microphone is active.
  • Customizable Remote Outputs: The S0v2 includes remote outputs for each channel, offering versatile control over external equipment. The remote setup can be customized to meet specific needs, allowing for precise automation and flexibility in live broadcast settings.
  • Durable, Rack-Mountable Design: The Sonifex S0v2 has a sleek, brushed aluminum faceplate and can be mounted in either a rack or flush setup. It also includes a built-in universal power supply for added convenience and reliability.

Why Choose the Sonifex S0v2 Mixer?

The Sonifex S0v2 is a low-cost, reliable solution for radio stations that need a high-quality mixer without breaking the bank. With easy-to-use features, advanced audio processing, and flexible configurations, the S0v2 offers exceptional value for both novice and professional broadcasters.

Whether you’re running a community radio station, a school radio project, or an internet radio show, the Sonifex S0v2 mixer ensures your broadcast sounds professional every time.

Additional information

Weight10.12 kg
Dimensions68 × 44 × 25 cm
Product can be split into multiple boxes

0

Ship Separately

0

features

User friendly broadcast mixer. Clear, simple layout with no jargon. Designed for school & community radio. Nine multi-function channel mixer. Built in telephone interface. Built in headphone volume limiter. Large, simple LED volume display. Remote output for fader starts. Speaker muting when ‘Mics’ are on. External mic-light switching output. ‘Programme’ and ‘record’ outputs. ‘Aux’ input for iPod or MP3 players. Four microphone/line channels. Four stereo line channels. Switchable telephone/AUX channel. Stereo USB audio to and from a PC. Guest headphone ‘talkback’. Reliable, low cost mixing solution. Rack or flush mountable. Integrated AC power supply.

specification

Technical Specification For S0 Mic Inputs Audio Specification Input Impedance: > 1k5Ω electronically balanced Input Gain Range: Preset pot +24dB to +67dB ref -50dBu, TRIM pot ± 15dB Frequency Response: 40Hz to 20kHz –1dB, +0dB Mic input E.I.N.: -130dB with 150Ω source Phantom Power: +48V to each mic input (SCi selectable) Common Mode Rejection Ratio: > 60dB typically Pan Range: Off/-3dB Centre/Off Stereo Line Inputs Audio Specification Input Impedance: > 20kΩ electronically unbalanced Input Gain Range: +10dB ref 0dBu at PGM output, TRIM pot ± 15dB Frequency Response: 20Hz to 20kHz –0.5dB, +0dB Noise (20Hz-20kHz): -92dBu ref 0dB (fader down, no routing) Total Harmonic Distortion: 0.015% at 1kHz, 0.015% at 10kHz ref +8dBu Balance Range: ± 6dB Outputs Audio Specification Output Impedance: PGM output: < 50Ω electronically balanced REC output: < 75Ω unbalanced Monitor output: < 75Ω unbalanced Headphone output load: > 16Ω, recommended 250Ω Maximum Output: PGM output: +26dBu balancedREC output: Level:+16dBu unbalanced Input & Output Connections Audio Inputs: 4 x Microphone XLR-3 pin sockets 12 x Pair stereo line RCA phono sockets 1 x Pair stereo aux RCA phono sockets 1 x Stereo aux 3.5mm jack socket Audio Outputs: PGM: 2 x XLR-3 pin plug (balanced) REC: 1 x Stereo pair RCA phono sockets Monitor Inputs: 1 x Stereo pair RCA phono sockets Monitor Outputs: 5 x 6.35mm (1/4”) stereo jack sockets (2 x presenter, 2 x guest, 1 x loudspeaker) Remote Outputs: 9 x 6.35mm (1/4”) stereo jack sockets (one per channel) 1 x 6.35mm (1/4”) stereo jack socket for light control Telephone: 2 x RJ11 6/4 (1 x line, 1 x handset) USB Audio: 1 x Type-B receptacle USB Serial: 1 x Type-B receptacle Mains Input: Filtered IEC, continuously rated 85-264VAC, 47-63Hz, 45w nominal, 50w peak Fuse Rating: Anti-surge fuse 2A 20 x 5mm Equipment Type S0: S0 radio broadcast mixer Physical Specification Dimensions (Raw): 48.3cm (W) x 35.6cm (D) x 12.5cm (H) 19" (W) x 14" (D) x 4.9" (H) Dimensions (Boxed): 67cm (W) x 44cm (D) x 25cm (H) 26.4" (W) x 17.3" (D) x 9.84" (H) Cut-Out Dimensions: 44cm (W) x 34.7cm (D) 17.32" (W) x 13.66" (D) Weight: Nett: 8.5kg Gross: 10.12kg Nett: 18.7lb Gross: 22.26lb
