Wisycom PSS902

Main Power Supply Module

Main Power Supply Module for RBK302

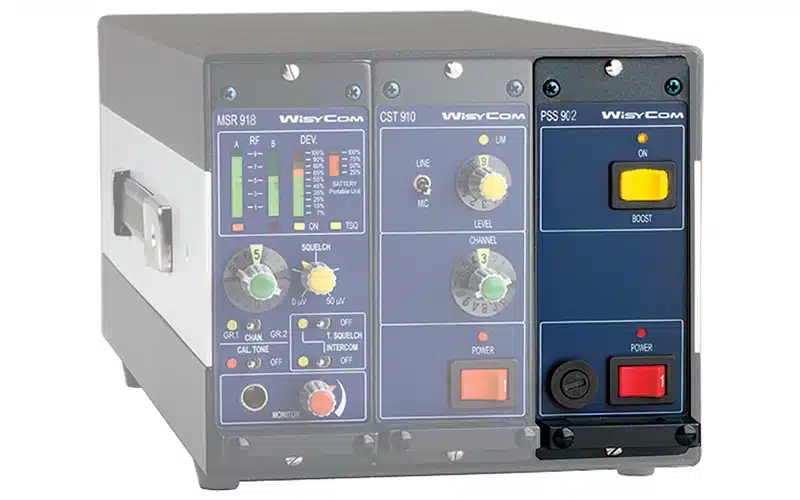

Front panel / Rear panel

1) LED INDICATION: ACTIVE ANTENNAS POWERING (yellow LED) The LED is on when the active antennas are powered. When the switch [2] is in “I” position (ON) and the LED turns off in operations or doesn’t light, it means that a short-circuit is occurred on the antenna cables. In this case, the dedicated self-resettable protection fuse cuts-off the power.

2) ACTIVE ANTENNAS POWER SWITCH

3) LED INDICATION: APPARATUS ON (red LED)

4) ON/OFF SWITCH

5) MULTIPOLE CONNECTOR output voltages: • +12 V / 2,5 A max (general + active antennas feeding) • +12 V / 0,5 A max (active antennas feeding) 6) MAINS INPUT CONNECTOR (standard = 230 VAC, others on request)

TECHNICAL SPECIFICATIONS:

• Mains input : 90 ÷ 264 VAC – 40 VA max. • Mains fuse : T2A.

• Output : 12Vdc (± 5%) – 2.5 A max. • Temperature range : -10 ÷ +55 °C.

• Dimensions : 123 × 49 × 318 mm

• Weight : 915 g approx.

• Complies with : EN 61000-3-2
