Wisycom MPA4

4-ch x 4 Power Amplifier

MPA4 rack is a quadruple power amplifier optimized for extreme linearity. It is a perfect match to amplify remote signals or works with Wisycom MFL fibre system to set up a local retransmission. Its extreme linearity allows amplifying multi-carries without facing intermodulation issues. FEATURES

• Wideband: 470-620 MHz/ 600-800MHz
• High linearity: OIP3 > 50dBm
• Redundant power supply 230/110Vac & 12 VDC

SPECIFICATIONS

Frequency ranges	470 ÷ 620 MHz or 600 ÷ 800 MHz
Input/output gain	30.5 dB
OIP3	> 50 dBm
OP1dB	32dBm
Amplifier linearity	± 0.5 dB (typical)
Noise figure	9 dB
Max Input power	0dBm with 1 carrier, -13dBm with 4 carriers (OIP3 optimize) Absolute Max Input Power: +20dBm

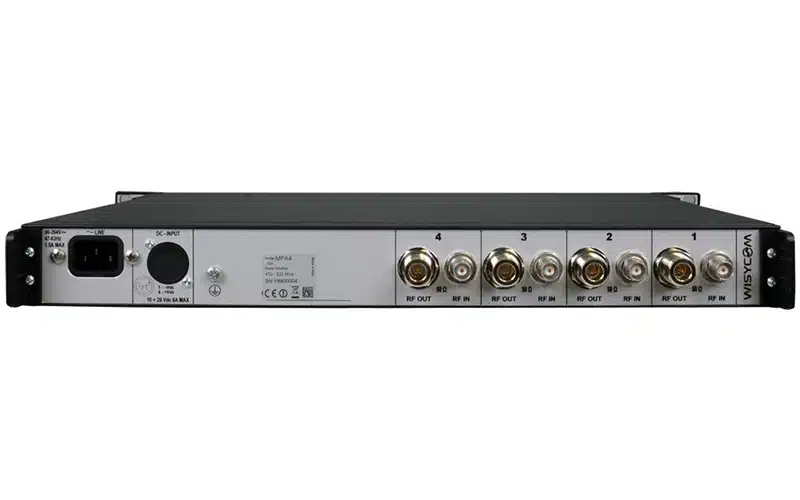

Antenna connector	4 x BNC type female input connectors 4 × N type female output connectors
RF impedance	50 Ω
Power supply	90÷ 264 VAC, 47÷ 63 Hz, 1,5A max
DC options	10÷28 VDC, 6A
Power consumption	60W
Temperature range	-10 ÷ +55 °C
Dimensions	44 × 483 × 350 (HxWxD) with brackets
Weight	5.4 kg (with 4 modules)
