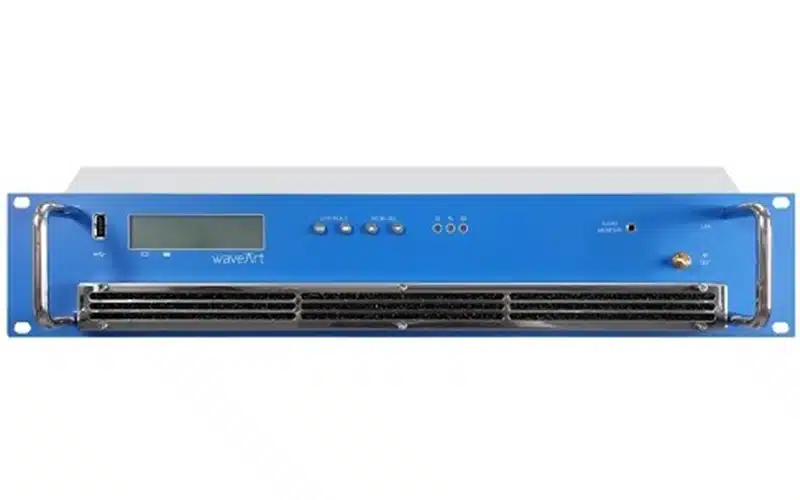

The WaveArt WAVE 30 is a 30 W digital FM transmitter offering high audio quality, efficiency and advanced remote management for professional broadcasting.
Original price was: $ 4,308.65.$ 3,875.48Current price is: $ 3,875.48.
The WaveArt WAVE 30 is a professional 30 W FM transmitter designed for broadcast operators who demand superior audio quality, energy efficiency and long-term stability. Built with advanced digital modulation technology and an intelligent control system, it delivers reliable on-air performance with minimal maintenance.
Featuring a fully digital audio chain, the WAVE 30 achieves excellent signal fidelity and low distortion. Its integrated DSP processor handles stereo encoding, MPX generation and RF control with high precision. Engineered for 24/7 operation, the unit includes comprehensive protection against VSWR, over-temperature and over-power conditions.
Remote supervision is built in: via Ethernet, SNMP or web interface, engineers can monitor parameters, adjust levels and receive alarms from any location. A front-panel LCD with navigation keys provides local setup and diagnostics. Thanks to its low-noise switch-mode power supply and optimized RF stage, the WAVE 30 achieves high efficiency and excellent spectral purity.
The compact 1U rack-mount design makes it ideal for community radio, regional transmitters or as an exciter for larger systems. Manufactured with WaveArt’s precision engineering and reliability standards, the WAVE 30 offers a cost-effective solution for modern broadcast facilities.
Key Features
30 W adjustable RF output power
Fully digital DSP audio and MPX processing
Ethernet, SNMP and web remote control
Built-in stereo encoder and RDS support
Comprehensive alarms and event logging
High efficiency and low THD
Compact 1U rack design
Rugged construction for continuous use
Technical Specifications
Frequency Range: 87.5 – 108 MHz
Output Power: 0 – 30 W adjustable
Modulation: Direct digital synthesis
Audio Inputs: Analog, AES/EBU, and IP (MPX over AES)
THD: < 0.05 % @ 1 kHz
S/N Ratio: > 90 dB
Power Supply: 230 V AC 50/60 Hz
Dimensions: 1U (483 × 44 × 300 mm)
Weight: ≈ 4.8 kg
