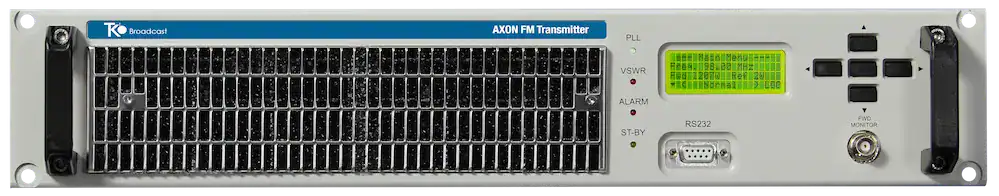

TEKO Broadcast AXON 2500W is an FM transmitter for broadcast installations, based on the compact AXON platform with configurable audio interfaces and remote-control options.
$ 7,851.00
TEKO Broadcast AXON 2500W FM Transmitter is presented here as a proposed 2.5 kW configuration within TEKO’s compact AXON transmitter family. The AXON platform integrates an FM exciter and RF amplifier in one enclosure, simplifying the station’s equipment layout. Confirm the exact model designation, continuous output rating and supplied hardware against the manufacturer’s quotation before finalising the installation specification.

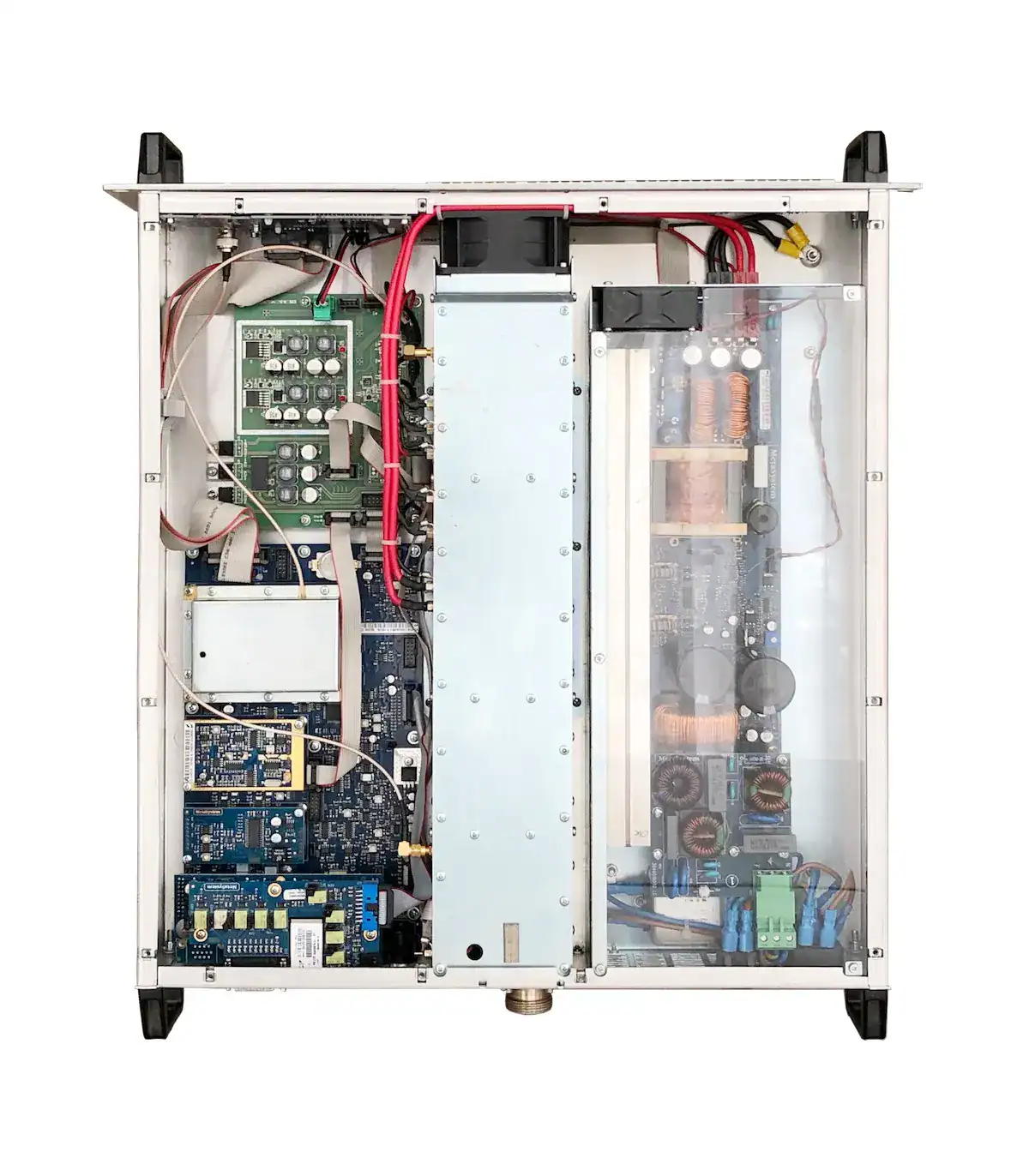

TEKO describes AXON as an integrated transmitter family covering output powers from 10 W to 5 kW. Its compact architecture is intended to simplify installation at existing transmission sites. Family features include LDMOS amplification, ducted airflow, dedicated heatsinks and a serviceable air filter. Model-specific dimensions, RF connections, power consumption and cooling clearances must be confirmed for the ordered configuration.
TEKO Broadcast AXON 2500W should be specified around the station’s existing audio chain. AXON-family options include a stereo encoder, AES/EBU digital audio, Audio over IP and a dynamic RDS encoder with TMC. Composite MPX and mono workflows are also described within the platform. Confirm the fitted interfaces and encoding facilities rather than assuming every advertised family capability is included.
The TEKO Broadcast AXON 2500W offers optional web TCP/IP and SNMP connectivity for remote access. Configurable email and Telegram notifications support status reporting, while a weekly power scheduler allows operating levels to follow a planned timetable. Published family protection functions include temperature and cooling-failure detection, amplifier fault monitoring and RF open- or short-circuit detection. Confirm the controller version and installed functions in the supplied unit.
