    SUONO ESVA2K

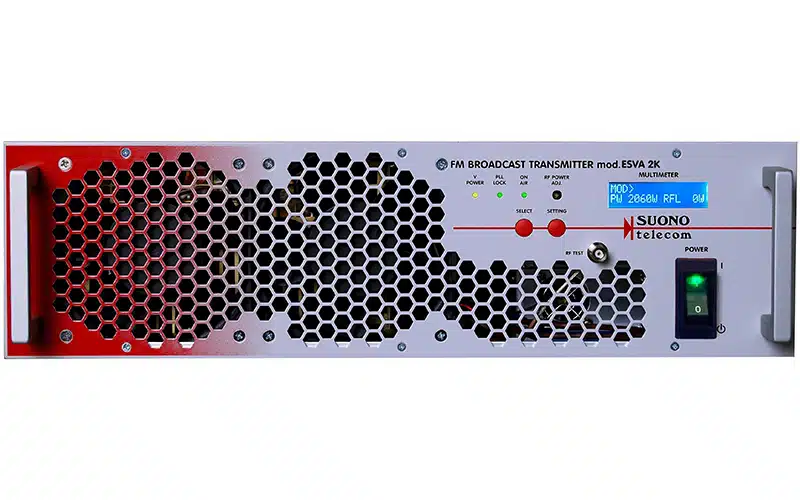

    The SUONO ESVA2K is a 2000W FM Transmitter, which is made with the most modern technology available to deliver maximum performance at minimum cost.

    Original price was: $ 6,241.98.Current price is: $ 5,950.30.

    Download PDF Brochure
    SKU: 111681 Brand: SUONO
    ESVA2K
    Original price was: $ 6,241.98.Current price is: $ 5,950.30.
    RDS Encoder option
    $ 163.34

    The SUONO ESVA2K is a 2000W FM Transmitter, which is made with the most modern technology available to deliver maximum performance at minimum cost. An internal RDS Encoder option is also available.



    Technical Facts:

    • FREQUENCY RANGE: 87.5÷108MHz (76÷88MHz on request)
    • MODULATION: FM
    • EMISSION CLASS: F3E
    • VCO TUNING: 25MHz
    • FREQUENCY STABILITY: ± 2.5 ppm
    • SYNTHESIZER STEP:10KHz
    • POWER OUTPUT: 0 ÷ 2050 Watts
    • SPURIOUS EMISSION: < – 80 dB or better
    • HARMONIC EMISSION: <-70 dB
    • STEREO SEPARATION: >55dB @ 1KHz
    • DISTORTION:< 0.1 % (Typ. 0.06%) @ 1KHz
    • BASE BAND: 30 Hz ÷ 60 kHz within 0.15 dB
    • UNWEIGHTED S/N RATIO:>80 dB (30Hz ÷ 15KHz, 50 μS RMS)
    • ASYNCHRONOUS AM S/N Ratio: > 70 dB, Ref. 100% AM 400Hz
    • SYNCHRONOUS AM S/N Ratio: > 65 dB with FM @ 75KHz @400Hz
    • PRE-EMPHASIS: 50 OR 75 μS Internally selectable
    • RF OUT CONNECTOR: NF 50 Ohm
    • MPX INPUT CONNECTOR: BNC-F
    • MPX INPUT IMPEDANCE: 2KOhm
    • SCA INPUT CONNECTOR: 3 BNC-F
    • COOLING: Forced air by two brushless fans
    • OP.TEMPERATURE RANGE:- 10 ÷ +45 °C
    • MAXIMUM HUMIDITY: 90 %
    • AC SUPPLY: 100 ÷ 240 VAC – 47 ÷ 63 Hz
    • DIMENSION: 3 unit rack 19”, 570 mm depth
    • WEIGHT: 18 Kg
