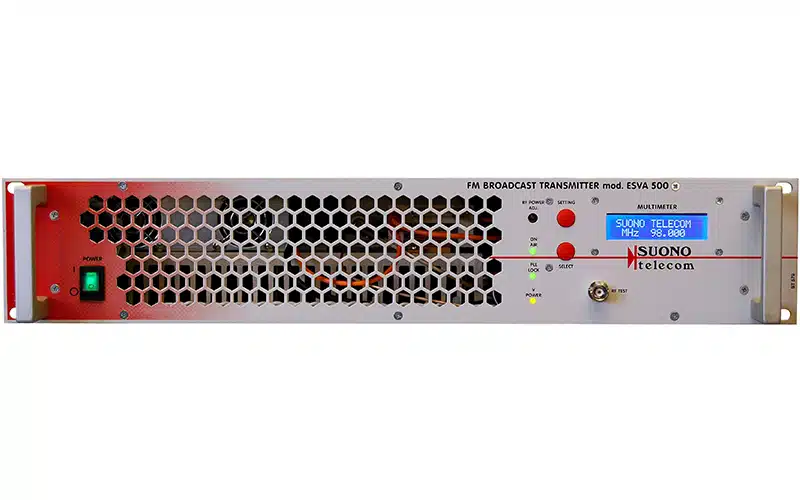

SUONO ESVA500
SUONO ESVA500 Original price was: $ 3,409.36.Current price is: $ 2,527.63.
SUONO ESVA250 - Image 1
Click to enlarge

    SUONO ESVA250

    Original price was: $ 2,586.41.Current price is: $ 1,910.42.

    SKU: 109578 Brand: SUONO
    ESVA250
    Original price was: $ 2,586.41.Current price is: $ 1,910.42.
    RDS Encoder option
    $ 164.59

    SUONO ESVA250

    The SUONO ESVA250 is.a 250W FM Transmitter (Mono/MPX), which is made with the most modern technology available to deliver maximum performance at minimum cost.



    Technical Specifications:

    • FREQUENCY RANGE:87.5÷108MHz (76÷88MHz on request)
    • MODULATION: FM
    • EMISSION CLASS: F3E
    • VCO TUNING: 25MHz
    • FREQUENCY STABILITY: ± 2.5 ppm
    • SYNTHESIZER STEP:10KHz
    • POWER OUTPUT: 0 ÷ 250 W (max.270W)
    • SPURIOUS EMISSION: < – 80 dB or better
    • HARMONIC EMISSION: <-70 dB
    • STEREO SEPARATION: >55dB @ 1KHz
    • DISTORTION: < 0.1 % (Typ. 0.06%) @ 1KHz
    • BASE BAND: 30 Hz ÷ 60 kHz within 0.15 dB
    • UNWEIGHTED S/N RATIO: > 80 dB (30Hz ÷ 15KHz, 50μS RMS)
    • ASYNCHRONOUS AM S/N Ratio: > 70 dB, Ref. 100% AM 400Hz
    • SYNCHRONOUS AM S/N Ratio: > 65 dB with FM @ 75KHz @400Hz
    • PRE-EMPHASIS: 50 OR 75 μS Internally selectable
    • RF OUT CONNECTOR: NF 50 Ohm
    • MPX INPUT CONNECTOR:BNC-F
    • MPX INPUT IMPEDANCE: 2KOhm
    • SCA INPUT CONNECTOR: 3 BNC-F
    • COOLING: Forced air by brushless fan
    • OP.TEMPERATURE RANGE: – 10 ÷ +45 °C
    • MAXIMUM HUMIDITY: 90 %
    • AC SUPPLY: 100 ÷ 240 VAC – 47 ÷ 63 Hz
    • DIMENSION: 2 unit rack 19”, 435 mm depth
    • WEIGHT: 12 Kg
