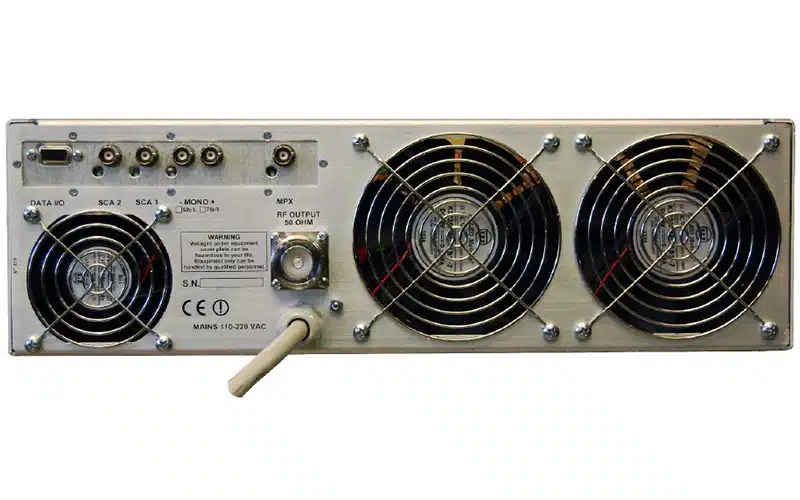

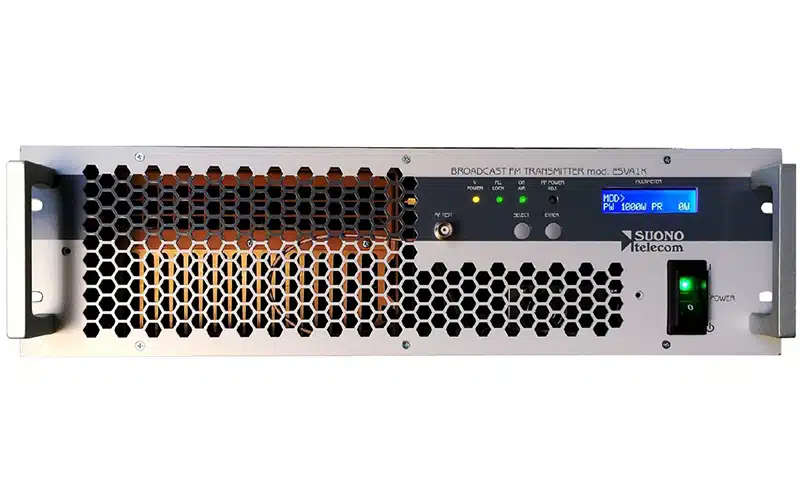

SUONO ESVA1K

The SUONO ESVA1K is a 1000W FM Transmitter (Mono/MPX), which is made with the most modern technology available to deliver maximum performance at minimum cost. An internal RDS Encoder option is also available.

Technical Facts: FREQUENCY RANGE: 87.5÷108MHz (76÷88MHz on request) MODULATION: FM EMISSION CLASS: F3E VCO TUNING: 25MHz FREQUENCY STABILITY: ± 2.5 ppm SYNTHESIZER STEP:10KHz POWER OUTPUT: 0 ÷ 130 Watts SPURIOUS EMISSION: < – 80 dB or better HARMONIC EMISSION: <-70 dB STEREO SEPARATION: >55dB @ 1KHz DISTORTION:< 0.1 % (Typ. 0.06%) @ 1KHz BASE BAND: 30 Hz ÷ 60 kHz within 0.15 dB UNWEIGHTED S/N RATIO:>80 dB (30Hz ÷ 15KHz, 50 μS RMS) ASYNCHRONOUS AM S/N Ratio: > 70 dB, Ref. 100% AM 400Hz SYNCHRONOUS AM S/N Ratio: > 65 dB with FM @ 75KHz @400Hz PRE-EMPHASIS: 50 OR 75 μS Internally selectable RF OUT CONNECTOR: NF 50 Ohm MPX INPUT CONNECTOR: BNC-F MPX INPUT IMPEDANCE: 2KOhm SCA INPUT CONNECTOR: 3 BNC-F COOLING: Forced air by two brushless fans OP.TEMPERATURE RANGE:- 10 ÷ +45 °C MAXIMUM HUMIDITY: 90 % AC SUPPLY: 100 ÷ 240 VAC – 47 ÷ 63 Hz DIMENSION: 3 unit rack 19”, 570 mm depth WEIGHT: 18 Kg
