Sonifex CM-AESB3

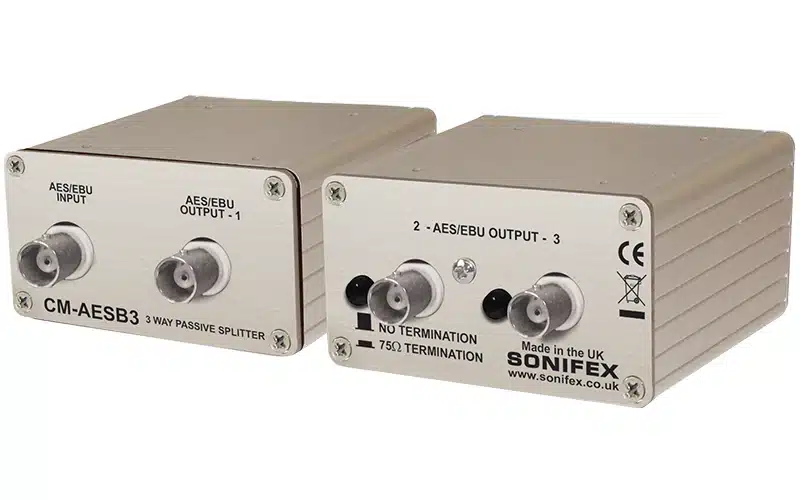

The Sonifex CM-AESB3 is a passive “one-to-three” splitter housed in a small but robust aluminium box. It is designed to split a single AES3ID digital audio source to up to three destinations, using female BNC connectors. Particularly useful in a video production and broadcast environment, the CM-AESB3 splits the input signal through high quality transformers. 75 Ω termination can be applied, if desired, to unconnected outputs to maintain optimum carrier parameters. The CM-AESB3 requires no power to operate, ensuring your audio remains connected from source to destination(s) without interruption from power failures.

Technical Specification For CM-AESB3
CM-AESB3: Cable Drive Capability
Cumulative cable drive capability of 100 m of 75 Ω coaxial cable at sample rates up to and including 96kHz.
Connections

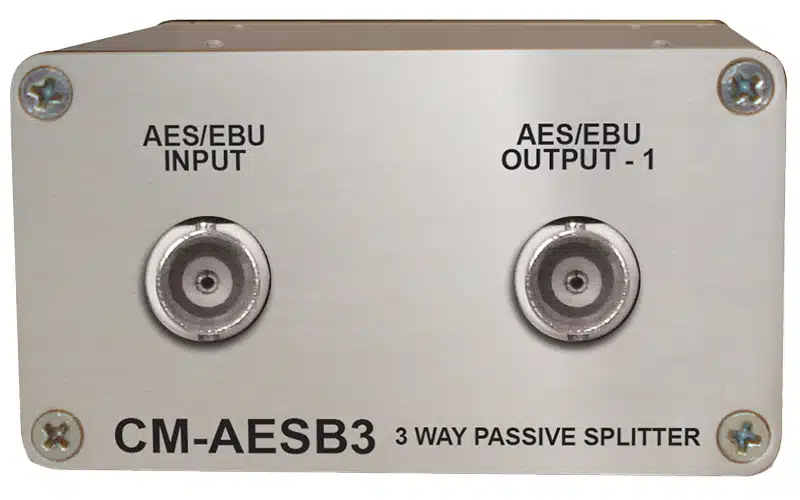

Inputs:	1 x BNC female

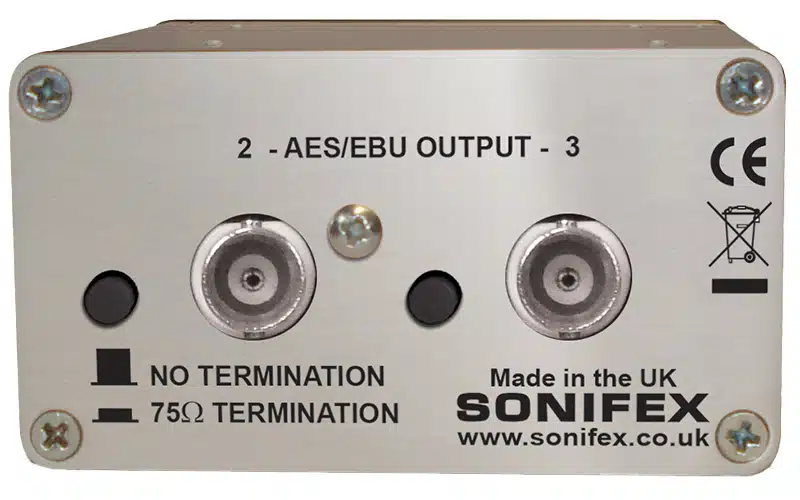

Outputs:	3 x BNC female
Equipment Type
CM-AESB3	3 Way passive AES3ID splitter with BNC connectors
Physical Specification
Dimensions (Raw):	7.7 cm (W) x 8.3 cm (D) x 4.2 cm (H) 3.0” (W) x 3.3” (D) x 1.7” (H)
Dimensions (Boxed):	22.9 cm (W) x 12.7 cm (D) x 7.6 cm (H) 9.0” (W) x 5.0” (D) x 3.0” (H)
Weight:	Nett: 0.22 kg Gross: 0.33 kg Nett: 0.49lbs Gross: 0.73lbs
