Sonifex AVN-DIO09

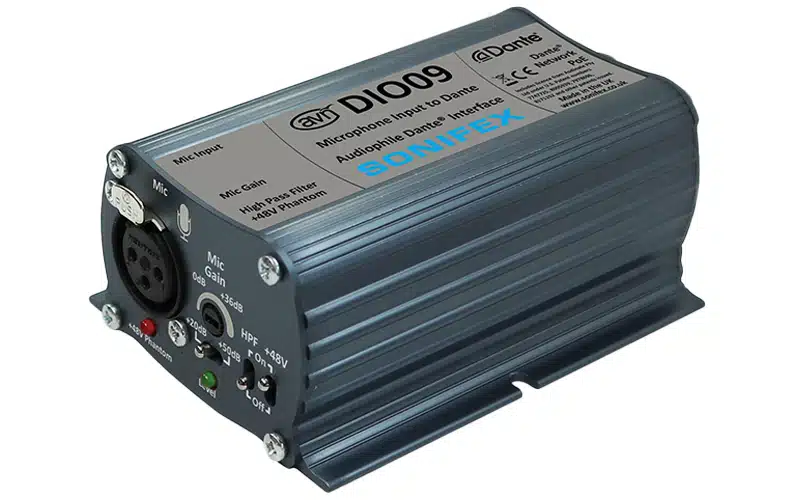

The Sonifex AVN-DIO09 is a Microphone input to Dante converter in the Sonifex DIO range of Dante input/output devices with A/D circuitry offering a world-class E.I.N. of 129dB.
Original price was: $607.00.$574.00Current price is: $574.00.
Description
The Sonifex AVN-DIO09 is a Microphone input to Dante converter in the Sonifex DIO range of Dante input/output devices with A/D circuitry offering a world-class E.I.N. of 129dB. It features a single high quality mic preamp with balanced XLR input, coarse and fine gain controls, high pass filter, phantom power, tricolour level LED and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.
All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.
The AVN-DIO09 has coarse and fine mic gain. The coarse gain is set using a toggle switch, providing 20dB/50dB of gain, and the fine gain set using a trimmer adjustment tool, or small flat blade screwdriver, adding between 0dB and 36dB of additional gain. An on/off toggle switch turns the high pass filter on or off and when enabled, it acts on frequencies below 125Hz at a roll-off of 6dB/octave.
Phantom power is enabled/disabled via a toggle switch on the front panel and when enabled, a 48V DC supply is provided to power an appropriate microphone. A red LED illuminates to show when phantom is enabled.
A front panel audio level LED helps to set the gain and shows the audio level being sent to the Dante network.
Note: If using a phantom powered microphone, it may be necessary to earth the unit using the rear panel earth tag to eliminate mains hum, depending on the nature of your PoE supply.
- 1 x balanced microphone input on XLR socket with latch lock.
- Neutrik EtherCon® Ethernet connection.
- Single turn pot setting fine mic gain (0dB – 36dB).
- Coarse mic gain switch (+20db/+50dB).
- High pass filter on/off switch.
- Phantom power on/off switch.
- Phantom power LED indicator.
- Level LED indicator.
- Fully Dante compliant device.
- AES67 compatible.
- Dante Domain Manager compliant.
- Ultra-high quality, wide dynamic range A/D conversion.
- Powered via PoE (Power over Ethernet).
Technical Specification For AVN-DIO09 | |||
Microphone XLR Input Pin-out | |||
| Pin | Function | ||
| 1 | Chassis Ground | ||
| 2 | Input Phase | ||
| 3 | Input Non Phase | ||
Earthing Point | |||
| Single earth tag. | |||
Level LED Thresholds | |||
| Off: | Level is under -38dBFS (-20dBu) | ||
| Green: | Level is between -38dBFS (-20dBu) and -18dBFS (0dBu) | ||
| Amber: | Level is between -18dBFS (0dBu) and -10dBFS (+8dBu) | ||
| Red: | Level is above -10dBFS (+8dBu). | ||
Microphone Input – XLR | |||
| Parameter | Description | ||
| Input Impedance: | 2.2 kΩ balanced | ||
| Maximum Input Level: | — 68dBu (max gain) to -8dBu (min gain) | ||
| Gain: | Adjustable 20dB to 86dB | ||
| Frequency Response: | 20Hz to 20kHz, +0/-0.5dB (ref 1kHz) | ||
| High Pass Filter Response: | Fc = 125Hz @ 6dB per octave | ||
| THD+N: | <0.01%, -32dBu input, 40dB gain, 20Hz to 20kHz, 20kHz BW | ||
| E.I.N.: | 129dBu, 20kHz BW, max gain, Rs=200Ω | ||
| Common Mode Rejection: | >60dB @ 1kHz | ||
| Phantom Power: | +48V ± 4V | ||
Dante | |||
| Parameter | Description | ||
| Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz | ||
| Encoding: | PCM 16, PCM 24, PCM 32 | ||
PoE Power | |||
| Standard | 802.3af | ||
| Class | 0 | ||
| PD Power Range | 0.44 W to 12.94 W | ||
| Typical PSE Power Usage | 4 W | ||
| Max PSE Power Usage | 15.4 W | ||
Equipment Type | |||
| AVN-DIO09: | Microphone Input to Dante® | ||
Physical Specification | |||
| Dimensions (Raw): | 10.6 cm (W) x 7.3 cm (D) x 4.3 cm (H) 4.2” (W) x 2.9” (D) x 1.7” (H) | ||
| Dimensions (Boxed): | 17.4 cm (W) x 9.5 cm (D) x 5.6 cm (H) 6.9” (W) x 3.7” (D) x 2.2” (H) | ||
| Weight: | Nett: 0.2 kg Gross: 0.3 kg Nett: 0.44lbs Gross: 0.66lbs | ||
