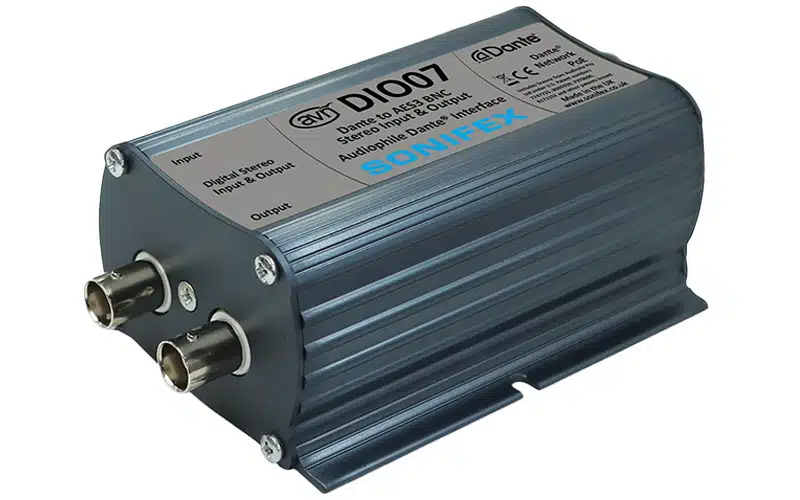

The Sonifex AVN-DIO07 is a Dante to AES-3id digital input and output audio convertor in the Sonifex DIO range of Dante input/output devices. It features stereo AES-3id digital audio inputs and outputs on BNC connectors, and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.
All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.
- 1 x stereo AES-3id BNC input.
- 1 x stereo AES-3id BNC output.
- Neutrik EtherCon® Ethernet connection.
- Fully Dante compliant device.
- AES67 compatible.
- Dante Domain Manager compliant.
- Ultra-high quality, wide dynamic range conversion.
- Powered via PoE (Power over Ethernet).
Technical Specification For AVN-DIO07 |
|||
AES-3id BNC Input & Output Pin-out |
|||
| Pin | Function | ||
| Inner: | Signal | ||
| Outer: | Chassis Ground | ||
AES-3id Input – BNC |
|||
| Parameter | Description | ||
| Input Impedance: | 75 Ω unbalanced | ||
| Input Format: | AES-3id | ||
| Supported Sample Rates: | 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz | ||
AES-3id Output – BNC |
|||
| Parameter | Description | ||
| Output Impedance: | 75 Ω unbalanced | ||
| Output Format: | AES-3id | ||
| Supported Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz | ||
Dante |
|||
| Parameter | Description | ||
| Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz | ||
| Encoding: | PCM 16, PCM 24, PCM 32 | ||
PoE Power |
|||
| Standard | 802.3af | ||
| Class | 0 | ||
| PD Power Range | 0.44 W to 12.94 W | ||
| Typical PSE Power Usage | 2 W | ||
| Max PSE Power Usage | 15.4 W | ||
Equipment Type |
|||
| AVN-DIO07: | Dante® to AES-3id BNC Stereo Input & Output | ||
Physical Specification |
|||
| Dimensions (Raw): | 11.6 cm (W) x 7.3 cm (D) x 4.3 cm (H) 4.6” (W) x 2.9” (D) x 1.7” (H) |
||
| Dimensions (Boxed): | 17.4 cm (W) x 9.5 cm (D) x 5.6 cm (H) 6.9” (W) x 3.7” (D) x 2.2” (H) |
||
| Weight: | Nett: 0.2 kg Gross: 0.3 kg Nett: 0.44lbs Gross: 0.66lbs |
||
