Sonifex AVN-DIO06
The Sonifex AVN-DIO06 is a Dante to AES3 digital input and output audio convertor in the Sonifex DIO range of Dante input/output devices.
Original price was: $458.00.$436.00Current price is: $436.00.
Description

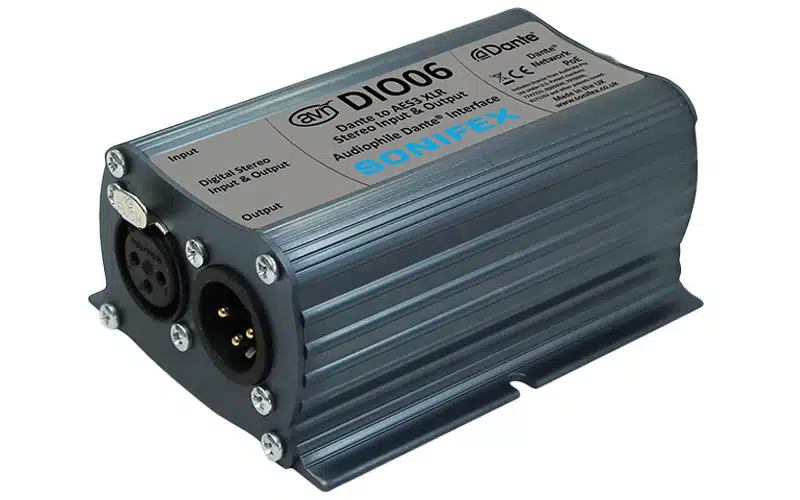

The Sonifex AVN-DIO06 is a Dante to AES3 digital input and output audio convertor in the Sonifex DIO range of Dante input/output devices. It features stereo AES3 digital audio inputs and outputs on Neutrik XLR connectors, and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.
All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.
- 1 x stereo AES3 XLR input.
- 1 x stereo AES3 XLR output.
- Neutrik EtherCon® Ethernet connection.
- Fully Dante compliant device.
- AES67 compatible.
- Dante Domain Manager compliant.
- Ultra-high quality, wide dynamic range conversion.
- Powered via PoE (Power over Ethernet).
Technical Specification For AVN-DIO06 | |||
AES3 XLR Stereo Input Pin-out | |||
| Pin | Function | ||
| 1 | Chassis Ground | ||
| 2 | Input Phase | ||
| 3 | Input Non Phase | ||
AES3 XLR Stereo Output Pin-out | |||
| Pin | Function | ||
| 1 | Chassis Ground | ||
| 2 | Output Phase | ||
| 3 | Output Non Phase | ||
AES3 Input – XLR | |||
| Parameter | Description | ||
| Input Impedance: | 110Ω balanced | ||
| Input Format: | AES3 | ||
| Supported Sample Rates: | 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz | ||
AES3 Output – XLR/Terminal | |||
| Parameter | Description | ||
| Output Impedance: | 110 Ω balanced | ||
| Output Format: | AES3 | ||
| Supported Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz | ||
Dante | |||
| Parameter | Description | ||
| Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz | ||
| Encoding: | PCM 16, PCM 24, PCM 32 | ||
PoE Power | |||
| Standard | 802.3af | ||
| Class | 0 | ||
| PD Power Range | 0.44 W to 12.94 W | ||
| Typical PSE Power Usage | 2 W | ||
| Max PSE Power Usage | 15.4 W | ||
Equipment Type | |||
| AVN-DIO06: | Dante® to AES3 XLR Stereo Input & Output | ||
Physical Specification | |||
| Dimensions (Raw): | 10.6 cm (W) x 7.3 cm (D) x 4.3 cm (H) 4.2” (W) x 2.9” (D) x 1.7” (H) | ||
| Dimensions (Boxed): | 17.4 cm (W) x 9.5 cm (D) x 5.6 cm (H) 6.9” (W) x 3.7” (D) x 2.2” (H) | ||
| Weight: | Nett: 0.2 kg Gross: 0.3 kg Nett: 0.44lbs Gross: 0.66lbs | ||
