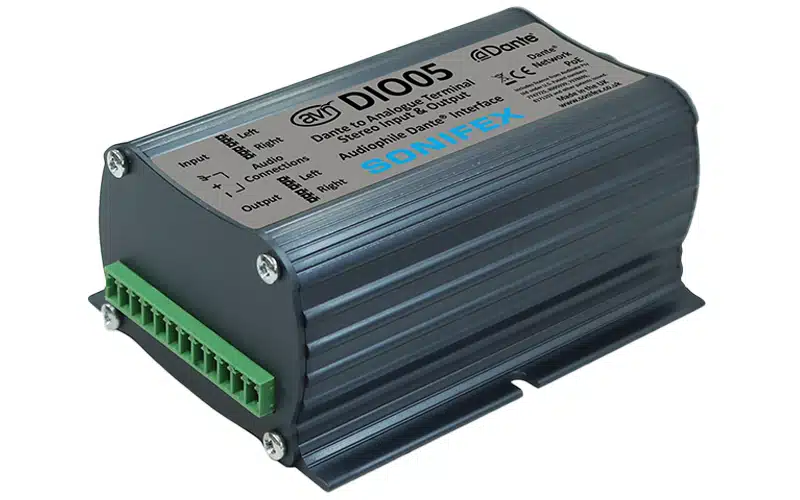

The Sonifex AVN-DIO05 is a Dante to analogue terminal block input and output convertor in the Sonifex DIO range of Dante input/output devices. It features balanced stereo analogue inputs and outputs on a terminal block connector and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.
The A/D and D/A circuitry offers 120dB of dynamic range – ten times better than similar competing products. All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.
- 12 x terminal block connections (balanced stereo inputs and outputs).
- Neutrik EtherCon® Ethernet connection.
- Fully Dante compliant device.
- AES 67 compatible.
- Dante Domain Manager compliant.
- Ultra-high quality, wide dynamic range D/A and A/D conversion.
- Powered via PoE (Power over Ethernet).
Technical Specification For AVN-DIO05 |
|||
Analogue Terminal Stereo Input & Output Pin-out |
|||
| Pin | Function | Pin | Function |
| 1 | Chassis Ground | 7 | Chassis Ground |
| 2 | Left Input Phase | 8 | Left Output Phase |
| 3 | Left Input Non Phase | 9 | Left Output Non Phase |
| 4 | Chassis Ground | 10 | Chassis Ground |
| 5 | Right Input Phase | 11 | Right Output Phase |
| 6 | Right Input Non Phase | 12 | Right Output Non Phase |
Line Input – Terminal Block |
|||
| Parameter | Description | ||
| Input Impedance: | >10kΩ balanced | ||
| 0dBFS Line-Up: | +18dBu | ||
| Frequency Response: | 20Hz to 20kHz, +0/-0.2dB (600 Ω load, ref 1kHz) | ||
| THD+N: | <-118dBFS, -12dBu, 20Hz to 20kHz, 20kHz BW | ||
| Dynamic Range: | 120dB, 20kHz BW, Rs=200Ω | ||
| Crosstalk: | <-110dB | ||
| Common Mode Rejection: | >60dB @ 1kHz | ||
Line Output – Terminal Block |
|||
| Parameter | Description | ||
| Output Impedance: | <200 Ω balanced | ||
| 0dBFS Line-Up: | +18dBu | ||
| Frequency Response: | 20Hz to 20kHz, +0/-0.5dB (600 Ω load, ref 1kHz) | ||
| THD+N: | <-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW | ||
| Dynamic Range: | 120dB, 20kHz BW | ||
| Crosstalk: | <-110dB | ||
Dante |
|||
| Parameter | Description | ||
| Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz | ||
| Encoding: | PCM 16, PCM 24, PCM 32 | ||
PoE Power |
|||
| Standard | 802.3af | ||
| Class | 0 | ||
| PD Power Range | 0.44 W to 12.94 W | ||
| Typical PSE Power Usage | 5 W | ||
| Max PSE Power Usage | 15.4 W | ||
Equipment Type |
|||
| AVN-DIO05: | Dante® to Analogue Terminal Block Stereo Input & Output | ||
Physical Specification |
|||
| Dimensions (Raw): | 10.6 cm (W) x 7.3 cm (D) x 4.3 cm (H) 4.2” (W) x 2.9” (D) x 1.7” (H) |
||
| Dimensions (Boxed): | 17.4 cm (W) x 9.5 cm (D) x 5.6 cm (H) 6.9” (W) x 3.7” (D) x 2.2” (H) |
||
| Weight: | Nett: 0.2 kg Gross: 0.3 kg Nett: 0.44lbs Gross: 0.66lbs |
||
