RigExpert Stick Pro Antenna and Cable Analyser – 0.1–600 MHz

RigExpert Stick Pro Antenna and Cable Analyser provides portable vector measurements from 0.1–600 MHz for antenna adjustment, installation checks and RF troubleshooting. It measures standing-wave ratio, return loss and complex impedance, helping users assess resonance and matching across HF, VHF and UHF frequencies. The pocket-sized instrument weighs 185 g with its battery installed, making it practical for workbench testing and visits to antenna installations.

Antenna and Impedance Measurements

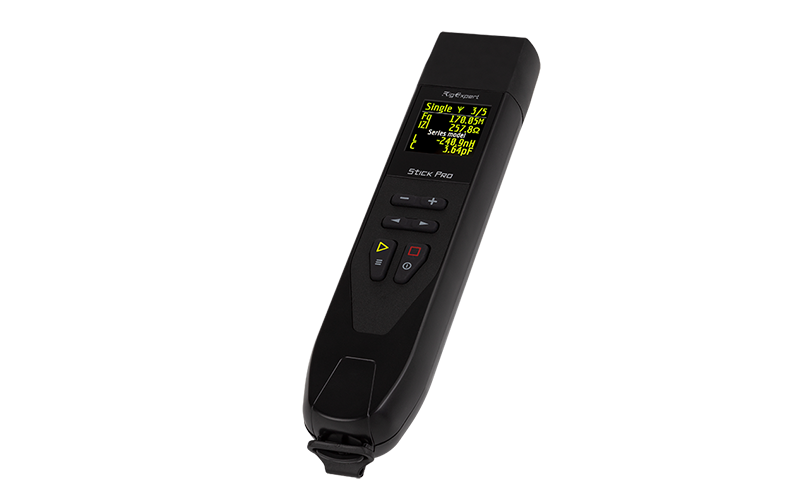

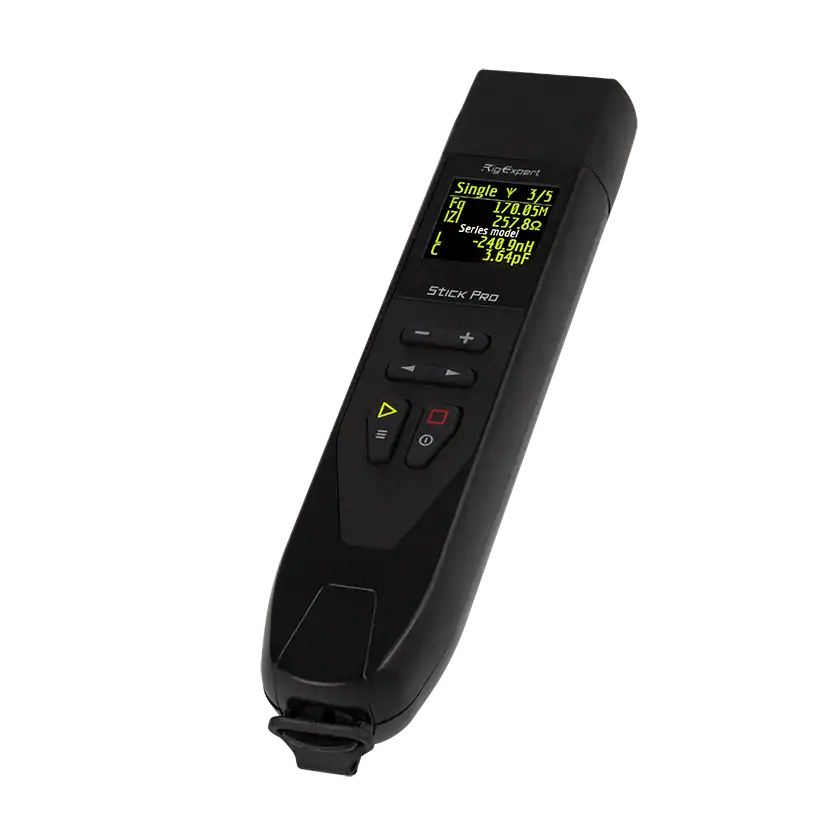

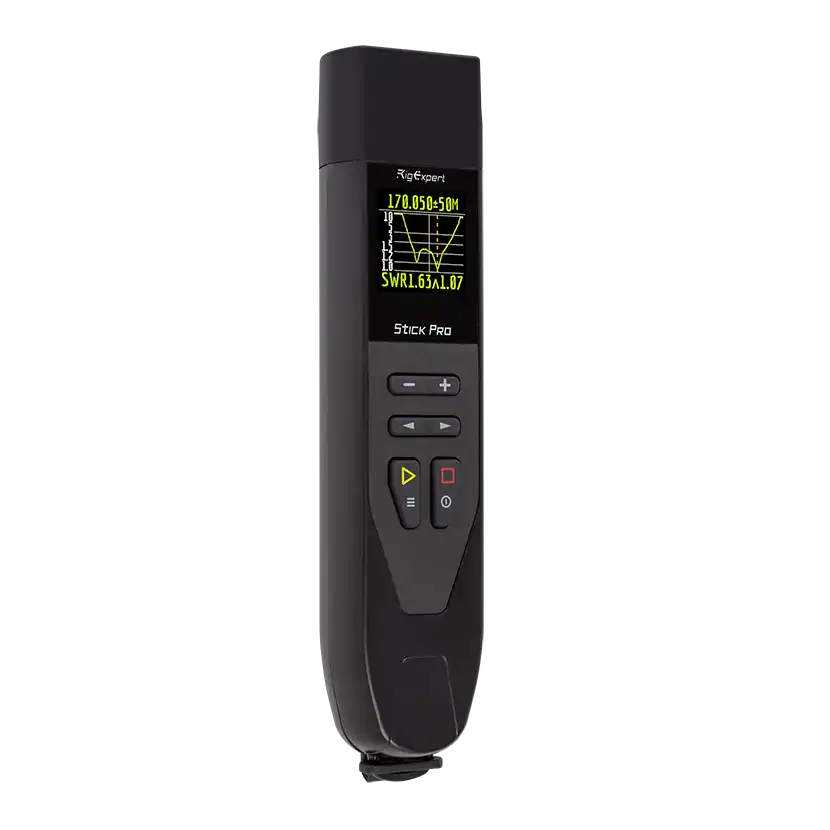

RigExpert Stick Pro combines numerical readings at a single frequency with 100-point SWR charts across a selected sweep. Measurements include resistance, reactance, impedance, inductance, capacitance, magnitude and phase angle. Frequency entry has 1 kHz resolution, allowing detailed checks around the intended operating frequency. Multé mode provides a quick assessment of multiband antennas, while selectable reference impedances support measurement arrangements beyond a standard 50-ohm system.

Colour Display and Connectivity

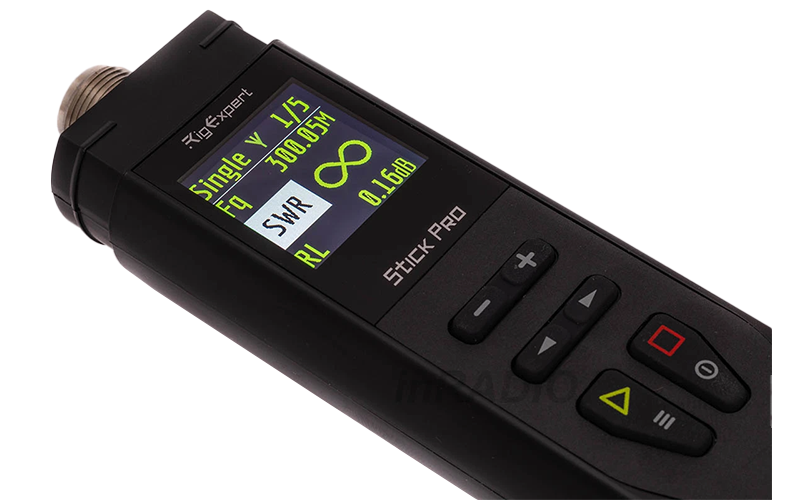

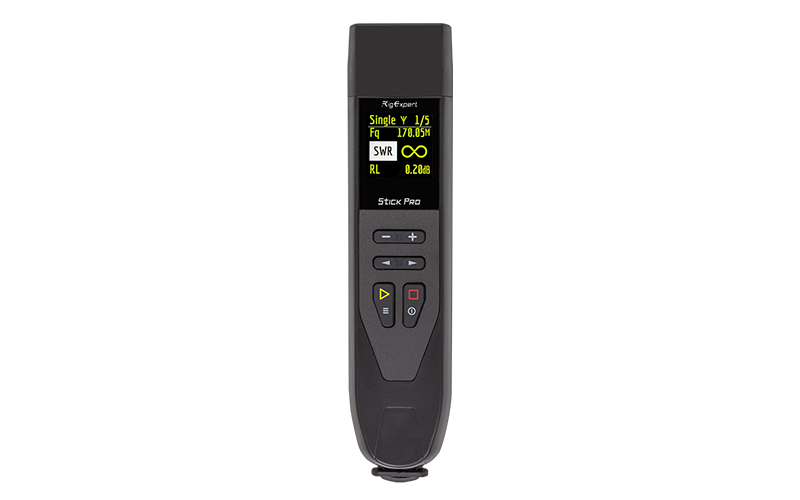

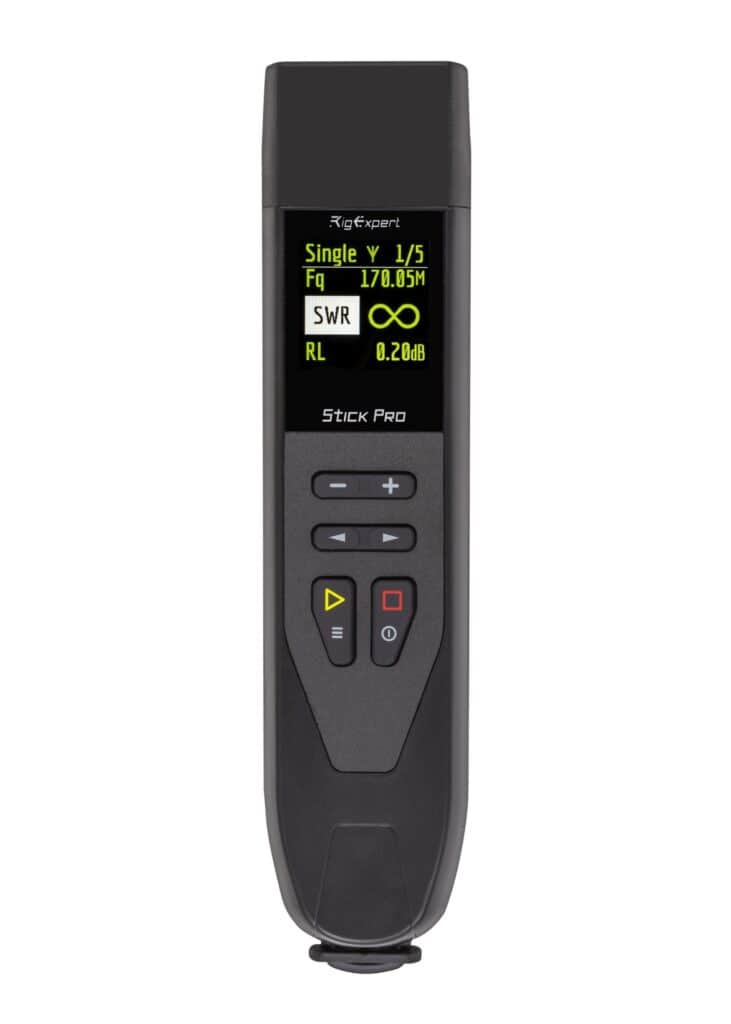

The RigExpert Stick Pro 220 × 220-pixel colour TFT display presents measurements directly on the analyser. Its intuitive interface and built-in help support local operation without requiring a connected computer. USB Type-C provides a wired interface and battery charging, while Bluetooth 4.2 BLE enables communication with compatible software and devices. The N-type RF connector provides the connection to the antenna, feeder or component under test.

Rechargeable Field Operation

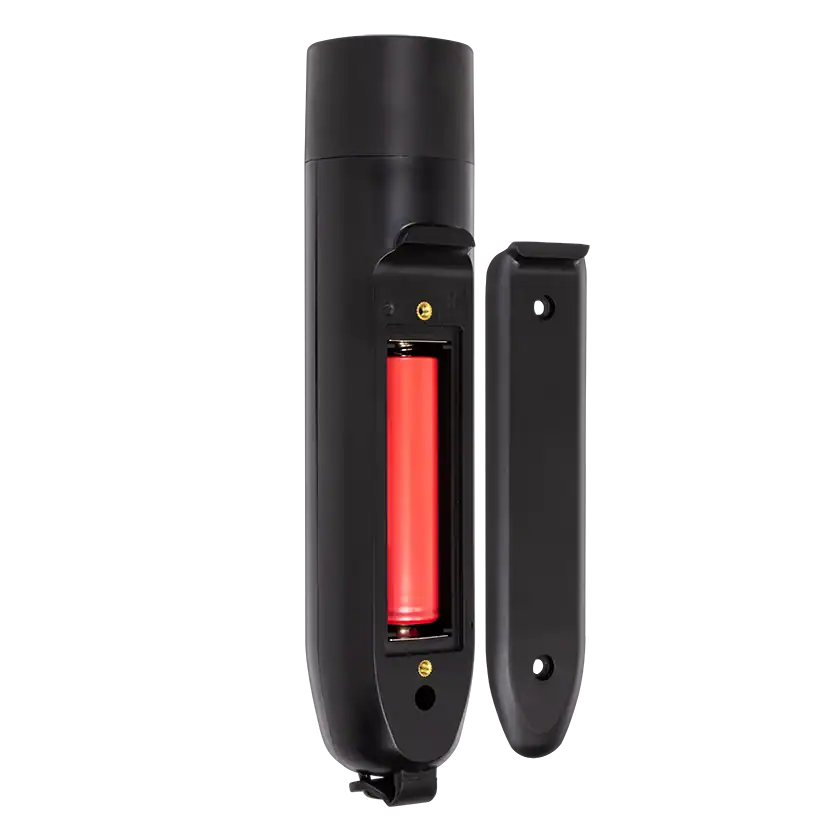

A supplied 18650 lithium-ion battery supports up to 16 hours of continuous measurements according to the factory datasheet. Charging takes approximately three hours using a charger. The compact, splash- and dust-resistant enclosure supports use away from the workshop, while the included neck strap assists carrying. Disconnect transmitters before testing and follow the manufacturer’s safety instructions. Its low-level test signal allows passive systems to be assessed without transmitting normal operating power through them.

Basic Specifications

• Official factory MPN: STICK-PRO; model: Stick Pro.
• Frequency range: 0.1–600 MHz; entry resolution: 1 kHz.
• SWR range: 1–100 numerical; 1–10 graphical.
• RF connection: N-type; output: −10 dBm into 50 ohms.
• Display: colour TFT, 220 × 220 pixels.
• Interfaces: USB 2.0 Type-C and Bluetooth 4.2 BLE.
• Power: rechargeable 18650 lithium-ion battery.
• Dimensions: 185 × 40 × 33 mm.
• Net weight: 185 g, including battery.

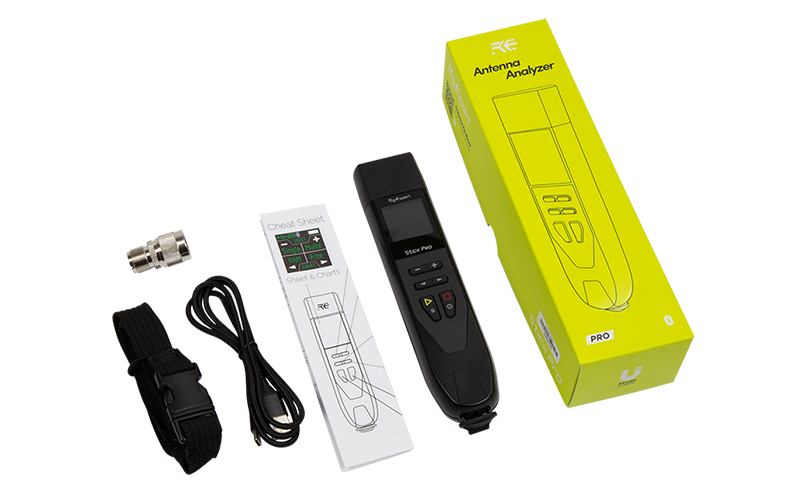

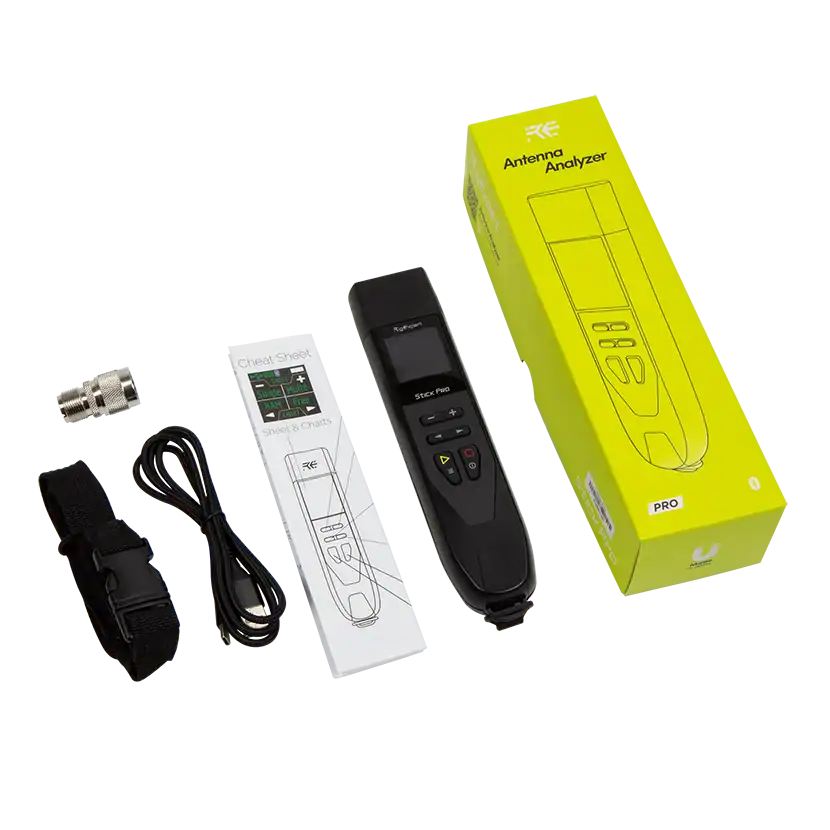

• Included: battery, quick-start guide, neck strap and USB cable.
