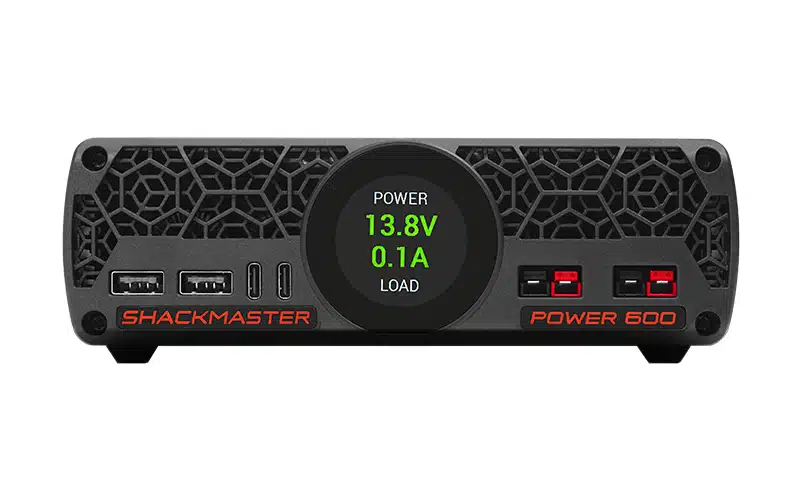

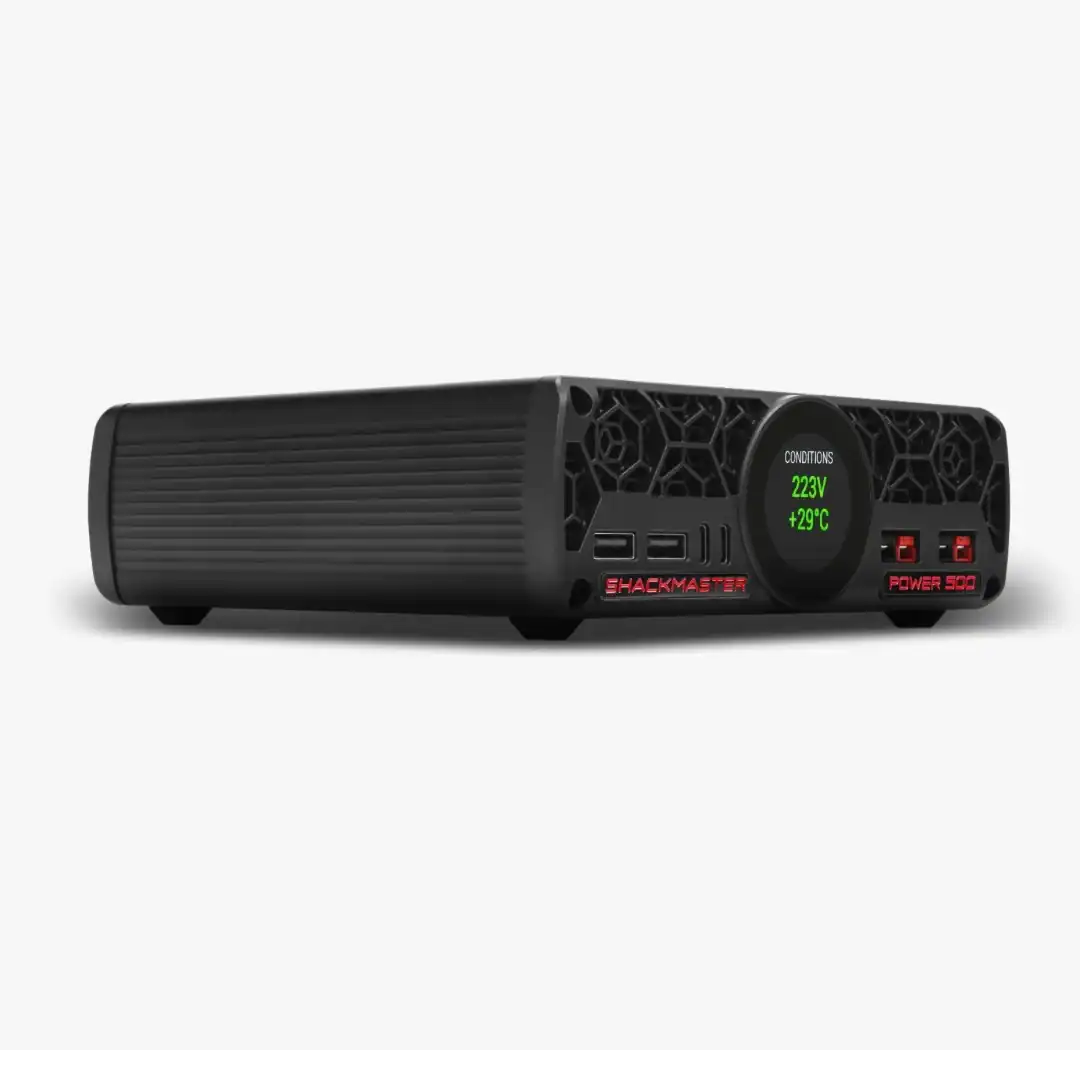

RigExpert Shackmaster Power 600

The remarkably quiet RigExpert Shackmaster Power 600 and extremely clean, RF noise-free switch mode supply delivers 40A continuous and peak current at 13.8VDC.

SKU: 123444 Categories , , Brand: RigExpert

$ 430.41 $ 459.89

Download PDF Brochure

The remarkably quiet RigExpert Shackmaster Power 600 (21 dBa) and extremely clean, RF noise-free switch mode supply delivers 40A continuous and peak current at 13.8VDC.

  • Adjustable output voltage, 12-15V, MAX 40A
  • Deadly Quiet
  • Highly Efficient
  • Lightweight and Compact
  • DXpeditions Compatible
  • Tolerant to gasoline generators

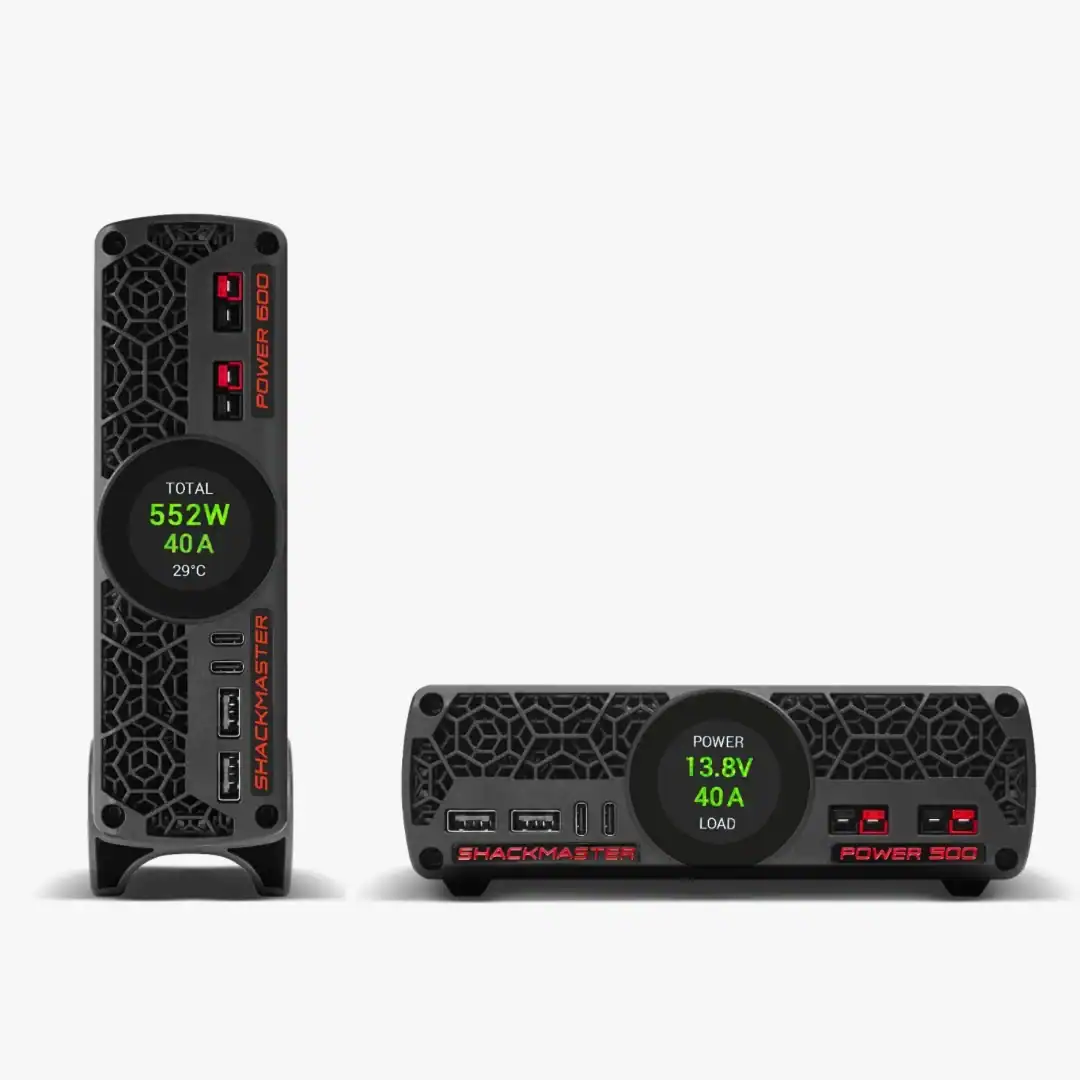

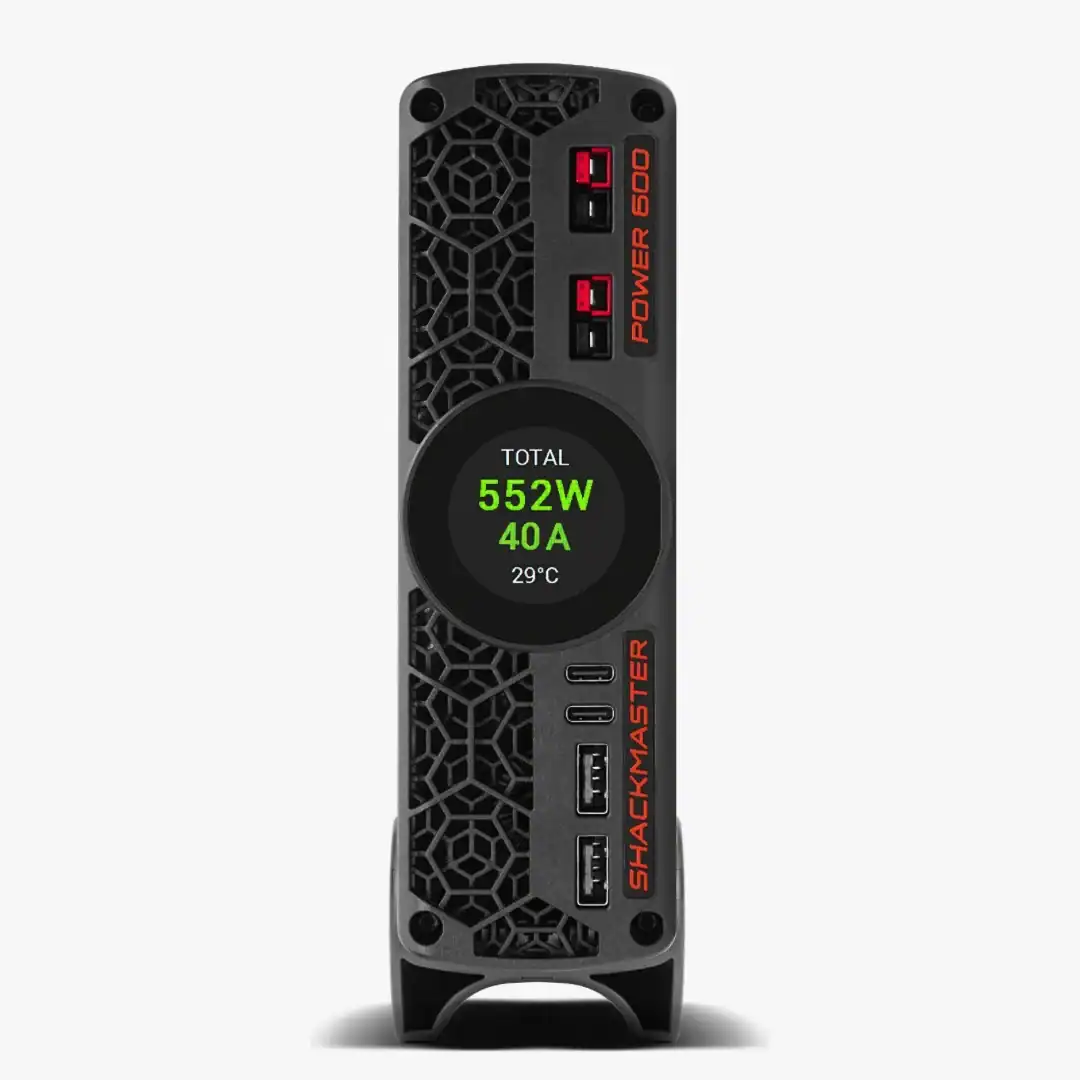

  • Saves workspace due to flexible orientation
  • 4 USB ports with Quick Charge 2.0
  • Amateur radio (HAM)
  • Telecom Equipment
  • POE systems
  • Laboratory Equipment
  • Do It Yourself projects
  • Mechanical & electrical equipment

Specifications

Output voltage
  • 13.8V (12-15V Software adjustable)
Rated power
  • 600W
Rated current
  • 40A
Input voltage range
  • 80V to 264V
Input frequency range
  • 47 Hz to 63 Hz
Acoustic noise
  • ~21 dB
Overvoltage protection
  • Yes
Overcurrent protection
  • Yes
Short circuit protection
  • Yes
EMI noise
  • 200mVp-p
Storage temperature range
  • -40°C to +85°C
  • -40°F to +185°F
Energy Conversion Efficiency (ECE)
  • > 90% (Heat dissipation at maximum load < 60 W)
Ports on the front panel
  • 2 x 3A USB A Charging Ports
  • 2 x 3A USB Type-C Charging Ports
  • 2 x 45A Anderson Power Poles
Ports on the rear panel
  • 1 x 30A Binding Post
  • 1 x USB Type-C for PC Communication
  • 2 х 45A Anderson Power Pole
Dimensions
  • 172 mm x 55 mm x 185 mm
Weight
  • 1,1 kg
