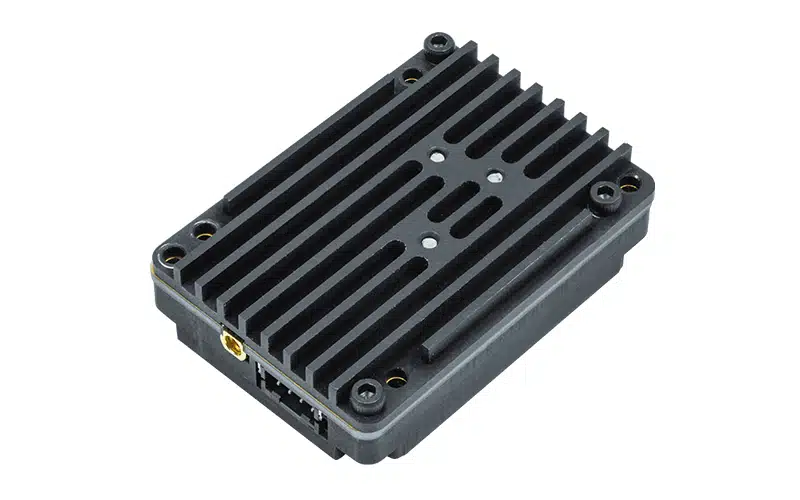

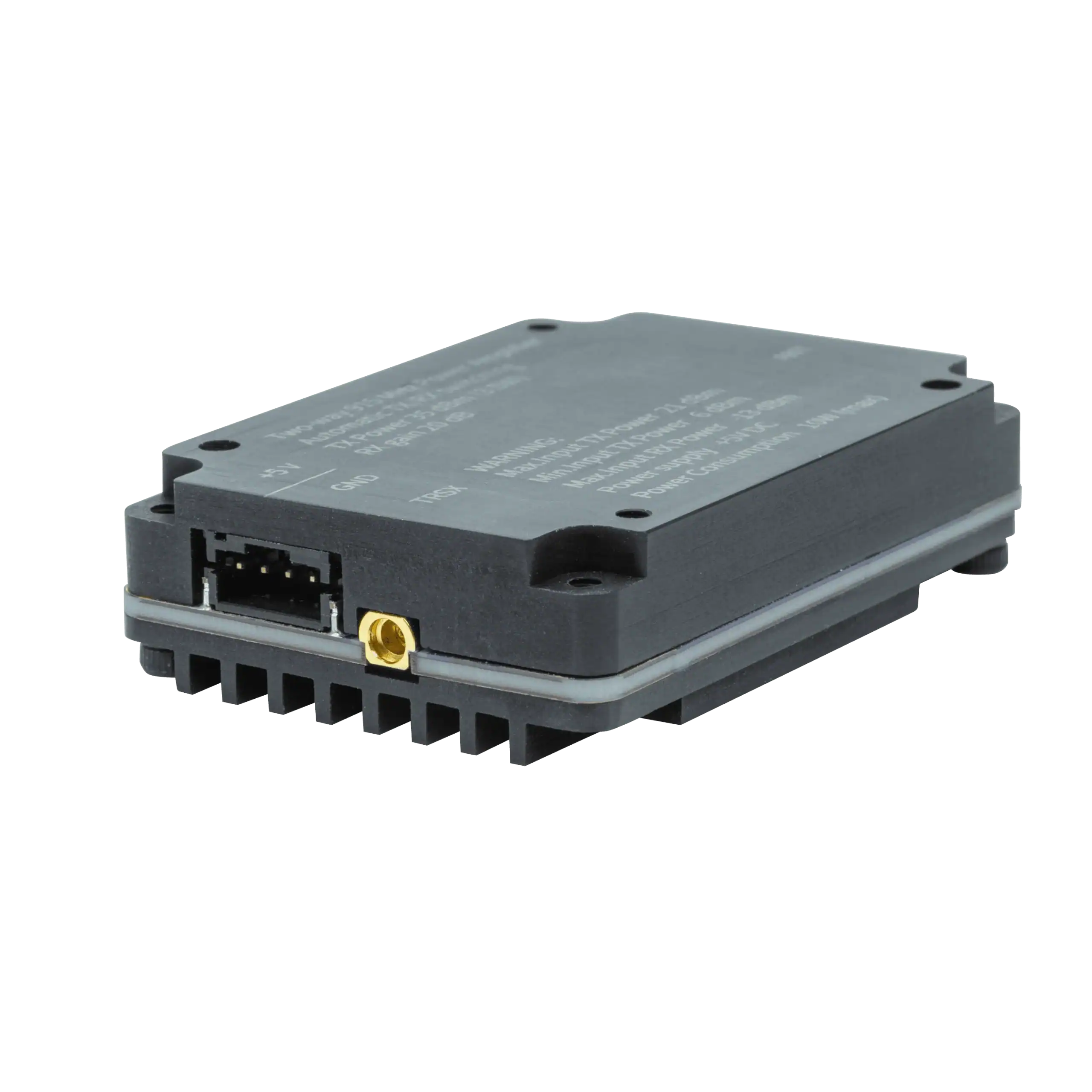

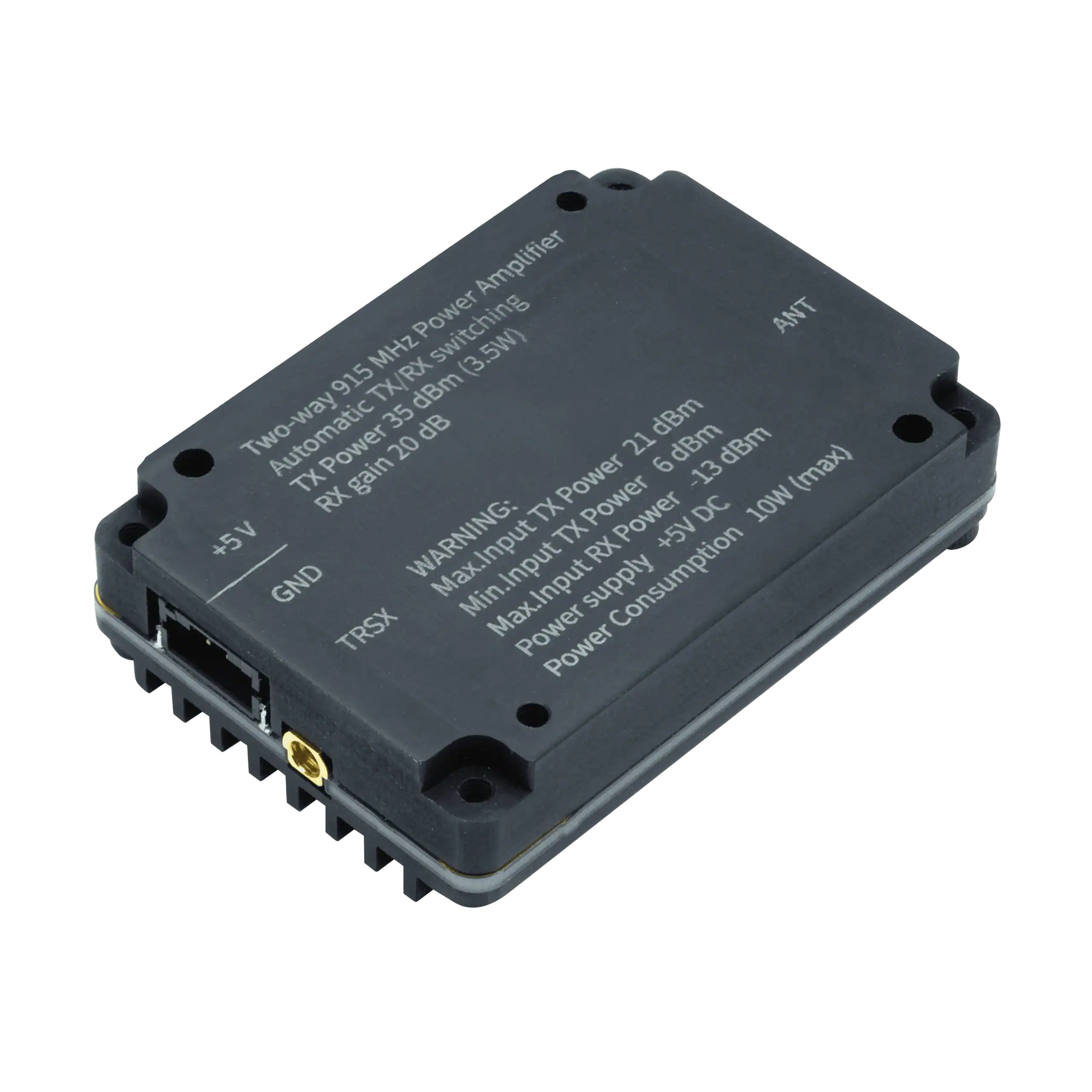

RigExpert 915MPA – 902-928 MHz Bi-directional Power Amplifier
902-928 MHz Operation
Automatic TX/RX switching

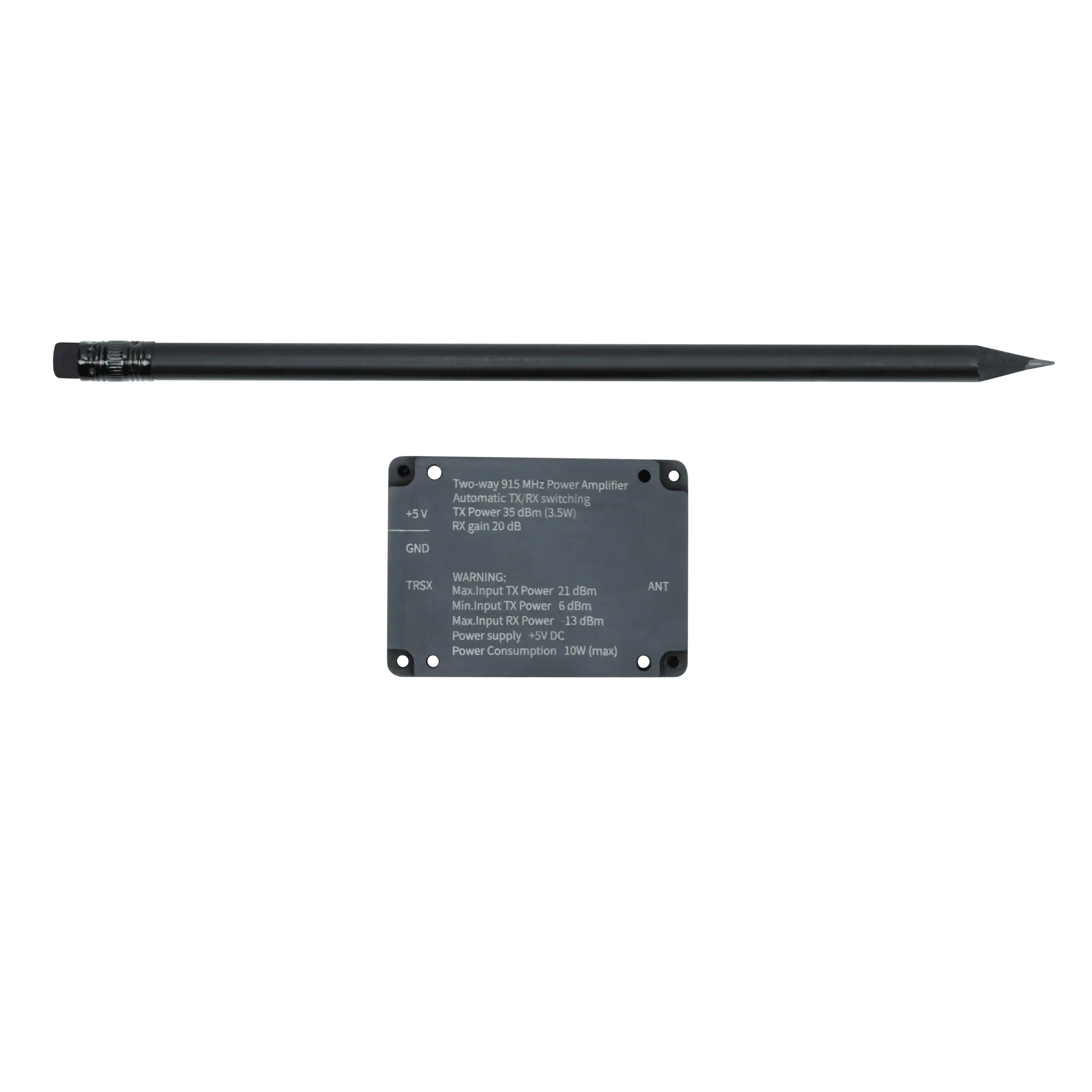

Tiny Size
Low Voltage Operation, 5 V Power Supply
15dB TX RF gain
20 dB RX RF gain
35dBm CW TX Power
36 dBm Pulse TX Power
ESD Protection
Passive cooling
Specifications
Absolute Maximum Ratings
| Parameter | Rating |
| Max RF Input TX Power | 21 dBm |
| Min RF Input TX Power | 6 dBm |
| Max RF Input RX Power | -13 dBm |
| Device Voltage | 5.5 V |
**Important note: Input TX Power can be adjusted by changing input ATT.
Recommended Operating Conditions
| Parameter | Min | Typ. | Max | Units |
| RF Input TX Power | 6 | 20 | 21 | dBm |
| Device Voltage | +4.75 | +5 | +5.25 | V |
Electrical Specifications
| Parameter | Conditions | Min | Typ. | Max | Units |
| Operational Frequency Range | 902 | 928 | MHz | ||
| TX Gain | 15 | dB | |||
| RX Gain | 20 | 22 | dB | ||
| Output Power CW | Input RF Power 20dBm @ 916 MHz | 34 | 35 | 36 | dBm |
| Output Power Pulse | Input RF Power 20dBm @ 916 MHz | 35 | 35.5 | 36 | dBm |
| 2nd Harmonic CW | Output Power 35.1dBm @ 915 MHz | 1.3 | dBm | ||
| 2nd Harmonic Pulse | Output Power 36.6dBm @ 915 MHz | 1.9 | dBm | ||
| Power Consumption in CW TX | Output RF Power 35dBm @ 916 MHz | 9.8 | W | ||
| Power Consumption in RX | 0.44 | W |
Mechanical Specifications
Absolute Maximum Ratings
| Dimensions, mm | 40 x 56 x 15 |
| Weight, g | 46 |
| GTIN-13 | 4820185420419 |
