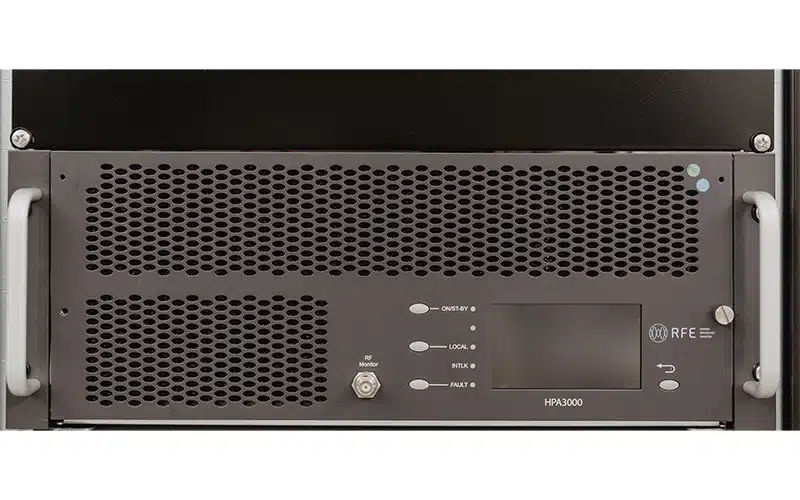

RFE Broadcast HPA3000 – 3kW FM Amplifier – Powerful, Compact & Efficient Solution
The
RFE Broadcast HPA3000 3kW FM Amplifier sets the standard for reliability and efficiency in FM transmission. Designed with innovative technology, this amplifier combines high performance with a compact form factor, making it ideal for both small and large-scale broadcast operations. Offering exceptional power, efficiency, and ease of use, the HPA3000 is the go-to solution for broadcasters seeking a durable, cost-effective, and low-maintenance amplifier.
Key Features of the RFE Broadcast HPA3000 FM Amplifier:
- High Efficiency: The HPA3000 delivers exceptional power output with an overall efficiency greater than 73%, reducing operating costs and improving energy use.
- Nominal RF Power: With a nominal output power of up to 3300W, this amplifier ensures clear, strong, and reliable FM transmission.
- Advanced Design: Its front panel hot-swap power supplies and hot-plug RF amplifier allow for easy maintenance and minimal downtime.
- Intuitive Control: A large LCD color display with a touch panel provides straightforward operation, allowing for quick adjustments and real-time monitoring.
- Web TCP/IP Integration: The amplifier is equipped with TCP/IP connectivity, enabling remote control and monitoring from any internet-enabled device.
- 6th LD-MOS Generation Technology: Equipped with the latest LD-MOS technology, the HPA3000 offers a VSWR of 65:1, ensuring stable and high-quality output.
- Compliant with Industry Standards: The amplifier meets both CCIR and FCC standards, ensuring reliable operation in various broadcasting environments.
Advanced Technical Specifications:
- Power Output: 3000W nominal, adjustable from 10 to 110%.
- RF Connectors: RF input connector is a 50-ohm “N” female, and RF output is 50-ohm 7/8” EIA.
- VSWR: Adjustable from 20% to 90% of nominal power, maintaining a maximum VSWR of 1.8:1 for superior signal integrity.
- Auxiliary Connections: Includes RS485 telemetry interface, LAN connectivity, and SNMP v2c support for seamless integration into existing systems.
- Harmonic and Spurious Power Reduction: With harmonic suppression of ≥80 dBc, this amplifier reduces unwanted signals, ensuring a clean transmission.
- Cooling & Noise: Forced air cooling with three 80×80 DC axial fans ensures optimal performance, with acoustic noise kept below 56 dBa at 1 meter.
Environmentally Friendly and Reliable:
- Wide Operating Range: The RFE Broadcast HPA3000 operates effectively in a wide range of environmental conditions, from -10°C to +50°C, and at altitudes of up to 4500 meters.
- Low Acoustic Noise: Designed with quieter operations, it generates minimal noise, making it ideal for noise-sensitive environments.
- Rack-Mountable Design: The amplifier fits into a standard 19” 4U rack chassis, making installation easy and straightforward.
Flexible Options:
- Deep Tropicalization: Available as an option for extreme environments.
- Programmable Power Reduction: Customize power output during off-peak hours for energy savings and longer system life.
Conclusion:
The
RFE Broadcast HPA3000 FM Amplifier combines cutting-edge technology with a compact, efficient design, providing broadcasters with a reliable, high-performance solution. With its high efficiency, advanced features, and customizable options, the HPA3000 is perfect for modern broadcast operations looking for dependable, cost-effective FM amplification.
Invest in the
RFE Broadcast HPA3000 today and experience superior broadcasting with unmatched power and reliability.
