    RB-DS2R Remote Switch Panel For RB-DS2

    Original price was: $ 484.19.Current price is: $ 437.52.

    SKU: 103172 Brand: Sonifex

    Related Products

    Sonifex RB-DS2 Stereo Silence Detection Switcher Front Panel

    Sonifex RB-DS2

    In stock

    Original price was: $ 2,175.94.Current price is: $ 2,070.94.
    Select options
    Weight 2.3 kg
    specification

    Technical Specification For RB-DS2

    A/D Specification

    Maximum Input Level:
    +28dBu

    Input Impedance:
    > 10kΩ bridging

    Analogue & Digital Input Levels:
    Selectable +12dBu

    ,

    +18dBu

    ,

    +24dBu for FSD

    Analogue Pre-set Input Gain Range:
    Adjustable 3dB loss to 3dB gain (L & R adjust)

    Signal to Noise:
    Better than -101dBFS (RMS A-weighted at 24bit)

    Dynamic Range:
    > 110dB

    Distortion & Noise:
    > 96dB THD + N at 1kHz

    D/A Specification

    Maximum Output Level:
    +24dBu

    Output Impedance:
    < 50Ω

    Dynamic Range:
    > 100dB

    Analogue Output Gain Range:
    Selectable -6dBu to +24dBu output level

    ,

    ref FSD

    Sampling Frequency:
    Selectable 32kHz

    ,

    44.1kHz

    ,

    48kHz 64kHz

    ,

    88.2kHz or 96kHz

    Sample Width:
    Selectable 16bit or 24bit

    Channels:
    Stereo or dual mono

    Format (Fields & Frames):
    PAL

    ,

    NTSC

    Delay Units:
    Samples

    ,

    fields

    ,

    frames

    ,

    milliseconds

    ,

    hh:mm:ss

    ,

    (with CF expansion)

    Maximum Delay:
    10.5 seconds @ 96kHz

    ,

    24bit

    ,

    stereo (excluding memory expansion)

    Rear Panel Connections

    Analogue Inputs:
    2 x XLR 3 pin female (balanced) (L & R)

    Analogue Outputs:
    2 x XLR 3 pin male (balanced) (L & R)

    Digital Inputs:
    1 x AES/EBU XLR 3 pin female

    Digital Outputs:
    1 x AES/EBU XLR 3 pin male

    Remote I/O Port:
    15-way ‘D’-type plug

    ,

    8 GPI inputs

    ,

    4 GPI outputs

    Serial Comms Port:
    9-way ‘D’-type plug

    Memory Expansion:
    Internal Compact Flash™ storage card supporting up to 2GB. CF cards must be PIO Type 4 or higher.

    Mains Input:
    Filtered IEC

    ,

    continuously rated 85-264 VAC

    ,

    47-63Hz

    ,

    fused

    ,

    60W peak

    ,

    30W average

    Fuse Rating:
    Anti-surge fuse 2A 20 x 5mm

    Front Panel Controls

    Display:
    Vacuum fluorescent display

    System Navigation:
    Rotary selector with integral push-switch

    Audio Bypass:
    Via push-button

    Equipment Type

    RB-DS2:
    Stereo delay synchroniser & time-zone delay

    Physical Specification

    Dimensions (Raw):
    48cm (W) x 15.8cm (D *) x 4.2cm (H) (1U)

    19” (W) x 6.2” (D*) x 1.7” (H) (1U)

    Dimensions (Boxed):
    59cm (W) x 27.5cm (D*) x 11cm (H)

    23.2” (W) x 10.8” (D*) x 4.3” (H)

    Weight
    Nett: 1.6kg Gross: 2.3kg

    Nett: 3.5lbs Gross: 4.8lbs
    Ship Separately

    0
    Product can be split into multiple boxes

    0
    The Sonifex RB-FS82 8 + 2 audio failover switcher is an important tool in many critical areas in telecommunications and broadcast chains.

    Sonifex RB-FS82

    In stock

    Original price was: $ 2,695.13.Current price is: $ 2,560.96.
    Select options
    -6%
    D&R PHONE Light Studio warming LED light

    D&R PHONE Light

    In stock

    Original price was: $ 198.34.Current price is: $ 186.68.
    Add to Cart
    -7%
    Sonifex RB-DD4 digital audio delay unit front panel

    Sonifex RB-DD4

    In stock

    Original price was: $ 2,234.28.Current price is: $ 2,070.94.
    Add to Cart
    Weight 2 kg
    Dimensions 59 × 27.5 × 11 cm
    Product can be split into multiple boxes

    0
    Ship Separately

    0
    specification

    Technical Specification For RB-DD4

    Audio Specification

    Dynamic Range:
    >138dB

    Distortion and Noise:
    <-137dB THD + N at 1kHz

    ,

    ref 0dB FS

    Input & Output Impedances:
    110Ω ±20% AES/EBU balanced I/O

    75Ω ±5% S/PDIF unbalanced I/O

    75Ω ±5% TOSlink unbalanced I/O

    50Ω BNC TTL word clock input

    Signal Level:
    Balanced: 3V/10V peak to peak min/max

    Unbalanced: Min 0.5V±20% peak to peak

    Sample Frequencies:
    32

    ,

    44.1

    ,

    48

    ,

    88.2

    ,

    96

    ,

    176.4 or 192kHz

    Bit Depth:
    Up to and including 24 bit

    Max Delay:
    8 secs per mono channel at 32kHz 1.33 secs per mono channel at 192kHz

    Frame Rates (Front Panel):
    23.98fps

    ,

    24fps

    ,

    25fps

    ,

    29.97fps

    ,

    30fps

    ,

    50fps

    ,

    59.94fps

    ,

    60fps

    Frame Rates (SCi Software):
    525/29.97

    ,

    625/25

    ,

    720/60p

    ,

    720/59.94p

    ,

    720/50p

    ,

    720/30p

    ,

    720/29.97p

    ,

    720/25p

    ,

    720/24p

    ,

    720/23.98p

    ,

    1035/60i

    ,

    1035/59.94i

    ,

    1080/60i

    ,

    1080/59.94i

    ,

    1080/50i

    ,

    1080/30p

    ,

    1080/29.97p

    ,

    1080/25p

    ,

    1080/24p

    ,

    1080/23.98p

    ,

    1080/30pSF

    ,

    1080/29.97pSF

    ,

    1080/25pSF

    ,

    1080/24pSF

    ,

    1080/23.98pSF

    ,

    1080/60p

    ,

    1080/59.94p

    ,

    1080/50p

    Delay Settable:
    1 to 19 frames (front panel controls) Frames

    ,

    lines

    ,

    fields

    ,

    milliseconds and samples up to total delay time (SCi software)

    Front Panel Operational Controls & Indicators

    Digital Input Select:
    AES/EBU

    ,

    S/PDIF or TOSlink optical via INPUT 1 & 2 or INPUT 3 & 4 push-buttons

    Delay Control:
    Delay time selection system via front panel push button

    Monitor Select Control:
    Headphone monitor channel select

    Indicators:
    Input presence indicators via bicolour LEDS around each push button

    Rear Panel Operational Controls

    Master Select:
    32

    ,

    44.1

    ,

    48

    ,

    88.2

    ,

    96

    ,

    176.4 or 192kHz Frequency via rear panel DIPswitches

    Sync Source Select:
    INPUTS 1&2

    ,

    INPUTS 3&4

    ,

    AES Sync

    ,

    Word Clock

    ,

    Video Sync via rear panel DIPswitches

    Sync Mode Select:
    Master

    ,

    Auto Sync

    ,

    Auto Lock

    ,

    Slave via rear panel DIPswitches

    Stereo Features:
    Stereo monitor outputs via rear panel DIPswitches

    Monitor Attenuation:
    12dB Monitor attenuation via rear panel DIPswitches

    Serial Mode:
    Enter serial control mode via rear panel DIPswitches

    Boot Mode:
    Boot up base code or firmware via rear panel DIPswitches

    Connections

    Digital Inputs:
    2 x AES/EBU XLR 3 pin female

    2 x S/PDIF RCA phono

    2 x TOSLink optical input

    Digital Outputs:
    2 x AES/EBU XLR 3 pin plug

    2 x S/PDIF RCA phono socket

    2 x TOSLink optical output

    Sync Inputs:
    1 x AES/EBU XLR 3 pin female

    1 x Word Clock BNC

    1 x Video Input (optional)

    Remote I/O Port:
    15 way D-type plug

    Serial Port:
    RS232

    ,

    RJ45 socket

    Mains Input:
    Universal filtered IEC

    ,

    continuously rated 85-264VAC@47- 63Hz

    ,

    max 10W

    Fuse Rating:
    Anti-surge fuse 1A 20 x 5mm

    Equipment Type

    RB-DD4:
    4 channel digital audio delay

    Physical Specifications

    Dimensions (Raw):
    48cm (W) x 10.8cm (D*) x 4.2cm (H) (1U)

    19” (W) x 4.3” (D*) x 1.7” (H) (1U)

    Dimensions (Boxed):
    59cm (W) x 27.5cm (D) x 11cm (H)

    23.2” (W) x 10.8” (D) x 4.3” (H)

    Weight:
    Nett: 1.4kg Gross: 2.0kg

    Nett: 3.1lb Gross: 4.4lb

    Accessories

    RB-SYA:
    Analogue video sync board (NTSC

    ,

    PAL & SECAM)

    RB-SYD:
    Digital video sync board (SD-SDI & HD-SDI)

    RB-RK3:
    1U Rear panel rack kit for large Redboxes
    -7%
    Sonifex RB-PD2 Dual Channel Profanity Delay Unit Front Panel

    Sonifex RB-PD2

    In stock

    Original price was: $ 4,136.04.Current price is: $ 3,844.36.
    Add to Cart
    Weight 2.3 kg
    Dimensions 59 × 278 × 11 cm
    Product can be split into multiple boxes

    0
    Ship Separately

    0
    specification

    Technical Specification For RB-PD2

    A/D Specification

    Maximum Input Level:
    +28dBu

    Input Impedance:
    > 10kΩ bridging

    Analogue & Digital Input Levels:
    Selectable +12dBu

    ,

    +18dBu

    ,

    +24dBu for FSD

    Analogue Pre-set Input Gain Range:
    Adjustable 3dB loss to 3dB gain (L & R adjust)

    Signal to Noise:
    Better than -101dBFS (RMS A-weighted at 24bit)

    Dynamic Range:
    > 110dB

    Distortion & Noise:
    > 96dB THD + N at 1kHz

    D/A Specification

    Maximum Output Level:
    +24dBu

    Output Impedance:
    < 50Ω

    Dynamic Range:
    > 100dB

    Analogue Output Gain Range:
    Selectable -6dBu to +24dBu output level

    ,

    ref FSD

    Sampling Frequency:
    Selectable 32kHz

    ,

    44.1kHz or 48kHz

    Sample Width:
    Selectable 16bit or 24bit

    Channels:
    Stereo

    Minimum Delay:
    2 seconds

    Maximum Delay:
    Dependent on sample and bit rates selected:

    32kHz:
    16 bit – 55 seconds

    24 bit – 27.5 seconds

    44.1kHz:
    16 bit – 40 seconds

    24 bit – 20 seconds

    48kHz:
    16 bit – 37 seconds

    24 bit – 18.5 seconds

    Rear Panel Connections

    Analogue Inputs:
    2 x XLR 3 pin female (balanced) (L & R)

    Analogue Outputs:
    2 x XLR 3 pin male (balanced) (L & R)

    Digital Inputs:
    1 x AES/EBU XLR 3 pin female

    Digital Outputs:
    1 x AES/EBU XLR 3 pin male

    Remote I/O Port:
    15-way ‘D’-type plug

    ,

    8 GPI inputs

    ,

    6 GPI outputs

    Serial Comms Port:
    9-way ‘D’-type plug

    Mains Input:
    Filtered IEC

    ,

    continuously rated 85 – 264VAC

    ,

    47 – 63Hz

    ,

    fused

    ,

    60W peak

    ,

    30W average

    Fuse Rating:
    Anti-surge fuse 2A 20 x 5mm

    Front Panel Controls

    Display:
    Vacuum fluorescent display

    Direct Control Push-Buttons:
    Build Delay

    ,

    Exit Delay

    ,

    Cough

    ,

    Audio Bypass & Dump/Drop

    System Navigation:
    Rotary selector with integral push-switch

    Removable Audio Storage Device:
    Compact Flash™ memory card port (supporting up to 2GB)CF™ card used must be PIO type 4 or higher

    Equipment Type

    RB-PD2:
    Stereo profanity delay

    Physical Specification

    Dimensions (Raw):
    48cm (W) x 15.8cm (D*) x 4.3cm (H) (1U)

    19” (W) x 6.2” (D*) x 1.7” (H) (1U)

    Dimensions (Boxed):
    59cm (W) x 27.5cm (D) x 11cm (H)

    23.2” (W) x 10.8” (D) x 4.3” (H)

    Weight :
    Nett: 1.7kg Gross: 2.3kg

    Nett: 3.7lbs Gross: 5lbs
    -5%

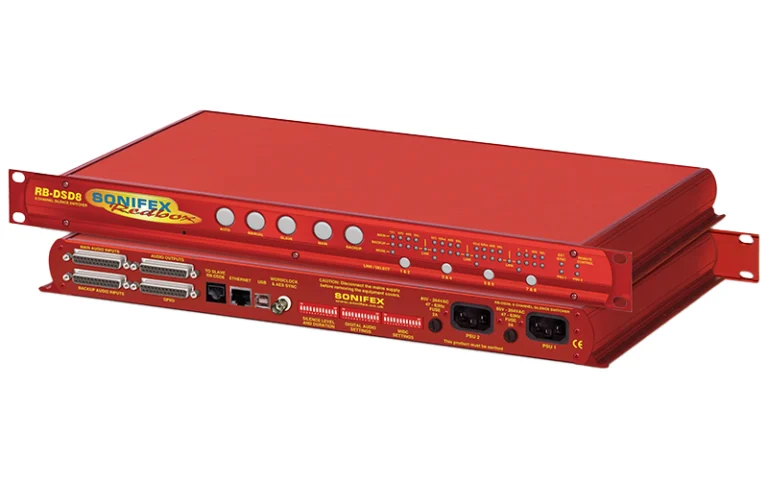

    The Sonifex RB-DSD8 8 channel silence switcher works similarly to the Sonifex RB-SD1 and RB-DSD1 but allows for 4 stereo channels of audio.
