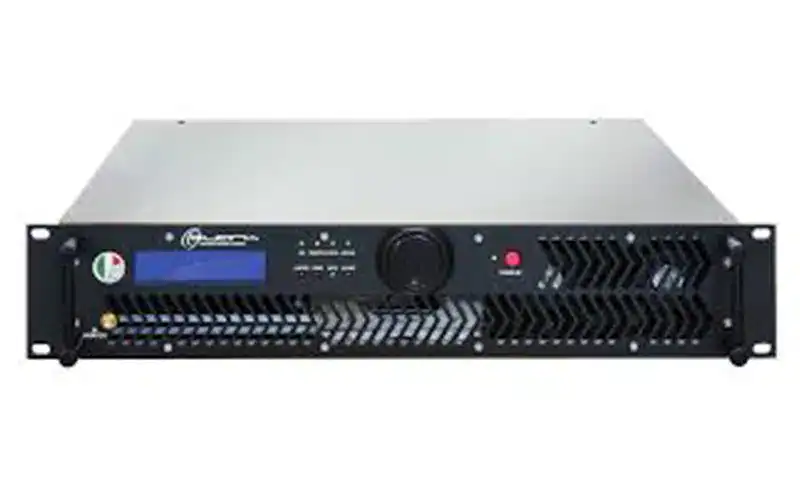

Quark FALCON 1000

Introducing the Quark FALCON 1000 Stereo FM Transmitter, featuring cutting-edge ICEFET exciter technology. This groundbreaking innovation not only achieves drastic temperature reductions but also significantly lowers power consumption. Here’s an in-depth look at its standout attributes:

Exciter Technology: The Falcon series employs ICEFET technology, delivering superior performance with decreased temperatures and power usage.

Quality and Durability: Experience unparalleled quality with remote diagnostics, swift assistance, minimal power consumption, and enduring durability. Its aluminum chassis, compact 2-rack unit size, and featherweight build (just 13 kg) ensure effortless handling and mobility.

User Interaction: Interact seamlessly with the pressure encoder, enabling intuitive user-device engagement. Configuration software offers a user-friendly interface for hassle-free setup and operation.

Enhanced Performance: Benefit from Automatic Level Control (ALC) and Foldback protection, ensuring uninterrupted operation in diverse conditions.

Technical Specifications: Explore its vast capabilities:

• Frequency range: 87.5 – 108 MHz with a low-pass filter band.
• Transistors: ICEFET technology ensures peak efficiency.
• Rated output power: 1,000 W for Falcon 1000 and 1,600 W for Falcon 1600 models.
• Modulation type: Direct carrier frequency for Mono, Stereo, and Multiplex operational modes.
• Environmental working conditions: Operating range from -10°C to +50°C with 95% relative humidity (non-condensing).

Power Requirements: Designed for efficiency:

• AC Supply Voltage: 230V +/- 15%.
• Active Power Consumption: Falcon 1000 consumes 1330W, while Falcon 1600 consumes 2050W.
• Overall Efficiency: Typically around 70%.

Mechanical Dimensions: Compact yet robust:

• Physical Dimensions: 440 mm x 85 mm x 500 mm.
• Weight: Approximately 13 kg.

Audio Inputs and Outputs: Versatile audio connectivity options include Left/Mono & Right, MPX, SCA/RDS, and optional AES/EBU interfaces.

Environmental Conditions: Built to withstand diverse climates:

• Temperature range: -20°C to +45°C (working), -20°C to +70°C (non-working).
• Humidity: 95% at 40°C (working), 90% at 65°C (non-working).
• Altitude: Suitable for operation above 3,000 meters.

Discover why the Quark FALCON 1000 is the ultimate choice for your broadcast transmitter requirements, offering reliability and efficiency like no other.
