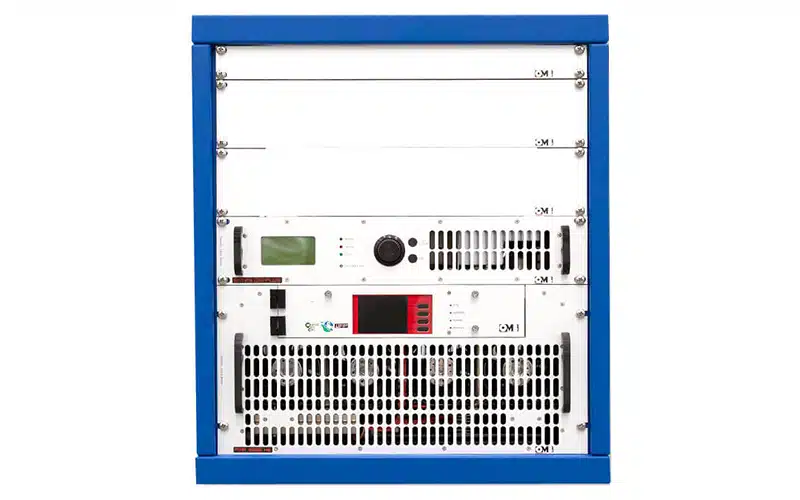

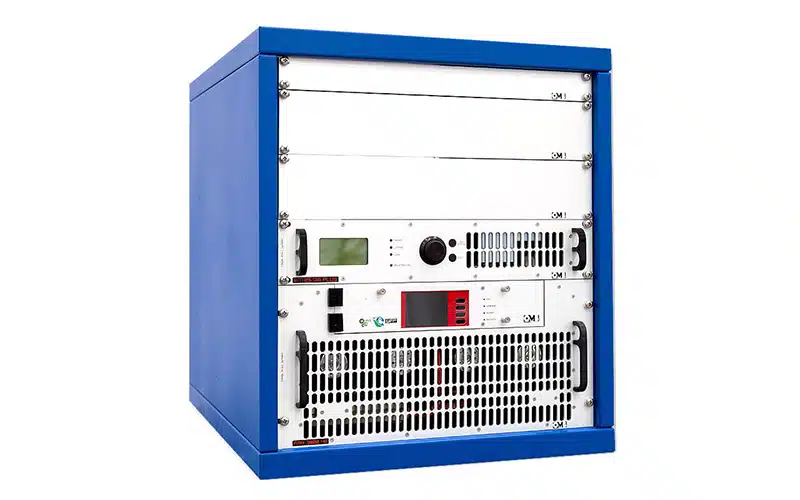

OMB EM 3000 HE DIG

The OMB EM 3000 HE DIG 3KW FM transmitter was developed by the OMB Center for the Development of High-Efficiency Transmitters. It consists on the high efficiency 3KW amplifier, FMA 3000 HE, with >73% efficiency and the EM 25 DIG PLUS, a 25W FM transmitter. The high efficiency 3KW amplifier has an approximate consumption of 4200VA at 230Vac, so it pays for itself in a short period of time due to its low consumption. This transmitter can be supplied with the following options:
– Stereo generator
– RDS
– Web server/SNMP telemetry
– AES/EBU digital audio input

MAIN ADVANTAGES:
– Typical AC efficiency >73% and typical RF efficiency of 84%.
– Four amplifying modules of 1.200W with robust LDMOS transistors of the latest technology.
– Three independent switching power supplies connected in parallel to maintain the equipment working in case any of them fails.
– TFT screen and touch keyboard to control and to visualize operation parameters.
– Memory recording of events.
– Speed control of cooling fans according to temperature of power modules so as to optimize consumption and to decrease acoustic contamination.
– Advanced protection against load mismatches without transmission cuts and fast protection in case of excessive reflected power and/or excessive input power.
– Analog telemetry, digital remote control and telemetry RS232, remote control by opened/closed contacts.
– Low pass filter, Mains EMI filter and internal single-phase transient suppressor.
– Automatic power reduction at night when used in combination with the EM 25 DIG PLUS transmitter.
– Automatic power reduction in case of high temperature, the equipment returns automatically to its rated power value when the temperature reaches back an average value.
– Automatic power reduction in case of excessive reflected power.
– Automatic voltage control for efficiency optimization.
