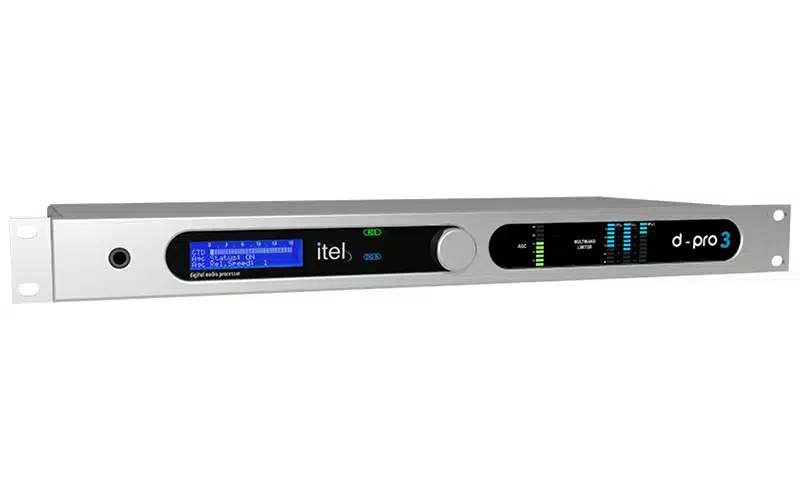

ITEL DPRO3 FM is a three-band digital FM audio processor with wideband AGC, integrated MPX stereo encoding, analogue/digital inputs and optional Ethernet streaming in 1U.
€1,395.00
ITEL DPRO3 FM – Three-Band Digital Audio Processor with Integrated MPX Stereo Encoder combines programme-level control and stereo composite generation in one compact broadcast unit. A wideband automatic gain control stage feeds the three-band processor, balancing on-air presence with a natural sound. Audio processing and stereo encoding are implemented using DSP, supporting stable operation and functionality updates through software.
The analogue inputs use electronically balanced XLR connections with 48 kHz, 24-bit conversion and a published level range of −12 to +12 dBu. The transformer-balanced digital XLR input accepts AES/EBU and S/PDIF signals at sample rates from 32 to 96 kHz. This allows the processor to accommodate analogue studio feeds or compatible digital sources without requiring the same source format throughout the installation.
ITEL DPRO3 FM provides a composite MPX output on BNC, with a published level range of −6 to +6 dBu. A separate 19 kHz pilot-reference output supports external encoder synchronisation, while the SCA input provides another BNC connection. Balanced analogue outputs offer selectable de-emphasis settings of off, 50 µs or 75 µs. Confirm the internal RDS option and required data services when specifying the unit.
The ITEL DPRO3 FM control software provides remote adjustment through the standard RS-232 interface. Optional Ethernet cards add network control or streaming reception. The streaming option plays MP3/AAC+ streams and files for network STL or spare-source applications, keeping the signal digital through processing until conversion at the MPX output. The standard supply accepts 100–240 V AC; a 12 V DC version is available on request.
