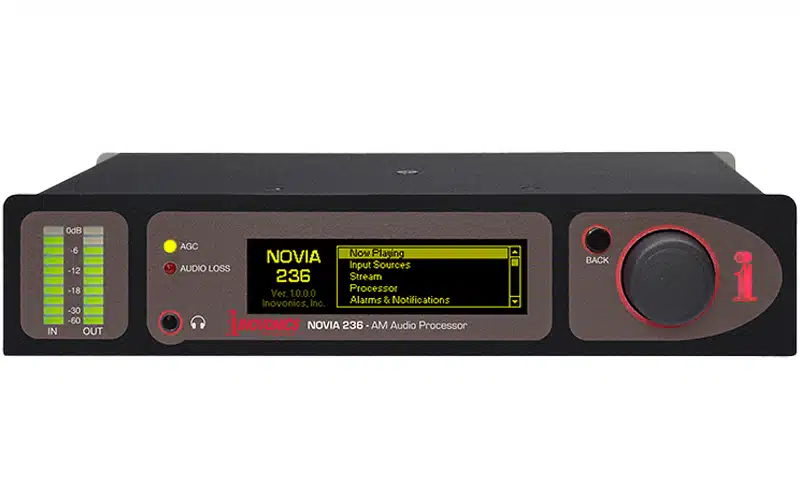

Inovonics Novia 236 AM Audio Processor is specifically designed for medium-wave monaural AM broadcasting. It offers a range of features tailored to optimize audio quality and signal processing for this application. Here’s a breakdown of its key features and specifications:
Features:
- AGC (Automatic Gain Control):
- Gated and ‘windowed’ gain-riding AGC for maintaining consistent audio levels.
- Syllabic Consistency Leveling:
- Adjustable ‘syllabic leveling’ for ensuring consistent audio quality.
- Dynamic Range Compression:
- 3 bands of dynamic compression with selectable crossovers for controlling audio dynamics.
- Parametric EQ (Equalizer):
- 4 stages of parametric EQ for precise control over the audio signal’s frequency content.
- Includes a selectable ‘Bass Punch’ feature for enhancing bass.
- Peak Controller:
- Final peak controller to support asymmetrical carrier modulation and prevent splatter.
- Presets and Control:
- 10 factory and 10 user-defined processing presets for simplified setup and operation.
- IP interface for remote control using any PC or mobile device. SNMP operation supported.
- Input and Output Options:
- Accepts both program line and streaming inputs.
- Analog, AES-digital, and streaming in/outs supported.
- Monitoring and Alarms:
- Allows remote IP audio monitoring.
- GPIOs, Web/email/SNMP for controls and alarms.
- Built-in real-time clock and headphone jack.
- Utility and Compatibility:
- Selectable US and international cutoff filters.
- Suitable for use ahead of STLs/codecs.
Specifications:
- Frequency Response (processing bypassed): 50Hz – 20kHz, ±0.25dB
- Output Cutoff Response:
- Nominal Frequencies: Menu-selectable options.
- Filter Characteristic: 143-coefficient FIR filter with phase and overshoot compensation.
- Pre-Emphasis: Selectable flat or ‘truncated’ US NRSC preemphasis curve.
- Distortion (processing bypassed):
- Analog I/O: <0.02% THD.
- AES Digital I/O: <0.002% THD.
- Signal-to-Noise (processing bypassed):
- Analog I/O: >105dB.
- AES Digital I/O: >120dB.

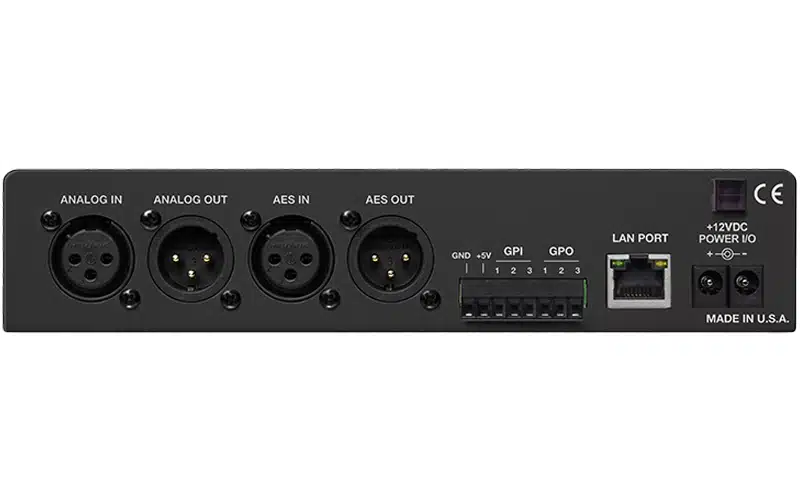

- Program Line Inputs:
- Analog: Active-balanced (XLR).
- AES Digital: (XLR).
- IP Streaming: Supports Icecast/SHOUTcast MP3, Ogg, and AAC streams.
- Program Line Outputs: Analog (XLR).
- Positive Peak Enhancement: Selective limiting of positive-going peaks.
- Program Signal Latency (Delay): Approx. 3.75ms
- Network Port: TCP/IP network connection (RJ45) for remote setup/operation and audio streaming.
- GPIO Ports: 3 GPI, 3 GPO with assignable functions.
- Headphone Jack: Front-panel (TRS) 3.5mm.
- Power Requirement: 12VDC at 240mA.
- Mounting Options: Optional rack adapter for standard 19-inch, 1U rack space.
- Size and Weight: 1.6”H x 8”W x 6”D; 5 lbs shipping weight.
- Environmental: Operating temperature range: 32ºF/0ºC to 122ºF/50ºC; 0-95% relative humidity; altitudes to 10,000ft/3,048m.
Overall, the Novia 236 offers comprehensive audio processing capabilities and flexibility, along with convenient remote control and monitoring options, making it well-suited for AM broadcasting applications.
