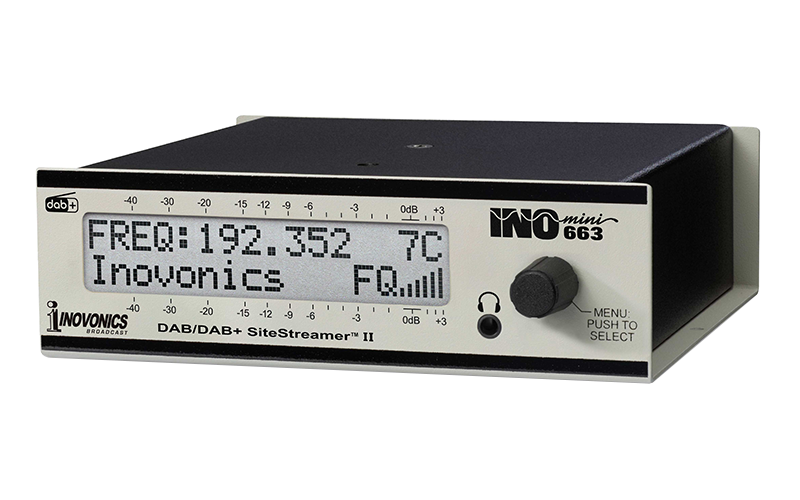

Inovonics 663 – DAB+ SiteStreamer II

Product Overview

The Inovonics 663 DAB+ SiteStreamer II is a compact, web-enabled DAB and DAB+ off-air monitor designed for remote signal surveillance and IP audio streaming. Installed at a transmitter site, headend or rebroadcast point, this DAB+ SiteStreamer II lets engineers check multiplex performance and listen to services from anywhere with a browser.

A sensitive SDR-based tuner in the Inovonics 663 DAB+ SiteStreamer II provides stable reception of fringe and core coverage areas, while detailed metering shows signal strength, ensemble and service data, audio level and error information. Up to 30 presets can be stored, and the Station Rotation feature automatically cycles through selected services at timed intervals so you can verify multiple channels from a single unit. Audio from any preset is available locally on headphones or line outputs, and remotely via the built-in IP audio stream.

The Inovonics 663 DAB+ SiteStreamer II offers both analog and AES3 digital audio outputs, GPIO alarm contacts and Ethernet for web control and SNMP. A secure browser interface allows tuning, preset management, alarm setup and firmware updates from any PC, tablet or smartphone. Loss of signal, loss of audio and other alarm conditions can trigger email or SNMP notifications, helping you protect multiplex quality before listeners notice problems. Low power draw and the space-saving INOmini form factor make this DAB+ off-air monitor ideal for crowded racks and multi-site networks.

Frequently Asked Questions

• Q: How many services can the Inovonics 663 DAB+ SiteStreamer II monitor?
  A: It supports up to 30 DAB or DAB+ presets and can automatically rotate through selected services using Station Rotation.
• Q: How do engineers access audio remotely?
  A: The unit streams audio over IP so you can listen to any preset from the web interface in addition to local headphone and line outputs.
• Q: What alarm options are available?
  A: The 663 can raise alarms for loss of signal, loss of audio and other faults, with email and SNMP notifications plus GPIO outputs.
