Furman PS-8RE III

Furman PS-8RE III 10A Power Conditioner and Sequencer, 220V-240V Export

Introducing the Furman PS-8RE III Power Conditioner and Sequencer from the Classic Series, a robust and technologically advanced solution designed to safeguard your equipment and elevate your audio/video performance. With Furman’s renowned SMP technology, LiFT, EVS, and sequencing capabilities, the PS-8RE III stands as one of the world’s most advanced transient voltage surge suppressors.

Key Features:

1. Series Multi-Stage Protection (SMP):
   • Virtually maintenance-free protection against surges and spikes, ensuring no sacrificed parts, service calls, or downtime.
2. Linear Filtering Technology (LiFT):
   • Unique AC line noise elimination for consistent audio/video clarity, avoiding the pitfalls of traditional AC filter/conditioners.
3. Extreme Voltage Shutdown (E.V.S.):
   • Trusted overvoltage circuitry protects against accidental high voltage connections, shutting off power until the condition is corrected.
4. Sequencing:
   • Capable of powering up a rack full of equipment in a 3-step delayed sequence, with a reversed sequence for power-down.
   • Initiate the sequence with momentary or maintained switches, locally or remotely.

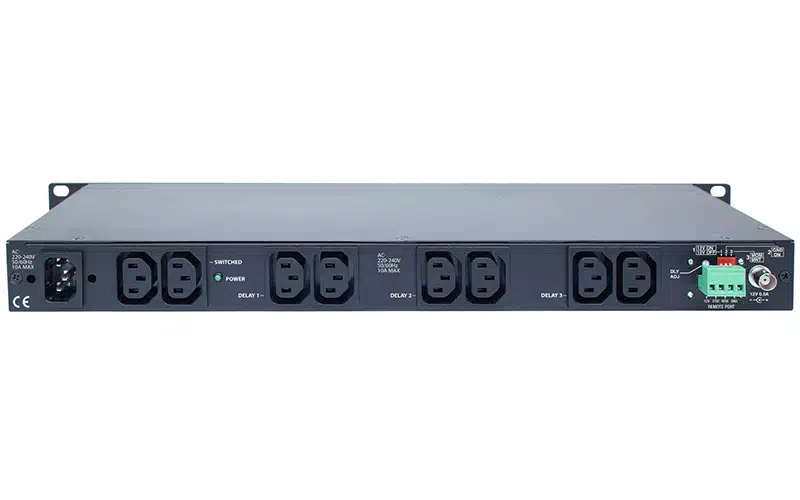

   • Six sequenced rear panel outlets (in 3 groups), two switched rear panel outlets, and one front panel switched outlet.
5. External Configuration and Lower Profile:
   • All settings and configurations are accessible on the rear panel.
   • External delay and remote interface configuration eliminates the need to remove the top cover for adjustments.
   • Lower profile depth for enhanced flexibility in rack placement and cable management.
6. Improved Switches:
   • Tactile black switch for “Start On/Off Sequence” enhances user experience.
   • Non-illuminated matte black power on/off switch for discreet aesthetics.

Specifications:

• Maximum AC Current Rating: 10 Amps, 220 – 240 VAC @ 50 – 60Hz (Thermal breaker)
• AC Cord: 1 mm² x 3, 2.5 m length, IEC-C13 (Female) to CEE-7/7 Schuko plug.
• AC Inlet: IEC-C14 (Male) with metal wire retainer clip
• AC Outlets:
  • Convenience Outlet (Front Panel): 1 Switched IEC C-13
  • Rear Panel Outlets: 2 Switched IEC C-13 (1 duplex), 6 Sequenced IEC C-13 (3 duplexes each controlled by separate relay)
• AC Surge Protection:
  • Spike Protection Mode: Line to neutral, zero ground leakage
  • Spike Clamping Voltage: 376VAC peak @ 6,000 Volts/3,000 Amps
  • Response Time: 1 nanosecond
  • Maximum Surge Current: 6,500 Amps
• AC Over-voltage Protection: EVS, 275VAC+/-5VAC
• AC Over-voltage Reset Modes: Auto
• Series Multi-Stage Protection
• AC Filtering: LiFT
  • Noise Attenuation: 10dB @10KHz, 40dB@100KHz, 50dB@500KHz

The Furman PS-8RE III is not just a power conditioner; it’s a comprehensive solution, delivering cutting-edge technologies for superior protection and performance. Trust Furman, the most widely recognized name in AC power conditioning, to safeguard your equipment and enhance your audio/video experience.
