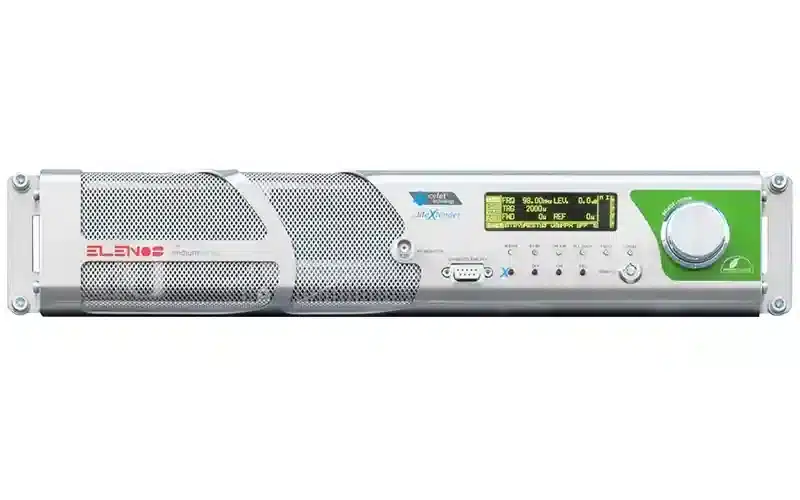

Elenos ETG2000

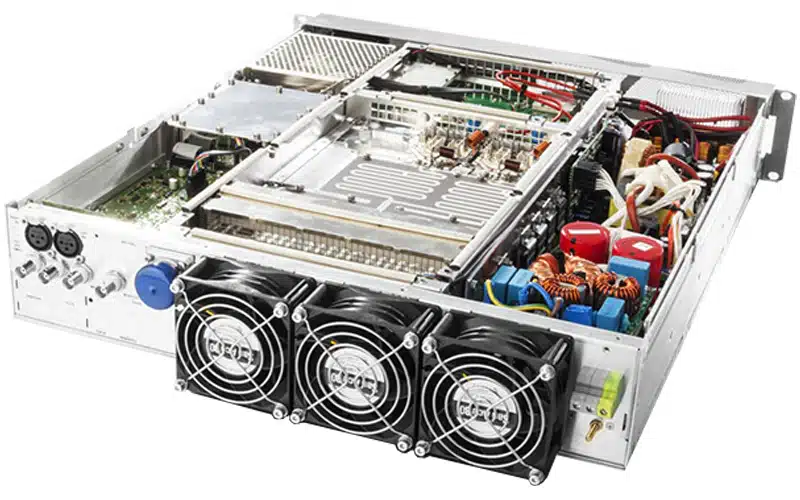

Elenos ETG2000 - Image 2

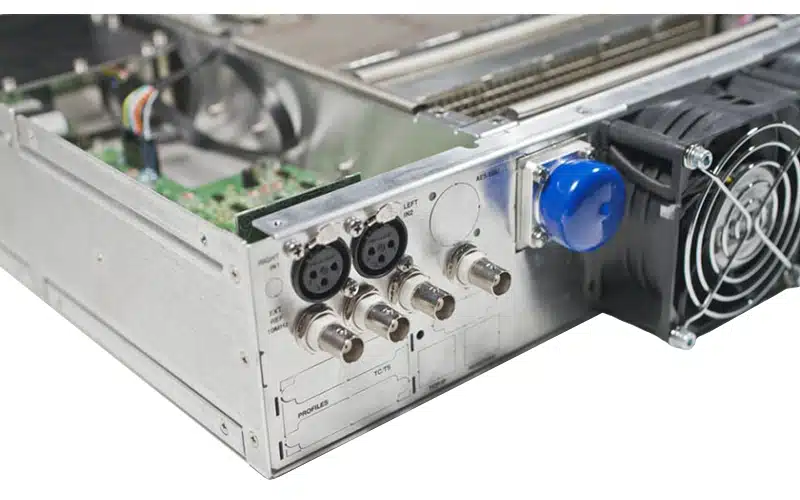

Elenos ETG2000 - Image 3
Elenos ETG2000 - Image 4

Elenos ETG2000

$ 13,636.44

2kW Stereo FM Transmitter

The Elenos ETG2000  transmitter combines ultra high efficiency, high reliability and low energy consumption in a sleek, 2RU high, compact rack mountable unit.

Elenos ETG2000
$ 13,636.44
ETG2000 + WEB/SNMP
$ 14,524.02
ETG2000 + WEB/SNMP+GSM
$ 15,423.13
ETG2000 + RDS
$ 14,662.34
SKU: 102277 Categories: , , Brand:Elenos

Description

Introducing the Elenos ETG2000 FM transmitter, the ultimate solution for FM broadcasting needs. With 2000 watts of pure power and a built-in stereo generator, this transmitter ensures crystal-clear, reliable transmissions every time. But what truly sets it apart is its energy efficiency.

Meet the Indium series, boasting an impressive 74% efficiency rate. This means substantial savings on electricity, operational, and cooling costs. By operating at lower temperatures, the transmitter’s lifespan is extended, providing both efficiency and durability.

Compactness and reliability define the Indium series’ 2U line. These transmitters are designed to be lightweight and compact, making installation a breeze and reducing transportation expenses. Plus, their high energy efficiency leads to significantly lower operating costs.

Thanks to Icefet technology and Lifextender algorithms, these transmitters offer exceptional reliability and performance even in the most challenging environments. Intelligent protocols adjust to environmental conditions, ensuring optimal power output while protecting equipment.

Moreover, the Indium series offers versatility. Models ranging from 150 to 500 watts can also operate with a 48VDC power supply, perfect for renewable energy sources like wind or solar power.

Performance is paramount with the Indium series. Its rapid boot-up time and resistance to water and high temperatures mean you’ll be on air within seconds, regardless of conditions. Plus, its smart functions and synaptic capabilities optimize performance, adapting to environmental nuances for peak RF operation and superior audio quality.

Compact yet powerful, these transmitters pack a punch in a small package. With exceptional stability and ease of maintenance thanks to planar technology, they ensure long-term operation and top-notch performance.

And when it comes to connectivity, it’s seamless. Remote control and management features enable users to monitor and control the transmitter from anywhere, via SMS, GPRS, TCP/IP, or SNMP. With the Elenos Indium series, efficiency, reliability, and performance are all perfectly balanced for your broadcasting needs.

Additional information

Weight13.2 kg
Dimensions59 × 49 × 9 cm
Color

Black

Product can be split into multiple boxes

0

Ship Separately

0

features

Features: High efficiency Extremely low-power consumption and reduced operating costs. Smart functions/synaptic functions Extraordinary performance level through the use of powerful operational algorithms and inter-module communications within the transmitter. These software algorithms adapt the transmitter to environmental conditions or to any connected device, preventing poor RF operation or diminished audio quality. Very compact size and condensed power Two rack units in height, with a weight of less than 14 kilograms (30.8 lbs), unmatched power versus volume and power versus weight ratio. Planar technology Exceptional stability, repeatability, reliability and ease of maintenance through the use of planar technology within the entire RF section (RF modules, combiners, splitter and low-pass filter). This allows for the minimization of internal connections and soldering, which increases the long term operation and performance. Connected everywhere The remote control and management features allow users to receive data and send instructions to the transmitter via several state-of-the-art communication channels — SMS, GPRS, TCP/IP and SNMP.

specification

GENERAL DATA Output Nominal Power 2000 W adjustable Operating band 87.5 ÷ 108 MHz </tr RS232/RS485 Yes. Connector DB9 female </tr Points of measure RF Sample – MPX Monitor </tr Displayed Parameters More than 50 parameters displayed on a wide graphic 0-LED screen </tr Adjustments From the frontal panel through OLED/from PC </tr Number of L-DMOS in amplifier stage 3 </tr RF power stage technology ICEFET & ECOSAVING </tr Dimensions: Rack units 2 RU </tr Dimensions: W – H – D 48.5 – 8.5 – 58.5 cm / 19.11 – 3.35 – 23.05 inches </tr Weight 13.2 Kg / 29.1 lbs </tr Number of cooling fans 3 </tr CONNECTORS RF Output 7/16” DIN Female MPX BNC Female LEFT & RIGHT XLR Female AES/EBU XLR Female AUX BNC Female Monitor/19 kHz BNC Female RF PERFORMANCE Output impedance 50 Ω Automatic power RF control Stabilizes the output power value to the Target power level selected Overall output power RF stability +/- 0, 1 dB VSWR 2:1 at full power. Automatic power reduction beyond 1.7:1. Transmitter is protected fro open and short circuit. Harmonics < -75 dBc Out of band emission (spurious) < -80 dBc AUDIO PERFORMANCE MPX input level +15/-10 dBu for 75 KHz standard deviation MPX level adjustment Soft adjust 0.1 dB steps from front panel MPX input impedance 5 KΩ selectable L/R input level +15/-10 dBu for 75 KHz standard deviation L/R level adjustment Soft adjust 0.1 dBu steps from front panel L/R Input Impedance Selectable 10 K – 600 Ω, balanced AES/EBU input resolution 24 bits AES/EBU input sample rate 32, 44.1, 48, 96 KHz Automatically selected AES/EBU input level -20 dBFS – 0 dBFS AES/EBU input impedance 110 Ω balanced AES/EBU-Analog input automatic changeover Yes PILOT Amplitude adjustment Soft adjust 0.05% steps from front panel PILOT Phase adjustment Soft adjust 0.01 degree steps from front panel PILOT tone frequency 19 KHz PILOT tone deviation Soft adjust +/- 7.5 KHz PILOT tone frequency stability +/- 1 Hz THD+N (stereo/mono operation) < 0.05% with 75 KHz frequency deviation < 0.05% with 100 KHz frequency deviation 30 Hz to 15 KHz Pre-emphasis 0/25/50/75 microseconds, selectable Pre-emphasis tolerance +/- 0.1 dB FM S/N (MPX operation) 82 dB 20 Hz to 23 KHz @ 53 KHz – detector RMS FM S/N CCIR (stereo/mono operation) > = 72 dB weighted > = 72 dB unweighted 400 Hz, 75 KHz frequency deviation, quasi-peak detector, 50 us de-emphasis Asynchronous AM S/N unweighted > = 55 dB a 400 Hz, 75 us de-emphasis Synchronous AM S/N > = 50 dB a 400 Hz, 75 us de-emphasis Amplitude-frequency characteristic (stereo/mono operation) +/- 0.1 dB (without pre-emphasis) +/- 0.1 dB (with pre-emphasis) 20 Hz to 15 KHz, @ 400 Hz Stereo Crosstalk (typical) 60 dB @ 400 Hz to 10 KHz Linear crosstalk >60 db 20 Hz to 15 KHz Intermodulation distortion <0.05% Measured with two of tones 1 KHz & 1.3 KHz, ratio 1:1 at 100% modulation Class of emission F3 Stereo emission According to ITU-R reccomendation 450 (pilot tone) EXCITER PERFORMANCE PLL lock time = 70% Power factor > 0.95 COOLING/NOISE/DATA Cooling system Forced air-cooling Acoustic noise < 65 phone @ transmitter room, 2 M distance from the front of the transmitter ENVIRONMENT Temperature range (operating) -5 ÷ +45 °C, 23 ÷ 113 °F Temperature range (non operating) -20 ÷ +55 °C, -4 ÷ 131 °F Humidity range (operating) 95% @ 40 °C, 104 °F Humidity range (non operating) 90% @ 55 °C, 131 °F Altitude range (operating) <3000 meters / <9840 Feet Altitude range (non operating) <15000 meters / < 49200 Feet TELECONTROL & TELEMETRY Remote control Yes Remote control, dry contacts Yes SNMP option Yes (external)
