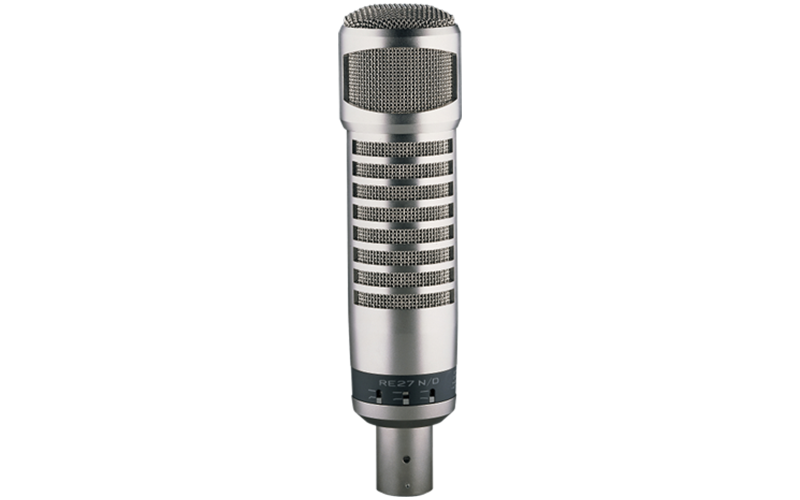

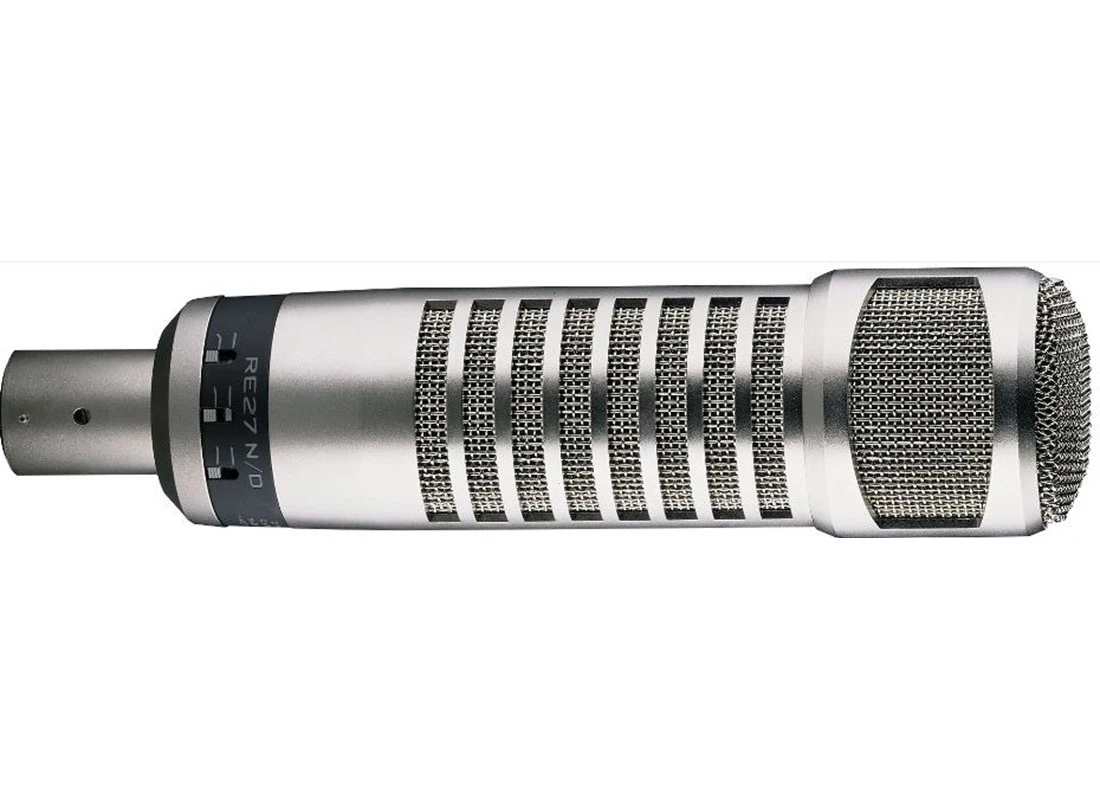

Electro-Voice RE27N/D – Dynamic Cardioid Broadcast Microphone

Electro-Voice RE27ND is a dynamic cardioid broadcast microphone with a neodymium element, Variable-D proximity control, three voice-shaping filter switches and integral wind and blast filtering.

Electro-Voice RE27ND – Dynamic Cardioid Broadcast Microphone combines a neodymium-equipped dynamic element with Variable-D proximity control for broadcast presentation, podcasting, voice-over and instrument recording. Its cardioid pickup pattern, extended high-frequency response and selectable tonal contours support a wide range of production applications.

Variable-D Proximity Control

The Variable-D acoustic design minimises the bass buildup associated with close microphone placement. It helps maintain tonal consistency as a presenter changes working distance, while the microphone retains a cardioid pickup pattern. Appropriate positioning remains important for voice balance and control of unwanted room sound.

Neodymium Dynamic Element

Electro-Voice RE27ND uses a neodymium-alloy magnet and reinforced diaphragm dome to provide high output and detailed transient reproduction. Its published frequency response extends from 45 Hz to 20 kHz. The passive dynamic design requires no external power and connects through a balanced three-pin XLR output.

Three Voice-Shaping Filter Switches

Three recessed slide switches adjust the microphone’s response. Two low-frequency contours provide different degrees of bass shaping, while a high-frequency control reduces the upper-frequency rise. These controls adapt the tonal balance to the source; they do not change the polar pattern or function as an input pad.

Integrated Noise-Control Features

A humbucking coil helps reject magnetically induced hum. Integral wind and blast filters reduce breath noise, with the internal assembly also supporting isolation of the transducer. The steel body has a satin-nickel finish. The engineering sheet lists an 81715 stand clamp; confirm the current package. The compatible 309A external isolation mount is optional.

Basic Specifications

  • Factory model: RE27N/D.
  • Element: dynamic N/Dym magnet structure.
  • Polar pattern: cardioid.
  • Published response: 45 Hz–20 kHz.
  • Controls: two bass contours and one treble contour.
  • Nominal impedance: 150 ohms, balanced.
  • Connection: three-pin XLR.
  • Power: passive; no external supply required.
  • Construction: steel, satin nickel.
  • Length: 216.7 mm.
  • Maximum diameter: 54.4 mm.
  • Net weight: 709 g without cable.
