Eddystone S7608

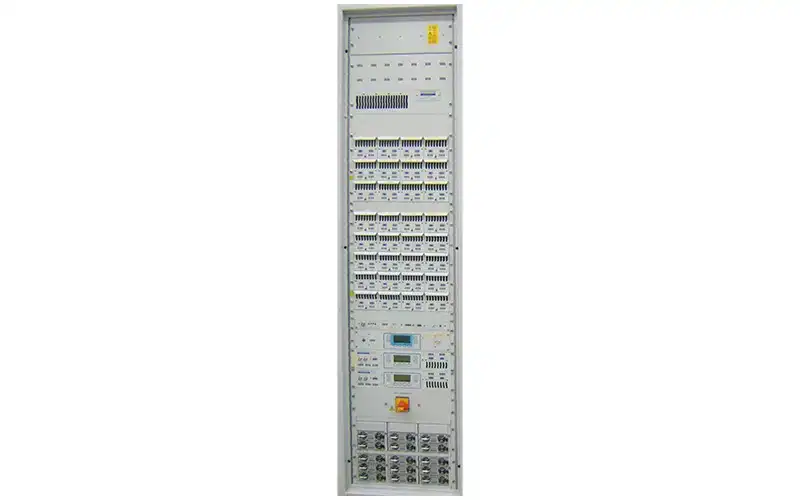

Eddystone S7608 FM Transmitter – Unleash 8kW of Broadcasting Power

Discover the Eddystone S7608 FM transmitter, your gateway to high-power broadcasting. With 300W hot-pluggable Power Amplifier modules, this transmitter offers seamless amplifier replacement with minimal power loss during live broadcasts.

Key Features:

• Modular Excellence: The S7608 features 300W hot-pluggable Power Amplifier modules, ensuring straightforward amplifier replacement while minimizing power reduction.
• Patented Combining System: Featuring Eddystone’s patented N way RF power combining system, this transmitter achieves unmatched performance.
• Industry Compliance: Fully compliant with ETS 300 384 specifications, guaranteeing adherence to the highest broadcasting standards.
• Versatile Configuration: Easily integrates into a wide range of system architectures, offering unparalleled flexibility in your broadcasting setup.
• Efficient Power Supply: The design incorporates highly efficient hot-pluggable switched mode power supplies with power factor correction (PF), simplifying servicing and enhancing performance.
• Remote Control and Monitoring: Enjoy comprehensive remote control and monitoring facilities, empowering you to manage your broadcast seamlessly.
• User-Friendly LCD: The LCD ensures easy local monitoring, making operation a breeze.

System Overview: The drive input is directed to dual 16-way splitters, providing the PA module input drive. Each E2021 Power amplifier utilizes dual packaged MOSFETs, mounted on a substantial heatsink assembly to optimize airflow over RF components. DC power is supplied to the RF modules from 16 switched mode power supplies. Individual E2021 power amplifier modules feature internal control and self-protection mechanisms, including safeguards for reverse power, excess current, or over-temperature conditions. All monitoring data is microprocessor-derived. Self-contained redundant cooling fans are mounted on the rear of the transmitter, offering reliable temperature control. The cooling system is ductable, providing adaptability to specific requirements.

Cooling Systems: Eddystone Broadcast’s low-power transmitters are equipped with self-contained redundant cooling fans mounted on the transmitter’s rear. The cooling system is ductable for customized needs.

Specifications:

• Power Output: 8kW (Adjustable to -6dB)
• Operating Frequency: 87.5 to 108 MHz
• RF Output Load Impedance: 50 ohm unbalanced
• RF Output Connector: 1-5/8” EIA
• Maximum VSWR: Capable of maintaining full power at 1.9:1
• Mains Power Supply: Three phase & neutral, 380-440V. Other supply options available.
• RF Harmonic Output: Better than or equal to –86dBc
• Power Factor: Typically 99%
• Ambient Temperature Range: -20ºC to +55ºC at an altitude of up to 3000M

The Eddystone S7608 FM Transmitter leads the way in broadcasting excellence, offering unbeatable power and reliability. Whether you’re a seasoned broadcaster or part of a network, this transmitter ensures your message is heard loud and clear.
