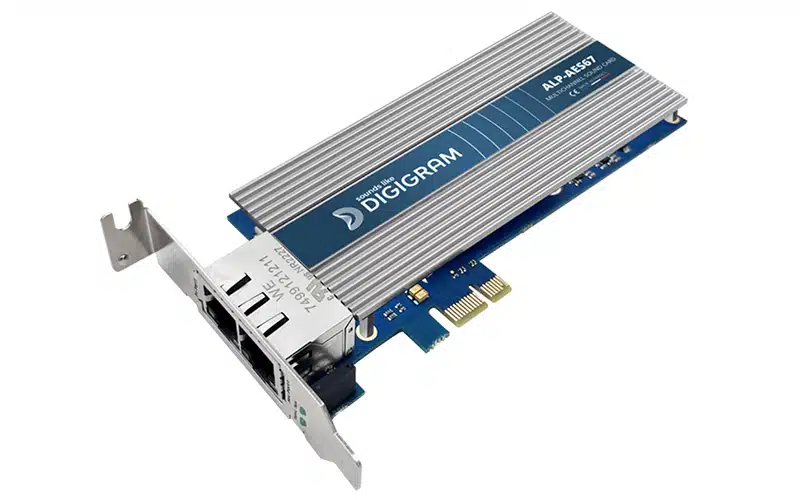

Digigram ALP-AES67

The Digigram ALP-AES67  is the newest addition to the ALP-X range of audio interface and redefines versatility and opens new possibilities: ALP-AES67 works with SMPTE ST-2110 and Ravenna for an enlarged scope of applications where audio is at stake. It features a low-profile form-factor that accommodates most PCs and servers. ALP-AES67 also features a fanless design to save on consumption and increase sustainability.

The card’s connectivity, combined with 64 channels of playback and 64 recording channels to/from an AES-67, Ravenna or SMPTE ST-2110 network, opens new possibilities to work under a larger range of audio protocols and deploy broader networks.

Now a classic with Digigram audio interfaces, ALP-AES67 operates under Windows or Linux environments. Built on the same reliable, robust and stable architecture as all ALP cards, ALP-AES67 guarantees sub-millisecond round trip latency and seamlessly integrates AoIP networks.  Used with ALP-X Manager, Digigram’s unified control panel for the whole ALP range, ALP-AES67 works wonders with applications where critical audio is paramount :  in broadcast, public safety, medical, and transportation.

SPECIFICATIONS

Switch mode (the 4 ports are identical)Network connectivity

• Configuration with two network ports

2 x Gbps Eth ports that can be used in redundancy mode (Pri, Sec), or in switching mode (Pri, Switch)

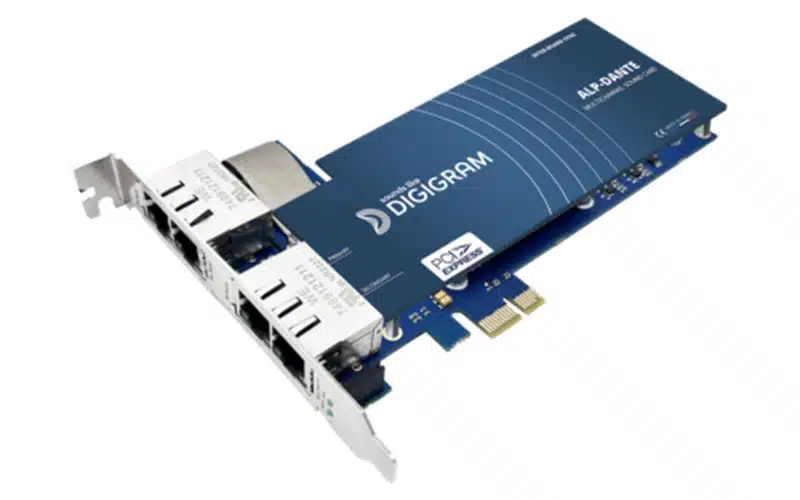

• Configuration with four network ports

4 Eth ports on the full-height bracket, or 2 Eth ports on each low-profile bracket

• • Switch mode (the 4 ports are identical)
  • ST 2022-7 mode: 2 pairs of redundant ports

Input and output channels

• 64 x 64 channels at 44.1kHz and 48 kHz
• 32 x 32 channels at 88.2 kHz and 96 kHz
• 16 x 16 channels at 176.4 kHz and 192 kHz

Audio flows

• Maximum 64 input and 64 output streams

Buffering

• Up to 2000 samples per channel (41.7ms at 48 kHz)

AoIP compatibility

• AES67, Ravenna
• SMPTE ST 2110-30 Level A,B, C
• SMPTE ST 2022-7 (Class A,B,C,D)
• SAP for streams announcement for compatibility with Dante products set to AES67 mode

Sample format

• PCM 16, 24, 32 bits

Management

• WEB GUI, Aneman & MTDiscovery (Merging Technologies)
• NMOS IS=04 & IS=05

(Discovery & Registration, Connection management)

Firmware update

Via the application AVS-Monitor (available from the Auvitran WEB site)
