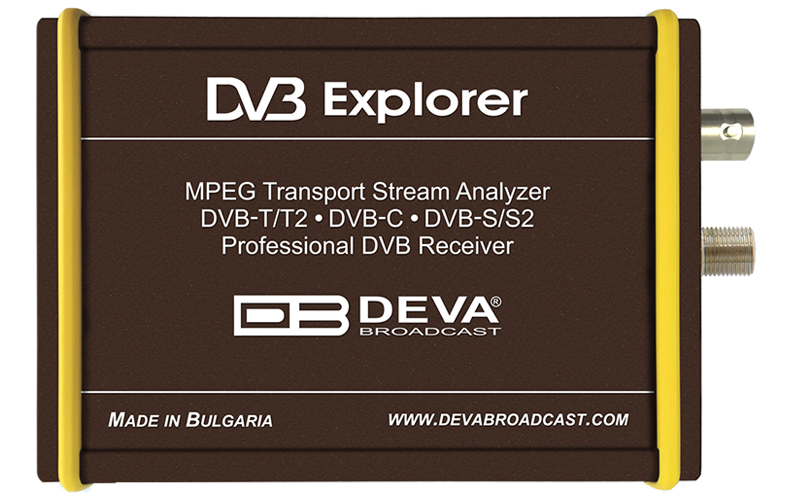

The DEVA DVB Explorer is an advanced multi-standard analyzer for DVB-T/T2/C/S/S2 monitoring with real-time transport-stream analysis and remote access.
$ 1,842.44
The DEVA DVB Explorer is an advanced DVB-T/T2/C/S/S2 analyzer developed for comprehensive digital television signal monitoring and transport-stream analysis. Designed for professional broadcast engineers, it delivers real-time signal evaluation, error detection, and system diagnostics across terrestrial, cable, and satellite DVB platforms.
Built on DEVA’s high-precision DSP core, the DVB Explorer ensures accurate measurement of all key broadcast parameters including MER, BER, SNR, signal power, and constellation data. The intuitive web interface allows users to visualize transport-stream structure, decode service information, and perform PID analysis for each DVB multiplex.
The unit supports remote connectivity through a secure IP interface, enabling engineers to access detailed data, stream metrics, and alarms from anywhere. Its alarm system can send automated notifications via SNMP, email, or web triggers, ensuring immediate awareness of signal loss or degradation.
Compact, energy-efficient, and built for continuous 24/7 operation, the DEVA DVB Explorer is the ideal choice for broadcast monitoring centers, network operators, and regulatory bodies who demand precision and reliability in DVB supervision.
Key Features
Multi-standard DVB-T/T2/C/S/S2 reception and analysis
Real-time MER, BER, SNR, and constellation display
Transport-stream decoding with service and PID analysis
Web-based interface with intuitive monitoring tools
SNMP, email, and web alarms for instant alerts
High-performance DSP-based demodulation
Compact 1U design for rackmount installation
24/7 operation with fanless cooling system
Technical Specifications
Supported Standards: DVB-T/T2, DVB-C, DVB-S/S2
Frequency Range: 50 MHz – 2.4 GHz (depending on mode)
Interfaces: RF input, Ethernet RJ45, USB service port
Output Data: Transport Stream, IP monitoring
Measurements: MER, BER, SNR, power, constellation
Power Supply: 100 – 240 V AC or 12 V DC
Dimensions: 483 × 44 × 250 mm (1U)
Weight: ≈ 2 kg
