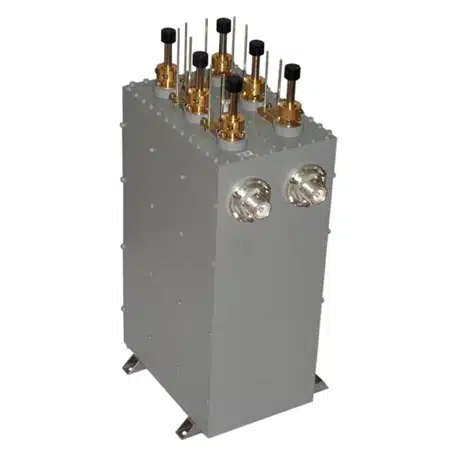

Delta Meccanica 1660-6 – 250W DAB/DMB Bandpass Filter

Delta Meccanica 1660-6 is a 250W DAB/DMB bandpass filter with six cross-coupled cavities, a 170–240 MHz tuning range, 1.54 MHz bandwidth and DIN 7/16 connections.

Delta Meccanica 1660-6 – 250W DAB/DMB Bandpass Filter provides channel-selective RF filtering for digital broadcast transmission. Its six-cavity design incorporates cross coupling, with a maximum input power rating of 250 W and a published tuning range of 170–240 MHz. Specify the required operating block or centre frequency when ordering.

Six-Cavity DAB/DMB Filtering

The filter has a 1.54 MHz channel bandwidth. The 170–240 MHz specification describes its tuning range, not a passband covering the entire band simultaneously. Published attenuation figures define performance at specific offsets from the tuned centre frequency, supporting assessment against the intended transmitter installation.

Defined Passband and Rejection Performance

Delta Meccanica 1660-6 specifies insertion loss below 1.3 dB at the centre frequency and below 2.9 dB at offsets of ±0.77 MHz. Attenuation exceeds 15 dB at ±0.97 MHz, 40 dB at ±1.77 MHz, 45 dB at ±2.2 MHz and 55 dB at ±3 MHz. Maximum amplitude variation is 1.6 dB.

50-Ohm RF Connections

DIN 7/16 connections provide the interface to a 50-ohm transmission system. Published return loss exceeds 22 dB, with a typical figure above 24 dB. Maximum group-delay variation is 850 ns. Confirm connector gender, cable compatibility and the required acceptance measurements before installation.

Installation and Operating Requirements

The Delta Meccanica 1660-6 published enclosure measures 217 × 295 × 610 mm, expressed as width × depth × height, and weighs 19 kg. The specified temperature range is −10 to +50 °C. Confirm mounting orientation, mechanical support, ventilation and applicable power-rating conditions with the supplier. Final transmitter compliance should be verified for the complete installed system.

Basic Specifications

  • Factory model: 1660-6.
  • Application: DAB/DMB RF bandpass filtering.
  • Construction: six cavities with cross coupling.
  • Maximum input power: 250 W.
  • Tuning range: 170–240 MHz.
  • Channel bandwidth: 1.54 MHz.
  • Centre-frequency insertion loss: less than 1.3 dB.
  • Impedance: 50 ohms.
  • Connections: DIN 7/16.
  • Temperature range: −10 to +50 °C.
  • Dimensions: 217 × 295 × 610 mm.
  • Net weight: 19 kg.
