DB Broadcast KFG 100 – 100 Watt FM Amplifier

Product Overview

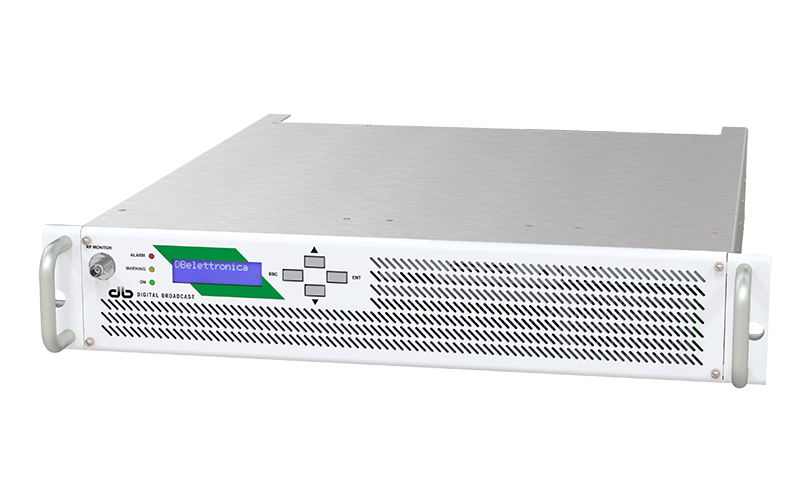

The DB KFG 100 is a 100W FM power amplifier from the KFG series, designed to cover the entire 87.5–108MHz broadcast band with excellent efficiency and long-term reliability. GREEN RF™ architecture combined with patented COLD-FET™ devices delivers RF efficiency figures above 70%, cutting heat and AC consumption compared with conventional amplifiers at the same output power. Housed in a 19″ 2U chassis, the DB KFG 100 works as a stand-alone 100W amplifier, as the RF stage in compact transmitters, or as a building block in larger modular systems.

DB KFG 100 Key Features

• • 100W FM amplifier covering 87.5–108MHz with fine frequency steps and 50 Ω output impedance on an N-type connector.

• • GREEN RF™ and COLD-FET™ technology for RF efficiency above 70%, reduced junction temperature and lower mains power draw.

• • Designed for continuous 24/7 service with power stability better than 2% under ALC control at rated conditions.

• • Intelligent protection circuitry that smoothly reduces RF power instead of shutting down during high VSWR, over-temperature, cooling failure or PSU faults.

• • Forced-air cooling with oversized heatsinks and externally mounted redundant fans to extend transistor life and simplify maintenance.

• • Optional liquid-cooling kit with large heat exchanger and redundant pumps for harsh, high-temperature or space-constrained transmitter rooms.

• • AAD anti-corrosion design using anticorodal aluminium, ducted airflow and tropicalised PCBs to withstand salt, humidity and dust.

• • Wide AC input options (typically 115/230 VAC single-phase or 230/380 VAC three-phase depending on configuration) with power factor above 0.9.

• • Standard 19″ x 2U rack format for easy integration in existing racks or multi-amplifier KFG NEXT systems.

Applications

Use the DB KFG 100 as the RF amplifier stage in 100W FM transmitters, as a driver for higher-power systems or as a standalone booster for coverage fill-in sites. Thanks to its high efficiency, robust protection and corrosion-resistant construction, the DB KFG 100 suits main stations, translators and demanding outdoor or coastal installations where long-term reliability is essential.

Pair the DB KFG 100 with compatible FM exciters from our FM Transmitters category to create scalable systems starting from 100W. For additional infrastructure such as Cavity Filters and Antennas, visit our Antenna category page.
