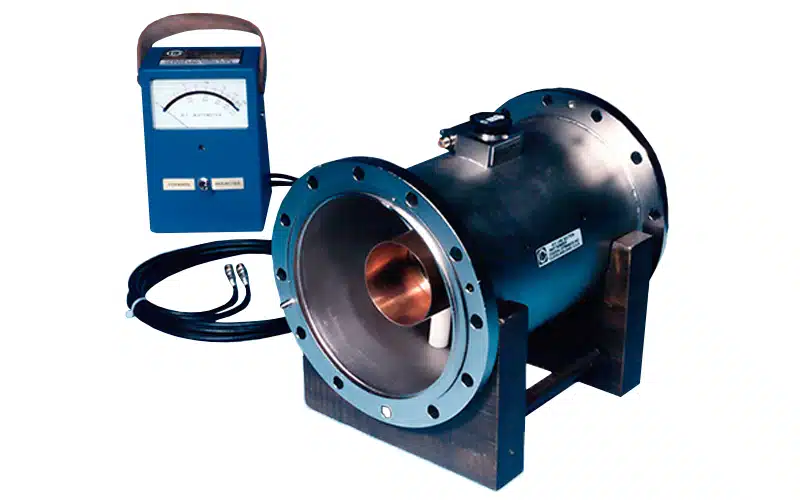

The Coaxial Dynamics 81600-A series of High-Power Directional RF Wattmeters is designed to measure RF power in 50-Ohm 6-1/8″ coaxial transmission lines. Here are the key features, specifications, and available models:
Features:
- Measurement Range:
- Power Range: 2500 W to 100 kW.
- Frequency Range: 50 MHz to 1000 MHz.
- Meter Display:
- 4-1/2″ triple scale meter with a mirrored scale for easy reading.
- Shock-mounted “taut band” meter with a mirror-backed scale for reliable and accurate readings.
- Easy to Use:
- Connects between the transmitter and antenna or dummy load.
- Plug in the appropriate measuring element for direct display of RF power.
- External Line Section can be used up to 200 feet from the meter with attached DC cables (10-foot cable normally supplied).
- Accuracy:
- ±5% of full scale accuracy ensures precise measurements.
- Rugged Design:
- Rugged, shock-proof housing for protection.
- Superior taut band technology for reliability.
- Meets US Navy and Canadian standards for bounce and vibration.
- Storage Convenience:
- Two sockets on the back of the unit for storage of additional measuring elements.
- Variety of Models:
- Available with either 5/10/25 scales or 15/30/60 scales.
- Different models with various line section configurations (EIA Flanged, Unflanged Flush, Dual Socket, Recessed) to suit different setups.
- Warranty:
- Coaxial Dynamics provides a Two-Year Limited Warranty, ensuring quality and dependability.
Specifications:
- Impedance: 50-Ohms
- Case Finish: Textured Blue Polyurethane Enamel
- Line Section Finish: Bright Silver Plate
- Dimensions (H x W x D – Meter only): 7.3 in x 5 in x 4 in (18.5 cm x 12.7 cm x 10.2 cm)
- Weight (Meter only): 2.5 lbs. (1.13 kg)
