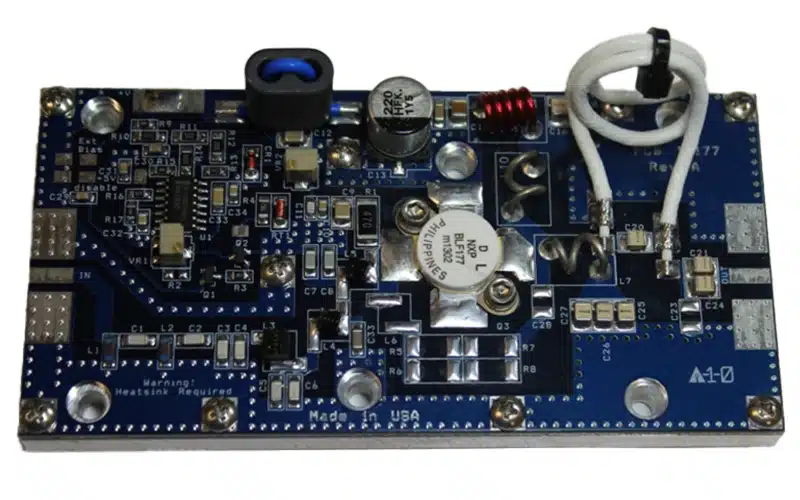

Optimize FM Transmission with Broadcast Concepts P155FM17 – 150W FM Power Amplifier Module
Maximize the effectiveness of your FM radio transmitter system using the P155FM17 Power Amplifier Module by Broadcast Concepts. Tailored as a pivotal component for FM broadcasting, this module effortlessly integrates into your system.
Key Component Features:
- Model: P155FM17
- Transistor: Original NXP/Ampleon BLF177 MOSFET
- Frequency Range: 86 – 110MHz
- Dimensions: 2.25 x 4.50 inches
- Impedance: 50 ohms
- Power Output (Pout): 150W minimum; 165W typical
- Gain: 17dB at 150W
- Class: B
- Power Supply: 48Vdc at 5.0 amps maximum
Integrated Design Highlights:
- Specifically crafted for FM radio transmitters with broadband matching and the renowned BLF177 MOSFET transistor.
- Compact dimensions (2.25 x 4.50 inches) for seamless integration into your transmitter system.
- No bias adjustments or RF circuit tuning required, ensuring hassle-free installation and operation.
Technical Resources for Seamless Integration:
- Download DXF files for baseplate, RF, and power drawings to facilitate precise mechanical integration.
- Access the detailed pallet datasheet in PDF format, providing comprehensive technical insights.
- Explore RF Output vs. RF Input, DC current & efficiency charts for fine-tuning and optimization.
Efficient Power Delivery for Improved SEO Ranking:
- Operates efficiently within the Class B category, contributing to enhanced SEO performance.
- Requires 48Vdc at a maximum of 5.0 amps, striking a balance between power and performance.
Seamless Integration into Transmitter Systems for Top SEO Results:
- Strategically designed as a pivotal component for FM transmitter systems.
- Ideal for broadcasters aiming for high-performance amplification without the complexities of bias adjustments or tuning.
Elevate your FM broadcasting system with the P155FM17 Power Amplifier Module from Broadcast Concepts.
